0-10V PIR Motion Sensor - Fixture Mount - 360° Detection - 120-277 VAC

Part Number: BRI819P-B-D
Manufacturer Part Number:
$27.99 ea.
In Stock
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Adjust settings with integral DIP switch
  • Maximize efficiency and energy savings
  • 360° detection in high bay locations
  • Pair with Extender Bracket (sold separately) to give better detection access
View more details
2 Years
2 Years
2 Years
2 Years
UL Listed
UL Listed
UL Listed
UL Listed

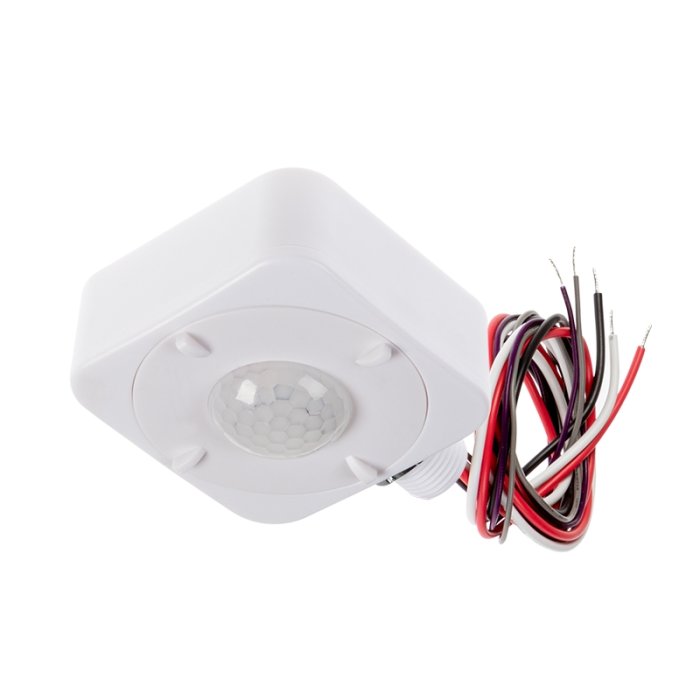

BRI819 series Motion Sensor dims and turns lights ON/OFF based on occupancy detection. Mount to a high bay to control a single light, or mount to a central junction box to control multiple lights from one sensor. Maximize efficiency, lower energy costs, and reduce maintenance in commercial and industrial locations with passive infrared occupancy sensor. Suitable for use in high bay areas such as distribution centers and manufacturing areas.
Product Details:
  • Max mounting height: 40’
  • Max detection radius: 30’
  • 75° x 360° detection angle
  • 120-277 VAC
  • Operating temperature: -40°–158° F (-40°–70° C)
  • 2 year warranty
Dimensional Drawings
Ambient Operating Temperature -40 to 75 °C (-40 to 167 °F)
Certifications/Compliance Click for more information about this specification UL Listed
Detection Range 30 ft (9.1 m)
Dimmer Type Click for more information about this specification 0-10V
Finish White
Input Connection Type Pigtail
IP Rating Click for more information about this specification IP20
UL File Number E484113
Voltage 120-277 VAC
Warranty 2 Year
Water Resistance Click for more information about this specification Indoor Only
