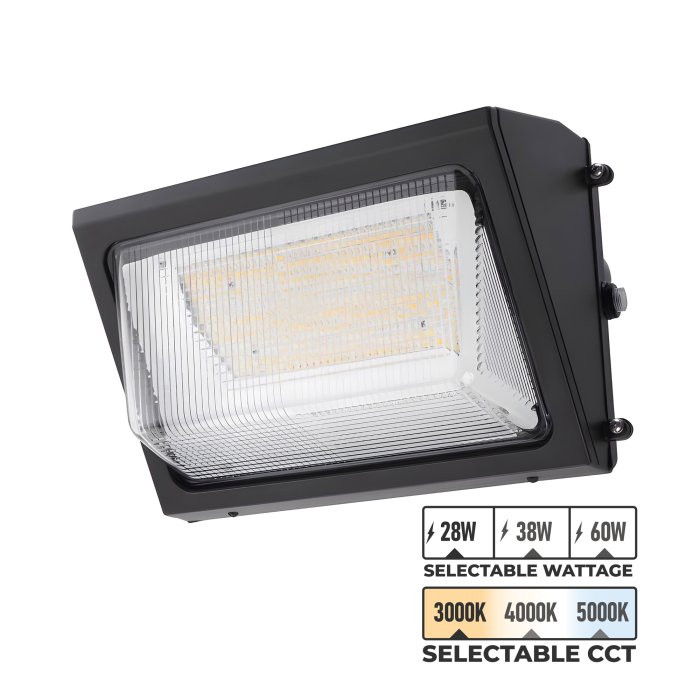

Stonco 60W LED DualSelect Wall Pack - Bypassable Photocell - Selectable Wattage and CCT - 250W MH Equivalent - Up to 8,160 Lumens
Part Number:
190096131334
Manufacturer Part Number:
WP60-SCT-G2-10-BZ, 911401872381
$136.99
ea.
Was
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Durable die-cast aluminum housing with a non-yellowing borosilicate glass lens
- Intergrated bypassable photocell for dusk-to-dawn operation
- Selectable Wattage: 28W, 40W, 60W
- Selectable CCT: 3000K, 4000K, 5000K
- Equivalent to a 250W metal halide fixture
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The 60W Stonco LED DualSelect Wall Pack is a compact, versatile solution for replacing 250W metal-halide fixtures with enhanced efficiency. It features a durable bronze, die-cast aluminum housing and a borosilicate glass lens, delivering up to 8,160 lumens at 145 lm/W. With selectable wattage and color temperature, plus an integrated, bypassable photocell for dusk-to-dawn operation, this wall pack offers customizable lighting for various environments. Its IP65 rating ensures reliable use in both indoor and outdoor settings, with a weatherproof seal that protects against water, dust, and insects. Installation is simple with surface mounting to existing junction boxes.
Product Details:
- Bronze, die-cast aluminum housing and borosilicate glass lens
- 250W metal-halide equivalent
- Integrated, bypassable photocell
- 120 - 347 VAC
- UL Listed
- DLC 5.1 Standard
- 5-year warranty
Documents
190096131334 WP60 Specification Sheet
190096131334 WP60-SCT-G2-10-BZ Selectable Wattage-60W Selectable CCT-3000K IES Applications:
- Building Exteriors and Facades
- Commercial Buildings
- Commercial Lighting
- Gas Stations
- Industrial Facilities
- Parking Garages
- Parking Lots
- Security Lighting
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -40 to 40 °C (-40 to 104 °F) |
|---|---|
| Brand | Stonco |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, UL Listed (cULus) |
|
CRI
CRI
|
70+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
230/330/500 mA @ 120 VAC, 100/140/210 mA @ 277 VAC |
| DLC Product ID | PLS3A95FM210 |
| Efficacy | 145 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 250 Watt Metal Halide |
| Finish | Bronze |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 4 kV |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Prismatic |
| Lens Type | Glass |
| Lumens | 4060 Lumens, 5720 Lumens, 8160 Lumens |
| Manufacturer Part Number | WP60-SCT-G2-10-BZ, 911401872381 |
| Operating Voltage | 120-347 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
Integrated Photocell (Bypassable) |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Glass Lens |
| Product Weight | 7.7 lb (3.5 kg) |
| Warranty | 5 Year |
| Wattage | 20 Watts, 40 Watts, 60 Watts |
