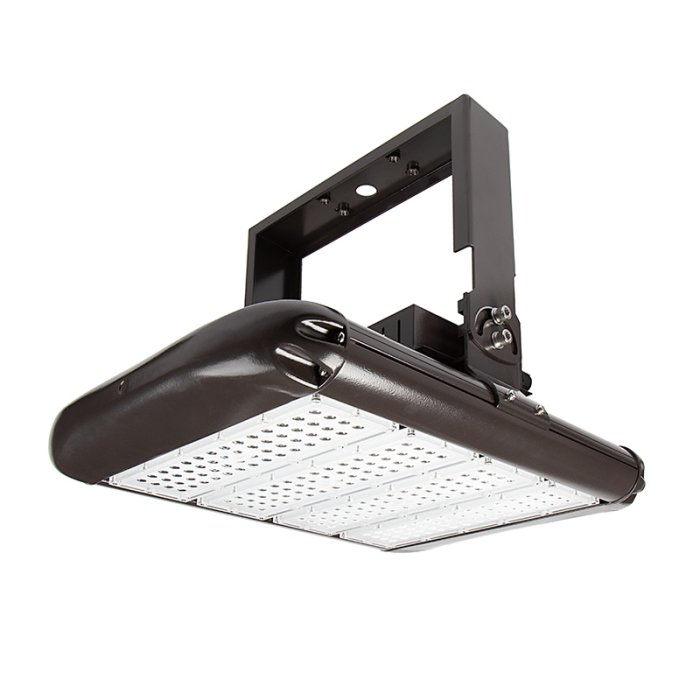

300W LED High Power Area Flood Light - 1,000W MH Equivalent - 42,000 Lumens - 5000K - Type V Distribution
Part Number:
HPAL2-50K300-90
Manufacturer Part Number:
$399.99
ea.
Was
| Quantity | |
|---|---|
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Type V-VS light distribution
- Heatsink provides superior thermal management
- Yoke bracket included
- Multiple mounting options available
- DLC 5.1 Premium
- Wattage options: 150W, 200W, 240W, and 450W
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Overview
The 300W LED High Power Area Flood Light delivers 42,000 lumens of 5000K light, ideal for large commercial and industrial spaces. Its precision optics offer a wide Type V beam for uniform illumination, while independent modular LED engines and drivers enhance thermal management for a longer lifespan. This fixture is a direct replacement for 1,000W metal halide luminaires, providing significant energy savings. It includes a durable steel yoke mount and offers versatile installation options with additional mounting accessories available.
Product Details:
- Aluminum housing
- Impact-resistant polycarbonate lens
- IP66 rated
- 90° beam - Type V
- Includes steel yoke bracket and driver cover
- 6 kV (L-N),10 kV (L/N-GND) integrated surge protection
- IK10 impact resistance
- 70+ CRI
- 5000K
- 100-277 VAC
- DLC 5.1 Premium, ETL Listed
- 5-year warranty
Documents
HPAL2-50K300-90 IES File
HPAL2-50K300-90 Photometric Data Sheet Applications:
- Alleyways
- Area Lighting
- Building Exteriors and Facades
- Car Dealerships
- Construction Sites
- Parking Lots
- Pathways
- Sports Complexes
- Street Lights
- Warehouses
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -30~+45 °C (-22~+113 °F) |
|---|---|
| Beam Angle | 90° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.1 A @ 277 VAC, 2.5 A @ 120 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
1-10V |
|
Distribution Type
Distribution Type
|
Type V |
| Efficacy | 140 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 1000 Watt Metal Halide |
| Finish | Bronze |
| Impact Resistance | IK10 |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV (L-N), 10 kV (L/N-GND) |
|
IP Rating
IP Rating
|
IP66 |
| LED Color | Cool White |
| Rated Life (L70) | 100000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 42000 Lumens |
| Mount Type | Yoke Bracket |
| Operating Voltage | 100-277 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
No Photocell |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens, Steel Bracket, Steel Driver Compartment |
| Product Weight | 22.1 lb (10.0 kg) |
| Warranty | 5 Year |
| Wattage | 300 Watts |
