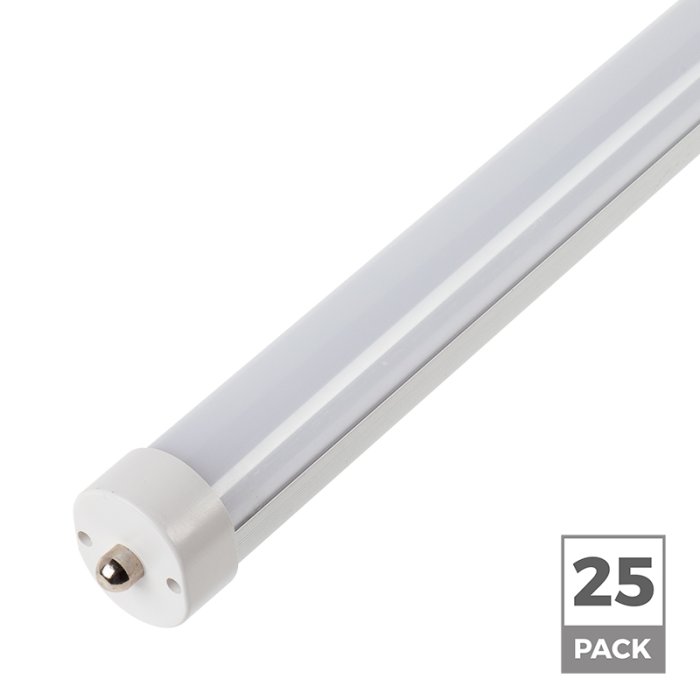

8ft 36W T8/T12 LED Tube - 4320 Lumens - Ballast Bypass Type B - 59W Equivalent - 5000K - 25 Pack
| Quantity | |
|---|---|
Features
- Ballast bypass LED tube (UL Type B)
- Also available in 48W
- One continuous 8ft light
- Replaces 59W T8 and 75W T12 fluorescent tubes
- 4320 lumen @ high efficacy 120 lm/W
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Overview
- 110–277 VAC input
- Single pin FA8 base
- -4°–140° F (-20°–60° C) operating temperature range
- Rated for open or enclosed fixtures
- Frosted polycarbonate lens
- 5000K color temperature
- 50,000 hour (L70) rated life
- UL Classified in compliance with UL 1598C
- Rated for dry/damp locations (IP20)
- 5-year warranty
T8B-xKxW-8 User Manual - Hallways
- Industrial Facilities
- Retail Shops
- Rural Buildings
- Schools
- Warehouses
Specifications
| Ambient Operating Temperature | -20~+60 °C (-4~+140 °F) |
|---|---|
| Ballast Compatibility | Type B (Ballast Bypass) |
| Base Type | FA8 (Single Pin) |
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
| Bulb Type | T8, T12 |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
UL Classified |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
130 mA @ 277 VAC, 300 mA @ 120 VAC |
| Efficacy | 120 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 59 W Fluorescent |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| LED Tube Wiring | Dual Ended |
| Length | 96 in. (8 ft) |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Lumens | 4320 Lumens |
| Operating Voltage | 110-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polycarbonate |
| UL File Number | E348221 |
| Warranty | 5 Year |
| Wattage | 36 Watts |
