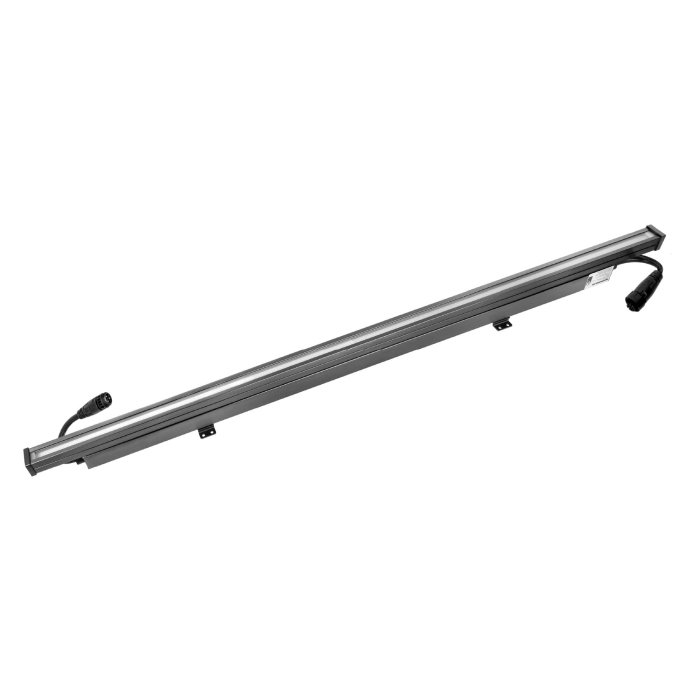

Linear LED Wall Washer - 48" - 20W - Up To 1,600 Lumens - 120-277 VAC - 3000K / 4000K / 5000K
Part Number:
WW-xK20-3085S
Manufacturer Part Number:
$249.99
ea.
Was
In Stock
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Corrosion-resistant aluminum housing and tempered glass lens
- IP66 waterproof construction for exterior applications
- Link up to 30 units with 1' or 6' interconnect cables
- Plug-and-play operation
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview
The Linear LED Wall Washer provides accent lighting for interior and exterior walls and surfaces. This fixture is built for exterior applications and features corrosion-resistant aluminum housing, a non-yellowing tempered glass lens, and IP66 waterproof protection. The wall washer produces up to 1,600 lumens of white light. Its 30° x 85° beam angle delivers a precise, focused beam ideal for highlighting architectural features and displays. Link up to 30 units with multiple interconnect options to customize and expand your lighting layout.
Product Details:
- Wall Washer Input Cable required for operation (sold separately)
- Mount with optional adjustable mounting brackets or extendable mounting arms
- Aluminum housing and tempered glass lens
- IP66 waterproof
- Use optional end cap to seal and complete run
- Max run: 30 fixtures
- 120-277 VAC
- Certified by UL
- 5-year warranty
Documents
WW Series Specification Sheet Applications:
- Accent Lighting
- Displays
- Wall Washing
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|
| Beam Angle | 30° X 85° |
| Brand | Super Bright LEDs |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
72 mA @ 277 VAC, 167 mA @ 120 VAC |
| Dimmable | No |
|
Distribution Type
Distribution Type
|
NEMA 5x7 |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Finish | Gray |
| Input Connection Type | 3-Pin Waterproof Connector |
| Integrated Surge Protection | 4 kV |
|
IP Rating
IP Rating
 |
IP66 |
| Rated Life (L70) | 50000 Hours |
| Length | 48 in. (4 ft) |
| Lens Color | Clear |
| Lens Type | Tempered Glass |
| Lumens | 1600 Lumens |
| Max Run | 30 |
| Operating Voltage | 120-277 VAC |
| Output Connection Type | 3-Pin Waterproof Connector |
| Product Materials | Aluminum Housing, Glass Lens |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 20 Watts |
| Part NO |
CCT
CCT
 |
LED Color | Product Weight |
|---|---|---|---|
| WW-30K20-3085S | 3000K | RGB+Warm White, RGB | 5.2 lb (2.4 kg) |
| WW-40K20-3085S | 4000K | Natural White | 5.9 lb (2.7 kg) |
| WW-50K20-3085S | 5000K | Cool White | 5.2 lb (2.4 kg) |
