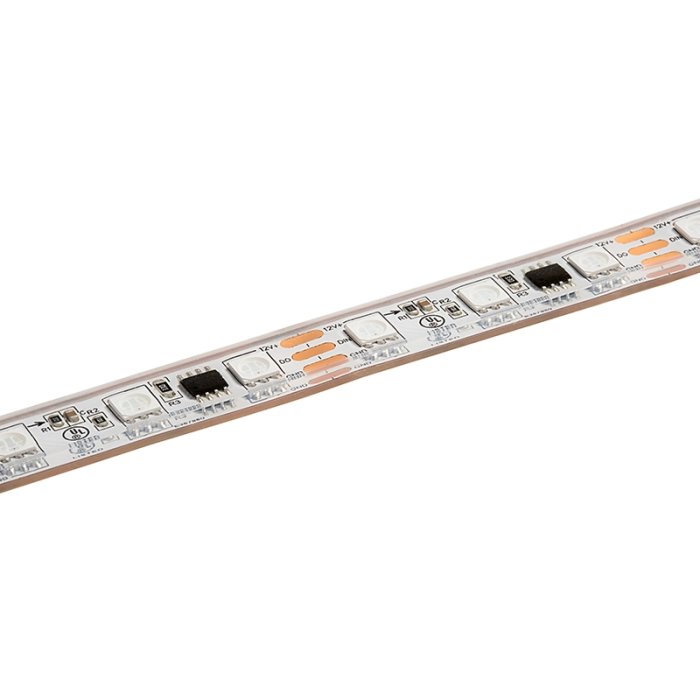

12V 5m Digital RGB LED Strip Light - Addressable Color-Chasing LED Tape Light - 12V - IP67
| Quantity | |
|---|---|
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- 5050 RGB LEDs - address each 3 LED segment with integrated WS2811 IC chips
- 200 unique color chasing patterns to choose from
- Use Magic-LED Bluetooth Controller (sold separately) and app to wirelessly customize brightness, color, modes, and speed
- IP67 Water resistant
- 12 VDC
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Overview
Product Details:
- 12 VDC input
- 3 LED/segment
- Max Run: 16.4ft (5m)
- Segment Length: 1.97in (50mm)
- Density: 18 LEDs/ft (60 LEDs/m)
- Strip Width: 12mm (0.47in)
- 0-100% dimmable
- Connection: pigtail
- IP67 rated for wet conditions
- 36000 hours L70 lifespan
- UL Listed
- 5 year warranty
STx-PCRGB-A1x-10A3M-5V Specification Sheet - Car Washes
- Interior Design
- Landscape Lighting
- Light Design
- Light Shows
- Outdoor Signs and Advertisements
- Sign Lighting
- Venues
RGB Addressable
RGB Addressable LEDs allow for custom control of individual LEDs or segments, allowing for a more expansive range of solid colors and color-changing modes than standard RGB lights.
Addressable LEDs are controlled via a digital signal that specifies the color and brightness of each LED. While they can be controlled by various microcontrollers, using specific libraries simplifies the process, and sometimes dedicated controllers are used for more complex applications.
Specifications
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
5 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
305mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP67 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Color Chasing RGB |
| LED Density | 18 LEDs/ft |
| LED Type | 5050 SMD |
| LEDs per Segment | 3 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 36000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
Up to 16.4ft (5m) |
| Minimum Cut Length | 50mm (1.97in) |
| Operating Voltage | 12 VDC |
| Series | DreamColor |
| Strip Width | 12mm (0.47in) |
| Wattage | 60 Watts |
| Wattage per Foot | 3.7 W/ft |
| Wire Length | 10 in (25.4 cm) |
