24V 5m RGB+CCT LED Tape Light - 5-in-1 Color-Changing LED Strip Light - IP20
Part Number:
STN-F80-A6A-12B5M-24V
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- 5-in-1 RGB + tunable white: 2400K-6500K
- Customize brightness, color tone, and light modes with an RGB + tunable white controller (sold separately)
- Lifetime warranty
Most Popular Compatible Products
Overview

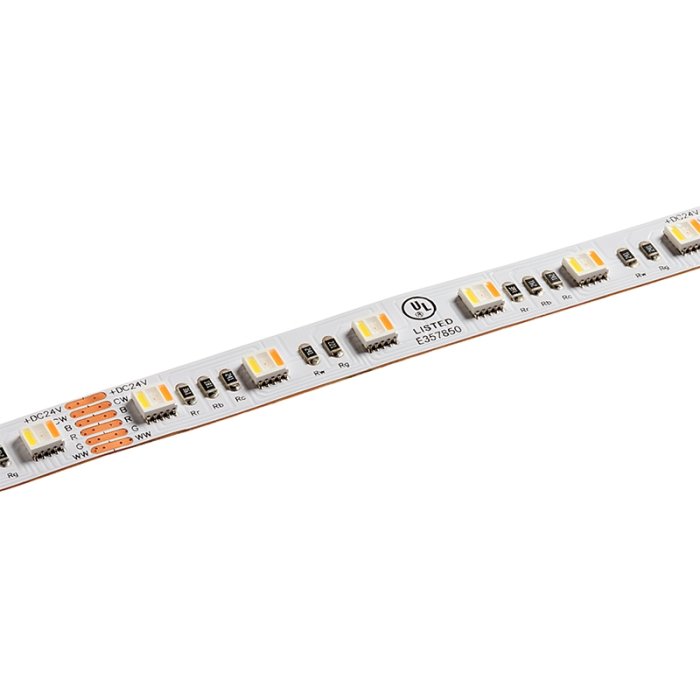

This 24V 5m RGB+CCT LED Strip Light combines RGB and tunable white LEDs into a single node for seamless color blending. This versatile strip light offers the widest range of color tones and temperatures, from 2400K to 6500K, making it ideal for diverse applications such as accent lighting, sign backlighting, and retail displays. The close placement of LEDs ensures a smooth, continuous line of vibrant light without hotspots. Installation is made easy with the peel-and-stick 3M™ adhesive backing, and the strip is fully dimmable for customizable brightness. Backed by a lifetime warranty, this strip light guarantees long-lasting performance and reliability.
Product Details:
- 24 VDC input
- Maximum run up to 15m
- 18 LEDs/ft
- Strip width measures 12mm
- 3M™ adhesive backing for surface mounting
- Pigtail connection
- 0-100% dimmable
- Lifetime exceeds 50000 hours
- CE certified and UL listed
- Lifetime warranty
STN-F80-A6A-12B5M-24V Specification Sheet Dimensional Drawings
Applications:
- Accent Lighting
- Backlighting
- Cove Lighting
- Display Cases
- Off Grid Lighting
- Retail Shops
- Sign Lighting
- Task Lighting
- Trade Shows
- Under-Cabinets
Super Bright LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If Super Bright LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
RGB+Tunable White
RGB+Tunable White LED strips and bulbs emit any fixed RGB color and a range of variable white CCT values.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Color Temperature
Color Temperature
 Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Tunable CCT |
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
3.8 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
228mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 41 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | RGB+Tunable CCT |
| LED Density | 18 LEDs/ft |
| LED Chip Type | 5050 SMD |
| LEDs per Segment | 6 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 36000 Hours |
| Lumens Per Foot | 223 lm/ft |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
16.4 ft (5 m) |
| Minimum Cut Length | 100mm (3.9in) |
| Operating Voltage | 24 VDC |
| Series | DynamicColor |
| Strip Width | 12mm (0.47in) |
| Wattage | 90 Watts |
| Wattage per Foot | 5.5 W/ft |
| Wire Length | 20.4 in. |
