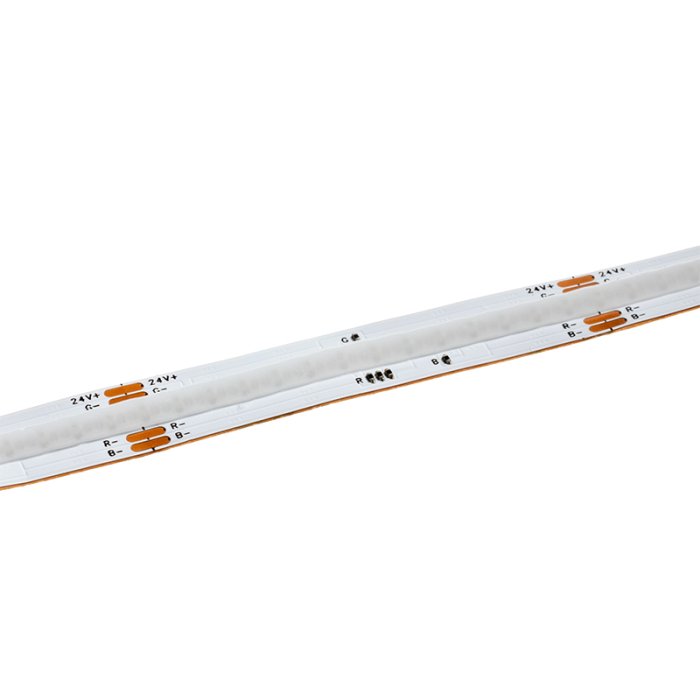

24V 5m RGB COB LED Strip Light - Even-Glow® Series - Seamless Lighting - High Density 256 LEDs/ft - IP20
Part Number:
STN-CRGB-O42A-10Z5M-24V
Manufacturer Part Number:
$189.99
ea.
Was
In Stock
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- COB LEDs create seamless line of light - no visible hotspots
- Flexible, cuttable, 3M™ adhesive-backed design for easy install
- RGB LEDs provides smooth color blending and saturation
- High density design with 256 LEDs/ft (840 LEDs/m)
- 0-100% PWM Dimmable
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview
The 24V 5m RGB COB LED Strip Light from the Even-Glow® Series offers a high-density, seamless lighting solution with 256 LEDs per foot. Utilizing advanced chip-on-board technology, this strip light delivers a smooth, uninterrupted line of vibrant RGB lighting without any hotspots, making it ideal for installations on reflective surfaces like granite countertops or tile floors. The flexible design, combined with a 3M™ adhesive backing, ensures easy installation even on curved surfaces and edges. Cut segments every 1.97 inches allow for precise customization to fit your project needs. Pair this strip light with a compatible controller (sold separately) to unlock a full range of customizable color tones and lighting settings.
Product Details:
- 3M™ adhesive backing for surface mounting
- Max run: 19.7 ft (6 m)
- Cuttable segment length: 1.97 in. (50 mm)
- 10mm strip width
- PWM Dimming
- Pigtail connection
- 24 VDC
- UL Listed
- 5-year warranty
Documents
STN COB Strips Specification Sheet Applications:
- Accent Lighting
- Cove Lighting
- Displays
- Sign Lighting
- Stage & Theaters
- Toe Kick Lighting
- Trade Shows
- Under-Cabinets
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
COB
COB (Chip-on-Board) LEDs integrate multiple LED chips onto a single module, offering higher brightness and better light distribution in larger lighting installations. This design makes them excellent for high-output applications. Typically, they also have a higher density, producing a "line of light" illumination, making them ideal for lighting reflective surfaces like polished countertops or glass retail displays.
RGB
RGB LED strips and bulbs emit one fixed light color in red, green, blue, or a combination thereof.
LED Strip Light FAQs
What is color temperature? Which one is best?
What LED strip light accessories do I need?
The only thing you need for certain to power a strip light is a power supply. We offer accessories used for installation, such as connectors and aluminum mounting channels. As well as others that add functionality such as such as dimmers, switches, and remote controls. Complete kits are also offered which include everything you need to get started.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
3.1 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
191mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
160° |
| LED Color | RGB |
| LED Density | 256 LEDs/ft |
| LED Chip Type | COB (chip-on-board) |
| LEDs per Segment | 42 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 36000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
19.7 ft (6 m) |
| Minimum Cut Length | 50mm (1.97in) |
| Operating Voltage | 24 VDC |
| Series | Even-Glow® |
| Strip Width | 10mm (0.39in) |
| Wattage | 75 Watts |
| Wattage per Foot | 4.6 W/ft |
| Wire Length | 19.2 in. |
