5m RGB LED Strip Light - IP68 Submersible LED Tape Light - 24V
Part Number:
STW-CRGB-A6G-10B5M-24V
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features

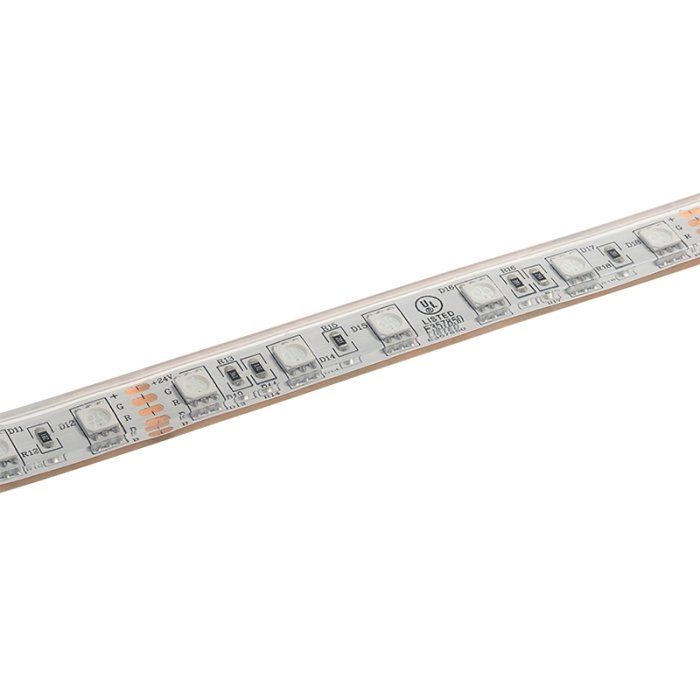

- 3-in-1 RGB 5050 SMD LEDs
- Customize brightness, color, and settings with an optional universal RGB controller
- IP68 rated submersible
Most Popular Compatible Products
Overview
The 24V 5m RGB LED Strip Light is designed for robust outdoor applications, including full, permanent submersion in water. Featuring integrated 3-in-1 RGB 5050 SMD LEDs, this strip emits brilliant and customizable illumination across a wide range of colors. Its IP68 rating ensures durability in wet environments, while the peel-and-stick 3M™ adhesive backing allows for quick and easy mounting. The strip operates on 24V DC, supports a maximum run of 24.6ft (7.5m), and is fully dimmable, providing versatile lighting control. Backed by a five-year warranty.
Product Details:
- 24 VDC input
- Maximum run of 24.6ft (7.5m)
- 18 LEDs/ft
- Strip width measures 10mm
- 3M™ adhesive backing for surface mounting
- Waterproof, dual-end mating connections
- 0-100% dimmable
- Lifetime exceeds 50000 hours
- CE certified and UL listed
- Five-year warranty
STW-CRGB-A6G-10B5M-24V Specification Sheet Dimensional Drawings
Applications:
- Accent Lighting
- Aquariums
- Cove Lighting
- Landscape Lighting
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
RGB
RGB LED strips and bulbs emit one fixed light color in red, green, blue, or a combination thereof.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.5 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
150mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Finish | White |
| Input Connection Type | 4-Pin Waterproof Connector, Pigtail |
|
IP Rating
IP Rating
 |
IP68 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | RGB |
| LED Density | 18 LEDs/ft |
| LED Chip Type | 5050 SMD |
| LEDs per Segment | 6 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
24.6 ft (7.5 m) |
| Minimum Cut Length | 100mm (3.9in) |
| Operating Voltage | 24 VDC |
| Product Dimensions | 16.40″ x 0.48″ x 0.20″ |
| Series | DynamicColor |
| Strip Width | 10mm (0.39in) |
| Wattage | 59 Watts |
| Wattage per Foot | 3.6 W/ft |
| Wire Length | 20.4 in. |
