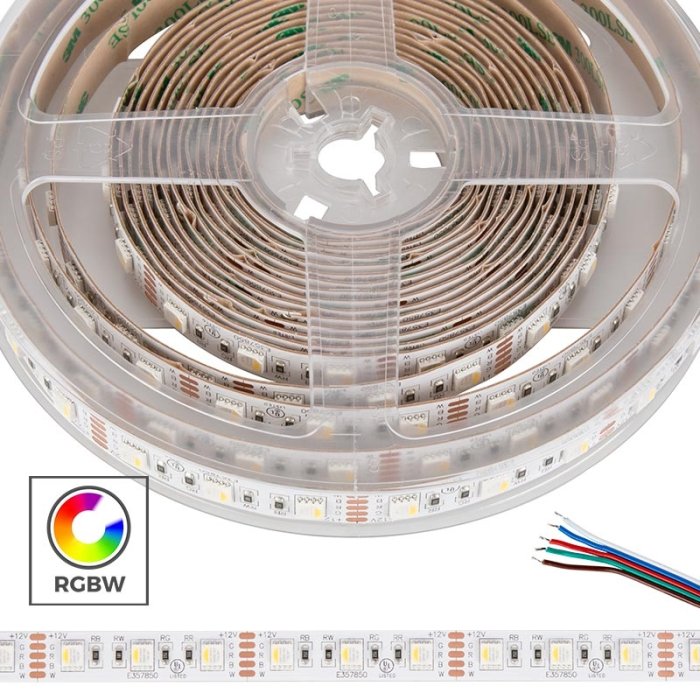

RGB + White LED Strip Light - 4-in-1 Chip 5050 SMD Color-Changing LED Tape Light - 5 Meters - IP20 - 12V / 24V
| Quantity | |
|---|---|
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- 4-in-1 chip RGB + White in single 5050 LED
- Seamless saturation blending of multicolor and white light with 4-in-1 chip
- Select from 5000K, 4000K, or 3000K White LED
- Customize color tones and settings with universal RGBW controller (sold separately)
- Lifetime warranty
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Frequently Bought Together
Overview
Product Details:
- 12V input for operation with a vehicle; 24V for longer runs
- Run 12V strips up to 5m; run 24V strips up to 5.5m
- 18 LEDs/ft
- Strip width measures 12mm
- 3M™ adhesive backing for surface mounting
- 5-wire pigtail connection
- 0-100% dimmable
- Lifetime exceeds 50000 hours
- CE certified and UL listed
- Lifetime warranty
DC-IP20-RGBW-5m Specification Sheet
Specifications
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
| CRI | 80+ |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 24 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Density | 18 LEDs/ft |
| LED Type | 5050 SMD |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 50000 Hours |
| Lumens Per Foot | 122 lm/ft |
| Series | DynamicColor |
| Strip Width | 12mm (0.47in) |
| Wattage | 83 Watts |
| Wattage per Foot | 5.1 W/ft |
| Wire Length | 1.7 ft (51.8 cm) |
| Part NO |
Color Temperature
Color Temperature
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
LED Color | LEDs per Segment |
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
Minimum Cut Length | Operating Voltage |
|---|---|---|---|---|---|---|---|---|
| STN-D30K80-A3A-12B5M-12V | 3000K | 7 A | 425mA | RGB+WW 3000K | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC |
| STN-D30K80-A6A-12B5M-24V | 3000K | 3.4 A | 213mA | RGB+WW 3000K | 6 | Up to 18ft (5.5m) | 100mm (3.9in) | 24 VDC |
| STN-D40K80-A3A-12B5M-12V | 4000K | 7 A | 425mA | RGB+NW 4000K | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC |
| STN-D40K80-A6A-12B5M-24V | 4000K | 3.4 A | 213mA | RGB+NW 4000K | 6 | Up to 18ft (5.5m) | 100mm (3.9in) | 24 VDC |
| STN-D50K80-A3A-12B5M-12V | 5000K | 7 A | 425mA | RGB+CW 5000K | 3 | Up to 16.4ft (5m) | 50mm (1.97in) | 12 VDC |
| STN-D50K80-A6A-12B5M-24V | 5000K | 3.4 A | 213mA | RGB+CW 5000K | 6 | Up to 18ft (5.5m) | 100mm (3.9in) | 24 VDC |
