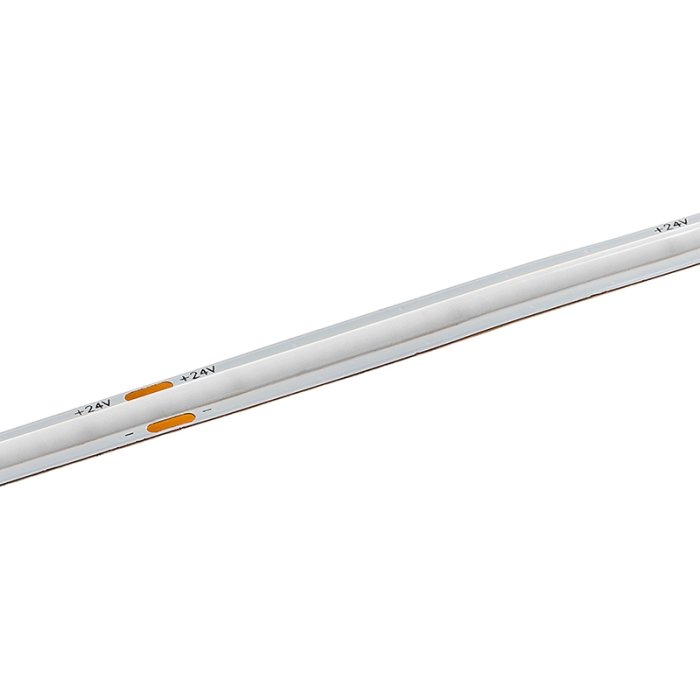

5m COB LED Strip Light - Single Color LED Tape Light - 24V - IP20 - Blue / Green
| Quantity | |
|---|---|
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- New COB LED Technology produces seamless linear light - no diffused cover needed
- High-density design with 156 LEDs/ft (512 LEDs/m)
- Lowest profile strip solution for light with out LED hotspots
- 24 VDC for longer max run
- Also available in white CCT options
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Overview
Product Details:
- Strip width: 8mm
- 3Mâ„¢ adhesive backing
- Flexible COB design for highly adaptable mounting
- 2.46 in. (62.5 mm) segment length
- 24 VDC input voltage
- 50 W total (3.05 with ft)
- Max run: 24.6 ft (7.5 m)
- 0-100% dimmable
- Connection: pigtail
- 180° beam angle
- UL Listed
- IP20 Rated for dry conditions
- 5-year warranty
COB Series Single Color and CCT Specification Sheet - Backlighting
- Building Exteriors and Facades
- Cove Lighting
- Display Cases
- Displays
- Light Design
- Reflective Surfaces
- Retail Shops
- Stage & Theaters
- Toe Kick Lighting
- Trade Shows
- Under-Cabinets
COB
COB (Chip-on-Board) LEDs integrate multiple LED chips onto a single module, offering higher brightness and better light distribution in larger lighting installations. This design makes them excellent for high-output applications. Typically, they also have a higher density, producing a "line of light" illumination, making them ideal for lighting reflective surfaces like polished countertops or glass retail displays.
Specifications
| Ambient Operating Temperature | -20~+40 °C (-4~+104 °F) |
|---|---|
| Certifications/Compliance | UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.1 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
127mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
180° |
| LED Density | 156 LEDs/ft |
| LED Type | COB (chip-on-board) |
| LEDs per Segment | 32 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 30000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
Up to 24.6ft (7.5m) |
| Minimum Cut Length | 62.5mm (2.46in) |
| Operating Voltage | 24 VDC |
| Series | COB |
| Strip Width | 8mm (0.31in) |
| Wattage | 50 Watts |
| Wattage per Foot | 3.1 W/ft |
| Wire Length | 1.7 ft (51.8 cm) |
| Part NO | LED Color |
|---|---|
| STN-BBLU-O32A-08L5M-24V | Blue |
| STN-BGRE-O32A-08L5M-24V | Green |
