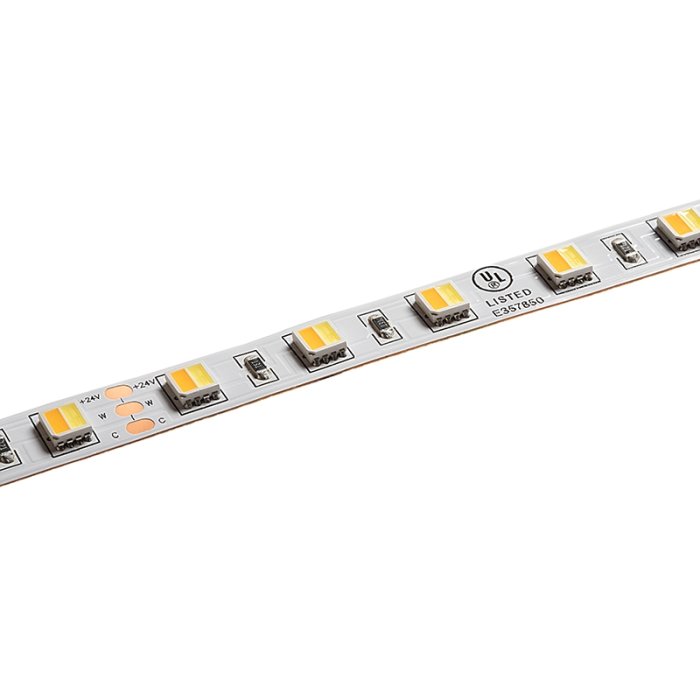

24V 5m Tunable White LED Strip Light - 2-in-1 LED Tape Light - IP20 - 196.9in (16.40ft)
| Quantity | |
|---|---|
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Overview
Product Details:
- 24 VDC input
- Maximum run up to 15m
- 18 LEDs/ft
- Strip width measures 10mm
- 3M™ adhesive backing for surface mounting
- Pigtail connection
- 0-100% dimmable
- Lifetime exceeds 50000 hours
- CE certified and UL listed
- Lifetime warranty
STN-H80-A6A-10B5M Specification Sheet - Accent Lighting
- Backlighting
- Bias Lighting
- Cove Lighting
- Display Cases
- Off Grid Lighting
- Retail Shops
- Task Lighting
- Trade Shows
- Under-Cabinets
Tunable White
Tunable White bulbs and strips allow users to adjust the color temperature of the light output, ranging from warm to cool white, to suit different settings and preferences. This adjustability is achieved by mixing different proportions of white LEDs with varying color temperatures within a single fixture.
Specifications
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Color Temperature
Color Temperature
Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Tunable CCT |
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.9 A |
|
Current Draw per Foot
Current Draw per Foot
Current Draw Per Foot is used to size power supplies, normally converted to watts per foot. This is equated using total wattage divided by number of linear feet. Current draw per foot is the amount of current consumed by an LED or LEDs in an electrical circuit per linear foot at a specific voltage, measured in milliamps (mA) or watts (W).
|
175mA |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 80 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | Tunable CCT |
| LED Density | 18 LEDs/ft |
| LED Type | 5050 SMD |
| LEDs per Segment | 6 |
| Length | 16.4 ft (5 m) |
| LED Lifetime | 50000 Hours |
| Lumens Per Foot | 335 lm/ft |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
Up to 21.3ft (6.5m) |
| Minimum Cut Length | 100mm (3.9in) |
| Operating Voltage | 24 VDC |
| Series | DynamicColor |
| Strip Width | 10mm (0.39in) |
| Wattage | 69 Watts |
| Wattage per Foot | 4.2 W/ft |
| Wire Length | 1.6 ft (48.7 cm) |
