75W LED Post Top Light With Optional Photocell - Selectable CCT - 250W MH Equivalent - 10,500 Lumens - 3000K / 4000K / 5000K
Part Number:
PTLP2-SW75W-HCG-BRP35-x
Manufacturer Part Number:
$184.99
ea.
Was
In Stock
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Optional photocell increases energy savings
- Selectable CCT for tailored lighting control
- Type V distribution for broad, uniform lighting
- Equivalent to 250W metal halide fixtures
- DLC 5.1 Premium
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Most Popular Compatible Products
Overview

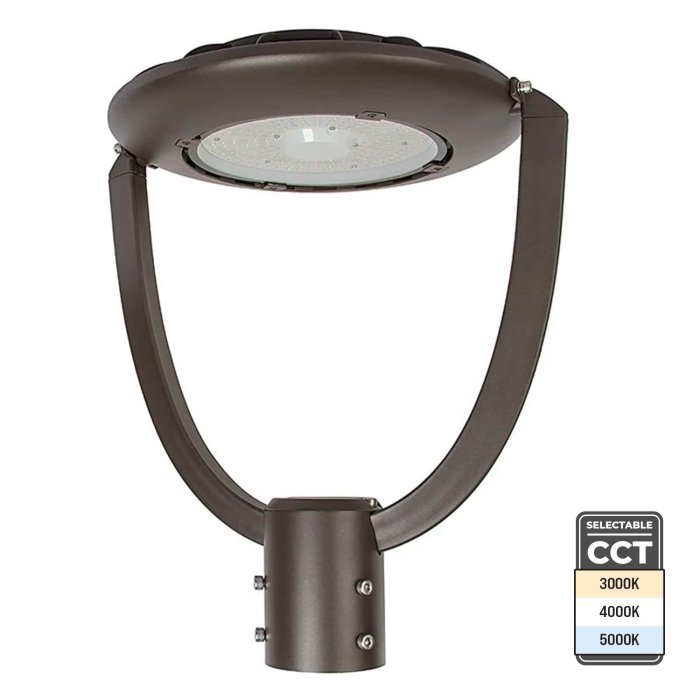

The 75W LED Post Top Light combines architectural design with advanced functionality, offering selectable CCT for tailored lighting control. Easily select your desired color temperature during installation using the internal switch. Constructed with a bronze aluminum housing and tempered glass lens, it ensures durability in outdoor environments. The light is IP65 weatherproof and built to withstand harsh conditions.
With a Type V light distribution, it provides broad and uniform lighting, making it perfect for pathways, security lighting, and parking lots. It is compatible with standard 2 3/8" and 3" poles and includes mounting hardware for easy installation. Pairing the fixture with an optional photocell allows for automatic dusk-to-dawn operation or an optional shorting cap can be used for continuous operation. It supports 1-10V dimming for additional lighting control. When set to 3000K this fixture is Dark Sky Friendly, minimizing light pollution and reducing blue light wavelengths in nighttime environments.
Product Details:
- Compatible with standard 2 3/8 “ and 3” poles
- Mounting hardware included
- Bronze aluminum housing and tempered glass lens
- IP65 weatherproof rating
- 1-10V Dimming
- Certified by UL
- DLC 5.1 Premium
- 5 year warranty
Documents
PTLP2 User Manual
PTLP2-SW75W-HCG-BRP35 IES File Dimensional Drawings
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Dark Sky Friendly
Our line of Dark Sky friendly luminaires provide directed lighting while minimizing light pollution. These fixtures may include dimming or selectable wattage and accessories like shields to minimize overlighting and restrict backlight, glare, and uplight. They also have an output option down to 3000K or lower to reduce blue light wavelengths in nighttime environments. Depending on local requirements, some of these fixtures may also be turtle-friendly for marine ecosystems or other sensitive areas.
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|
| Beam Angle | 115° |
| Brand | Super Bright LEDs |
|
BUG Rating
BUG Rating
 BUG is an acronym that stands for Backlight, Uplight, and Glare. The Illuminating Engineering Society (IES) and the International Dark Sky Association developed the BUG rating system to describe the unwanted light emitted from an outdoor light fixture. BUG ratings only apply to luminaires mounted in their normal downward position. Backlight is all light emitted from the fixture back toward the mounting pole from 0° to 90° vertically and 90° to -90° horizontally. Uplight is all light radiated from a fixture above 90° vertically. It essentially lights the sky, wasting energy and contributing to skyglow light pollution. "Front Light" or Glare is all light distributed from the front of a fixture from 0° to 90° vertically and -90° to 90° horizontally. An example BUG rating of "B4-U0-G4" has a Backlight rating of 4, an Uplight rating of 0, and a Glare rating of 4, with the scale going from 0 (best) to 5 (worst). For more information, see our knowledge base article "BUG Ratings and Light Pollution." |
B3-U2-G1 |
|
CCT
CCT
 |
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
270 mA @ 277 VAC, 630 mA @ 120 VAC |
|
Dark Sky Friendly
Dark Sky Friendly
We design Dark Sky friendly luminaires to provide directed lighting while minimizing light pollution. These fixtures may include dimming or selectable wattage and accessories like shields to minimize overlighting and restrict backlight, glare, and uplight. They also have an output option down to 3000K or lower to reduce blue light wavelengths in nighttime environments. Depending on local requirements, some of these fixtures may also be turtle-friendly for marine ecosystems or other sensitive areas. |
Yes |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
1-10V |
|
Distribution Type
Distribution Type
|
Type V-S |
| DLC Product ID | S-FVHMAS |
| Efficacy | 140 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Equivalency | 175 Watt Metal Halide |
| Finish | Bronze |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 4 kV (L/N-G), 2 kV (L-N) |
|
IP Rating
IP Rating
 |
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable White |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Glass |
| Lumens | 10500 Lumens |
| Mount Type | Post Top |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Glass Lens |
| Product Weight | 10.7 lb (4.9 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 75 Watts |
| Wire Gauge | 18 AWG |
| Part NO |
Photocell
Photocell
What is a Photocell and How Does It Work? When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed? Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting Cap Photocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide Switch While DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the Wiring Some photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
|---|---|
| PTLP2-SW75W-HCG-BRP35-JL | Includes Photocell |
| PTLP2-SW75W-HCG-BRP35-SC | Includes Shorting Cap |
