LED UFO High Bay - 80 W - 175 W MH Equivalent - 11,200 Lumens - 5000K
Part Number:
UHBD-S1-50K80-80H
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- Compact design with durable aluminum housing
- Replaces 175 W metal halide fixtures
- IP65 waterproof rating for outdoor use
- Includes mounting hook and safety cable for easy installation
Most Popular Compatible Products
Overview

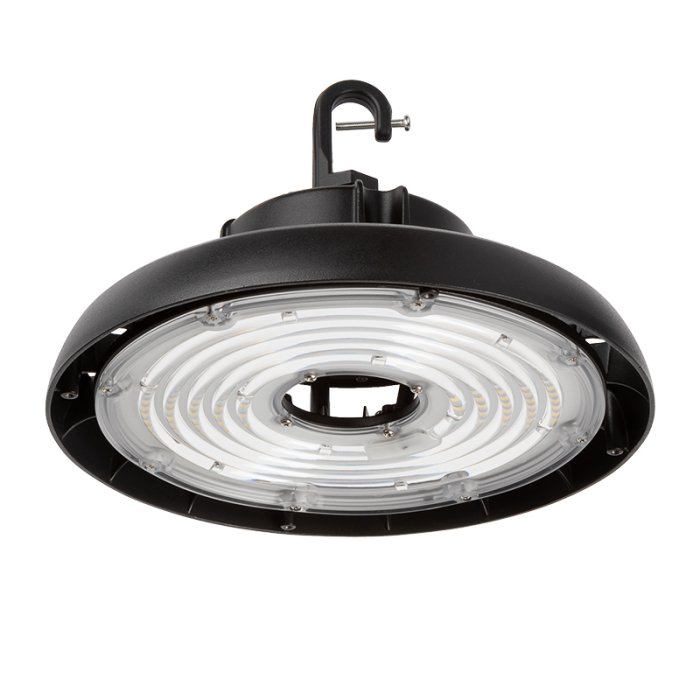

This 80 W LED UFO high bay light serves as a high-efficiency replacement for 175 W metal halide fixtures. Its low-profile design features powder-coated aluminum housing and a polycarbonate lens, ensuring consistent, uniform light output. With an IP65 rating, the fixture offers reliable protection against moisture and corrosion, ideal for demanding environments. Installation is streamlined with the included mounting hook and safety cable, and it supports an optional reflector for enhanced illumination. Engineered for commercial use, it’s perfect for warehouses, gymnasiums, and industrial facilities.
Product Details:
- Black powder coated aluminum housing
- Polycarbonate lens reduces glare
- 0-10 V dimmable
- Mounting hook and safety cable included
- 100-277 VAC
- UL Listed
- 5-year warranty
Documents
UHBD-S1 Specification Sheet
UHBD-S1-50K80-80H with reflector IES File Dimensional Drawings
Applications:
- Arenas
- Commercial Buildings
- Factories
- Gymnasiums
- Retail Shops
- Supermarkets
- Warehouses
- Workshops
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Specifications
| Ambient Operating Temperature | -40 to 45 °C (-40 to 113 °F) |
|---|---|
| Beam Angle | 80° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
290 mA @ 277 VAC, 670 mA @ 120 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 140 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations |
| Equivalency | 175 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP65 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lumens | 11200 Lumens |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 100-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 4.1 lb (1.9 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 80 Watts |
| Wire Gauge | 18 AWG |
