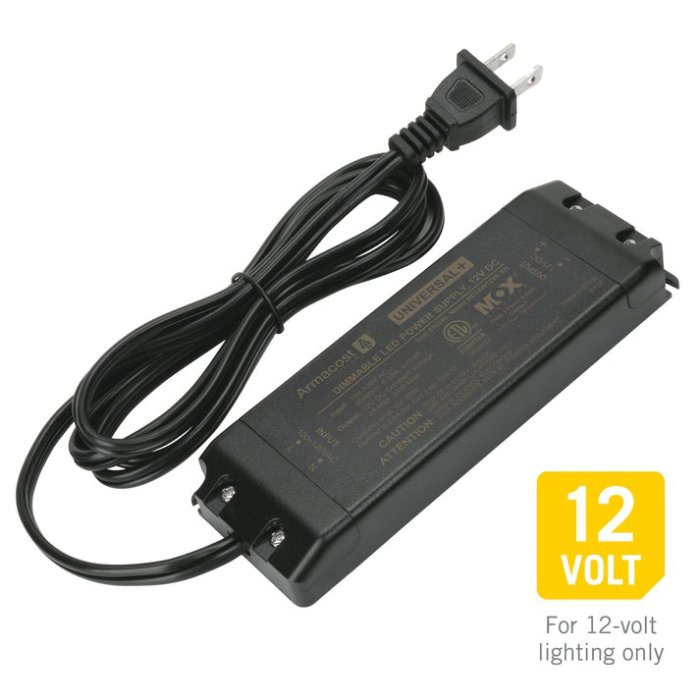

Armacost Lighting Universal+ Dimmable LED Driver - 12 VDC - 24W / 60W
Part Number:
ARM-12V-HE
Manufacturer Part Number:
Starting at
$59.99
ea.
Starting at
Was
In Stock
Features
- Available in 24W or 60W models
- Auto-recovery and shutdown safeguards
- Overcurrent, short-circuit, and over temperature protection
- Screw terminals for secure electrical connections
- Free air convection cooling
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The Armacost Lighting Universal+ 12 VDC Dimmable LED Driver offers a high power factor and seamless compatibility with both TRIAC (forward phase) and ELV (reverse phase) dimming. This compact and lightweight driver ensures smooth, flicker-free dimming from 0-100% without any pop-on or pop-off effects. Designed for efficiency, it boasts a power factor of 0.95+ and complies with most state regulations. Perfect for new or upgraded undercabinet lighting installations, it can be plugged in or hardwired using the detachable AC power cord. The power supply is suitable for applications in both dry and damp locations.
Product Details:
- TRIAC and ELV Dimming capabilities
- California compliant with a power factor of 0.95+
- Suitable for both dry and damp locations
- Class 2 power supply; ETL Listed
- 5-year warranty
Documents
Universal Dimmable LED Power Supplies Manual
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
Class 2
Class 2 power supplies must meet the National Electric Code (NEC) and Underwriters Laboratories (UL 1310) standards for wiring requirements and power limitations of AC/DC power supplies to minimize shock or fire risks. All Class 2 power supplies must meet the NEC overcurrent protection and wiring sizing regulations. They must be constructed with ‘In-Wall’ rated wiring for permanent installation inside walls or floors, where they may be surrounded by insulation. These wiring requirements help prevent cracking or melting of the wire, which could cause a fire hazard. These power supplies must have a maximum power capacity of 100 VA and cannot exceed a 30 VAC or 60 VDC output, minimizing the risk of electric shock or overheating from excessive currents.
Class II
Class II power supplies must follow the International Electrotechnical Commission IEC 61439-1 design. This code details that Class II power supplies must have two layers of insulation between the user and the internal current-carrying components to protect the user from electrical shock. The initial layer is "basic" insulation. The second double layer is a reinforcement layer that eliminates the need for a protective earth connection (earthing) or a ground connection since the power supply is grounded within the product's casing.
Specifications
| Ambient Operating Temperature Range | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Brand | Armacost |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Class 2, Class II, ETL Listed |
| Dimmable | Yes |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
TRIAC (ELV), TRIAC (MLV), TRIAC (MLV+ELV) |
|
Environmental Rating
Environmental Rating
|
Suitable for Damp Locations |
| Input Connection Type | Screw Terminals |
| Input Voltage | 120 VAC |
| Output Connection Type | Screw Terminals |
| Output Voltage | 12 VDC |
| Warranty | 5 Year |
| Part NO | Output Current |
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
|---|---|---|
| 830240 | 2000 mA | 24 Watts |
| 830600 | 5000 mA | 60 Watts |
