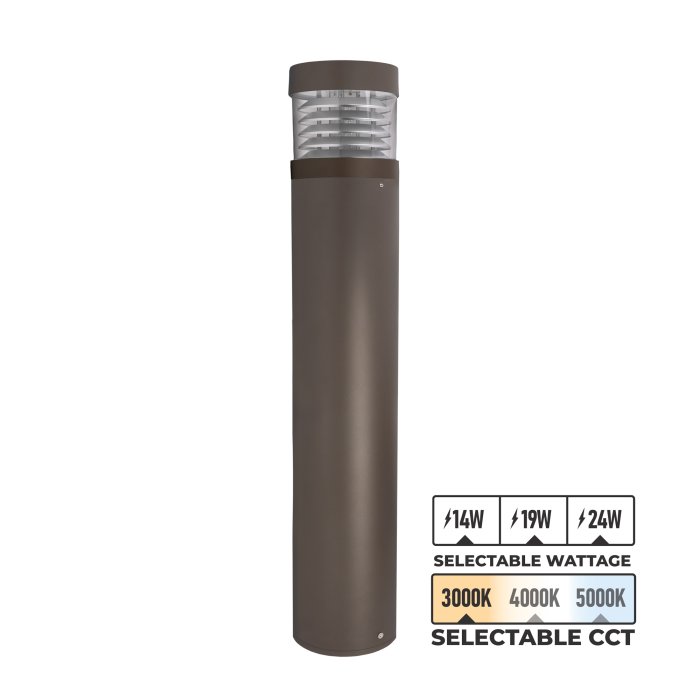

42" Bronze Round LED Bollard - Flat Top with Louvers - Selectable CCT and Wattage - Up to 1,800 Lumens - 120-277 VAC
Part Number:
BLBW-SW3B24S-RL-42
Manufacturer Part Number:
$206.99
ea.
Was
In Stock
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Field Selectable CCT: 3000K, 4000K, 5000K
- Field Selectable Wattage: 14W, 19W, 24W
- Dimensions: 42" h x 6.3" w
- Optional new pour mounting kit
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview
The Bronze Round Flat Top LED Bollard features selectable CCT and wattage, making it versatile for various applications. Its louvered reflector directs light downward with a 100° by 360° beam angle, enhancing visibility in pedestrian areas. Built with durable die-cast aluminum and a UV-resistant polycarbonate lens, this bollard is energy-efficient, eliminating the need for bulb and ballast replacements. Install with existing hardware or the Anchor Mounting Bracket (sold separately) for new concrete installations, and pair with an optional Glare Shield (sold separately) for additional light control.
Product Details:
- Bronze corrosion-resistant aluminum housing
- Polycarbonate lens with louver reflectors
- Replaces up to 70W metal-halide fixtures
- 0-10V dimming
- Optional new pour mounting kit available
- 120-277 VAC input
- Certified by UL
- 5-year warranty
Documents
BLBW User Manual
BLBW-SW3B24S-RL-42 14W IES File Dimensional Drawings
Applications:
- Building Entryways
- Commercial And Industrial Exterior
- Educational Facilities
- Parks
- Pathways
- Pedestrian Plazas
- Pedestrian Safety
- Residential Complexes
- Walkways
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Specifications
| Beam Angle | 360° x 100° |
|---|---|
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
120/160/200 mA @ 120 VAC, 51/69/87 mA @ 277 VAC |
| Diameter | Ø6.3 in. |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Equivalency | 70 Watt Metal Halide |
| Finish | Bronze |
| Height | 42.0 in |
| Input Connection Type | Terminal Block |
| Integrated Surge Protection | 4 kV |
|
IP Rating
IP Rating
 |
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable White |
| Rated Life (L70) | 50000 Hours |
| Lumens | 1050 Lumens, 1425 Lumens, 1800 Lumens |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polycarbonate |
| Product Weight | 14.1 lb (6.4 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 14 Watts, 19 Watts, 24 Watts |
