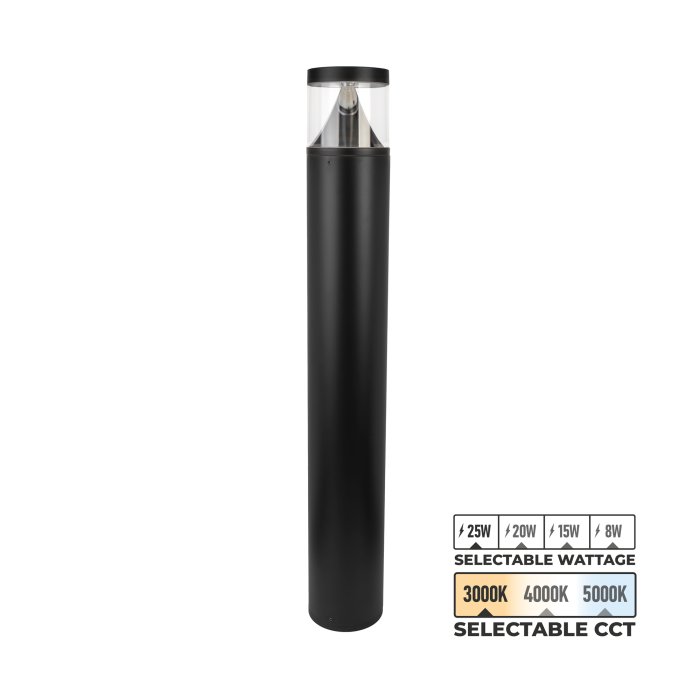

Black Round Flat Top LED Bollard - Cone Reflector - Selectable Wattage and CCT - Up to 3,250 Lumens - 8W / 15W / 20W / 25W - 3000K / 4000K / 5000K
Part Number:
BLST-SW3B25S-MV42DV10-RF
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- Selectable CCT and Wattage for customizable light output
- 360° x 70° beam angle increases visibility for pedestrians
- High-impact and UV-resistant lens
- DLC 5.1 Premium
Most Popular Compatible Products
Overview
The Flat Top LED Bollard Light features field-selectable color temperatures (3000K, 4000K, 5000K) and wattage options, making it highly adaptable for various settings. Its durable, powder-coated die-cast aluminum housing and UV-resistant polycarbonate lens with a cone reflector ensure long-lasting performance while providing a 360° by 70° beam angle for enhanced pedestrian visibility. Easily installable with the included sleeve anchor bolts or the Bollard Mounting Kit (sold separately), this bollard also offers 0-10V dimming for further customization, suitable for both commercial and residential applications.
Product Details:
- Powder-coated die-cast aluminum housing
- Polycarbonate lens
- IP66 waterproof
- 0-10V dimmable
- 120-347 VAC
- DLC 5.1 Premium
- ETL Listed
- 5-year warranty
Documents
BLST User Manual Dimensional Drawings
Applications:
- Building Entryways
- Commercial And Industrial Exterior
- Educational Facilities
- Parks
- Pathways
- Pedestrian Plazas
- Residential Complexes
- Walkways
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -40 to 40 °C (-40 to 104 °F) |
|---|---|
| Beam Angle | 360° x 70° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
75/140/185/230 mA @ 120 VAC, 25/50/65/80 mA @ 347 VAC |
| Diameter | Ø5.9 in. |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Equivalency | 100 Watt Metal Halide |
| Finish | Black |
| Height | 40.0 in |
| Impact Resistance | IK08 |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 4 kV, 6 kV |
|
IP Rating
IP Rating
 |
IP66 |
| LED Color | Warm White, Natural White, Cool White, Selectable White |
| Rated Life (L70) | 100000 Hours |
| Lumens | 1040 Lumens, 1950 Lumens, 2600 Lumens, 3250 Lumens |
| Operating Voltage | 120-347 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 8 Watts, 15 Watts, 20 Watts, 25 Watts |
