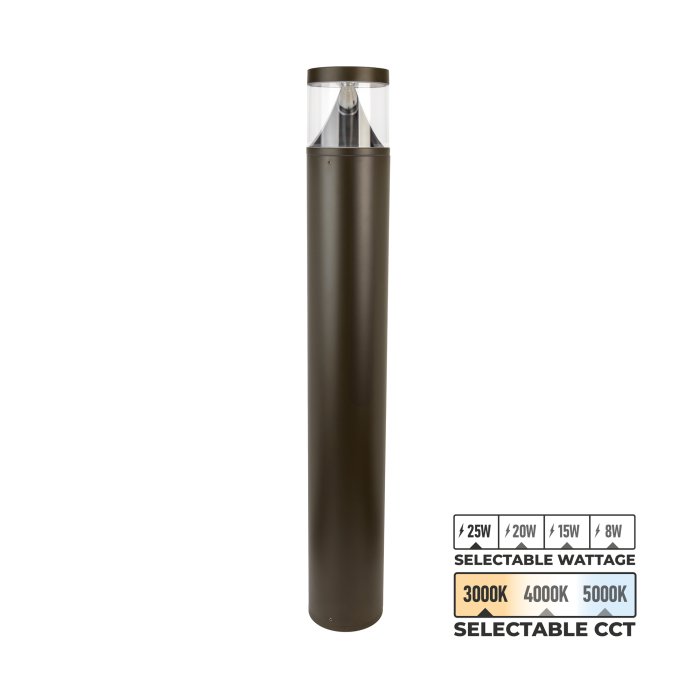

Bronze Round Flat Top LED Bollard - Cone Reflector - Selectable Wattage and CCT - Up to 3,250 Lumens - 8W / 15W / 20W / 25W - 3000K / 4000K / 5000K
Part Number:
BLST-SW3B25S-MV42DV10-RF(bronze)
Manufacturer Part Number:
$179.99
ea.
Was
Clearance
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Selectable CCT and Wattage for customizable light output
- 360° x 70° beam angle increases visibility for pedestrians
- High-impact and UV-resistant lens
- DLC 5.1 Premium
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
The Bronze Round Flat Top LED Bollard Light offers field-selectable CCT and wattage options, along with dimmability for enhanced customization. Built with a durable powder-coated die-cast aluminum housing and a UV-resistant polycarbonate lens, this bollard is designed to withstand scratches, discoloration, and impacts. The cone reflector delivers a 360° by 70° beam angle, improving pedestrian visibility. Installation is simple with the included sleeve anchor bolts for retrofitting existing concrete, or opt for the Bollard Mounting Kit (sold separately) for new installations.
Product Details:
- Powder-coated die-cast aluminum housing
- Polycarbonate lens
- IP66 waterproof
- 0-10V dimmable
- 120-347 VAC
- DLC 5.1 Premium
- ETL Listed
- 5-year warranty
Documents
BLST User Manual Applications:
- Building Entryways
- Commercial And Industrial Exterior
- Educational Facilities
- Parks
- Pathways
- Pedestrian Plazas
- Residential Complexes
- Walkways
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -40 to 40 °C (-40 to 104 °F) |
|---|---|
| Beam Angle | 360° x 70° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
75/140/185/230 mA @ 120 VAC, 25/50/65/80 mA @ 347 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 100 Watt Metal Halide |
| Finish | Bronze |
| Height | 41 in |
| Impact Resistance | IK08 |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 4 kV, 6 kV |
|
IP Rating
IP Rating
|
IP66 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 100000 Hours |
| Lumens | 1040 Lumens, 1950 Lumens, 2600 Lumens, 3250 Lumens |
| Operating Voltage | 120-347 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | 8 Watts, 15 Watts, 20 Watts, 25 Watts |
