48" Integrated T8 Linkable LED Fixture - Selectable CCT and Wattage - Up to 3,120 Lumens - 120 VAC
Part Number:
IT8-SW3H-x24
Manufacturer Part Number:
Starting at
$13.99
ea.
Starting at
Was
In Stock
Features
- Adjustable wattage options for customization: 15W, 20W, or 24W
- Selectable color temperatures: 4000K, 5000K, or 6500K
- Connect up to 12 fixtures for expanded lighting coverage
<style>#html-body [data-pb-style=BRTIFUM]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}#html-body [data-pb-style=YQM9IHG]{text-align:center}</style><div data-content-type="row" data-appearance="contained" data-element="main"><div data-enable-parallax="0" data-parallax-speed="0.5" data-background-images="{}" data-background-type="image" data-video-loop="true" data-video-play-only-visible="true" data-video-lazy-load="true" data-video-fallback-src="" data-element="inner" data-pb-style="BRTIFUM"><div data-content-type="block" data-appearance="default" data-element="main" data-pb-style="YQM9IHG"></div></div></div>
Related Products
Overview

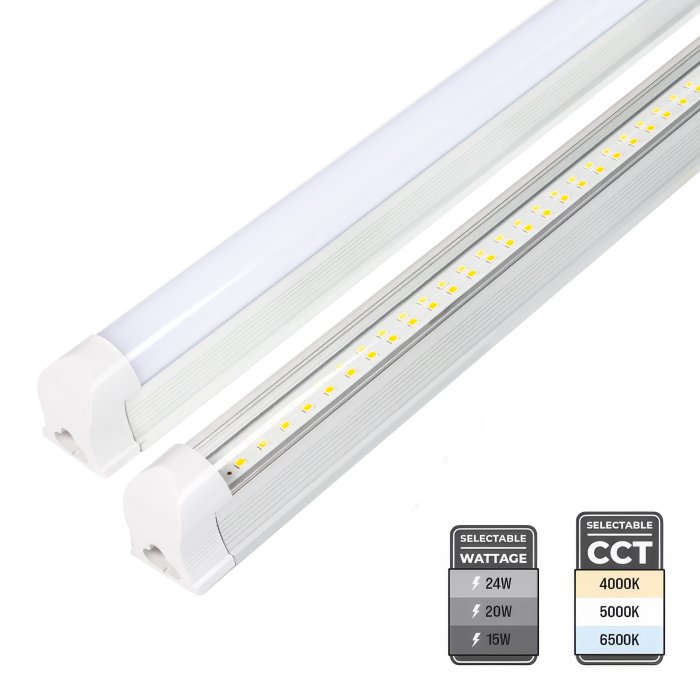

The 48" Integrated T8 Linkable LED Fixture is available with a clear or frosted lens. This fixture features adjustable wattage options of 15W, 20W, or 24W and selectable color temperatures of 4000K, 5000K, or 6500K. Each fixture delivers up to 3,120 lumens and is designed for seamless installation. A direct connector, pigtail connector, and mounting brackets are included, and up to twelve fixtures can be connected on a single run. A 6" interconnect cable and 48" power cord can also be used with this fixture.
Product Details:
- Silver aluminum housing
- Frosted or clear polycarbonate lens
- 140° beam angle
- Surface mount using included brackets
- Max run: 12 lights
- 120 VAC
- ETL Listed
- 5-year warranty
IT8-SW3H-x24 Specification Sheet Applications:
- Garages
- Task Lighting
- Under-Cabinet Lighting
- Workbenches
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
Specifications
| Ambient Operating Temperature | -20 to 50 °C (-4 to 122 °F) |
|---|---|
| Beam Angle | 140° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
4000K, 5000K, 6500K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
ETL Listed |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
125/165/200 mA |
| Dimmable | No |
|
Dimmer Type
Dimmer Type
|
Non-Dimmable |
| Efficacy | 130 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 1-lamp 32W T8 Tube |
| Finish | Silver |
| Input Connection Type | 3-Pin, Pigtail |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Length | 48 in. (4 ft) |
| Lens Type | Polycarbonate |
| Linkable | Yes |
| Lumens | 1950 Lumens, 2600 Lumens, 3120 Lumens |
| Max Run | 12 |
| Mount Type | Surface Mount |
| Operating Voltage | 120 VAC |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | 15 Watts, 20 Watts, 24 Watts |
| Wire Gauge | 18 AWG |
| Part NO | Lens Color |
|---|---|
| IT8-SW3H-C24 | Clear |
| IT8-SW3H-F24 | Frosted |
