8" Commercial Recessed LED Downlight - Dimmable - Selectable CCT and Wattage - Up to 3,960 Lumens - Single / 4-Pack
Part Number:
CDL8D-SW5A-SP36W-x
Manufacturer Part Number:
Starting at
$44.99
ea.
Starting at
Was
Features
- Adjustable CCT options: 2700K, 3000K, 3500K, 4000K, and 5000K
- Selectable wattage settings: 18W, 27W, or 36W
- IC-rated for safe, direct insulation contact
- Spring-loaded clips enable fast and secure ceiling installation
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview

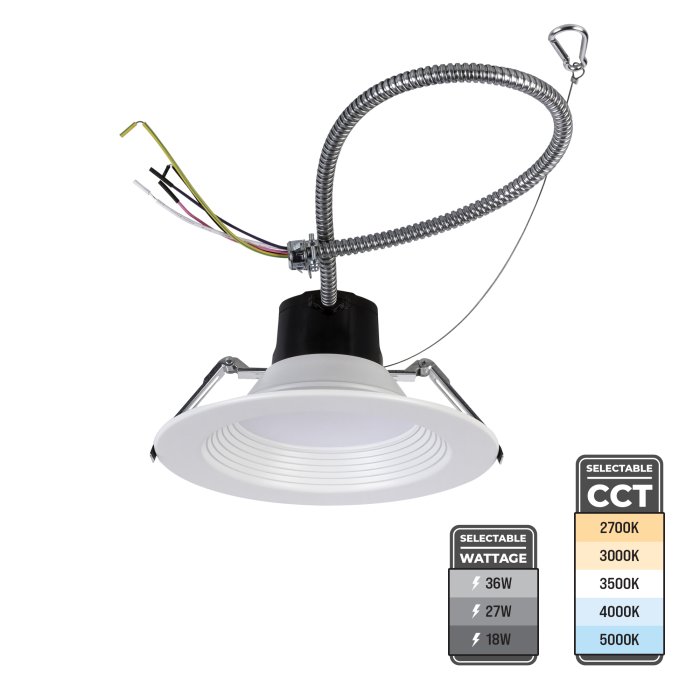

The 8" LED Commercial Recessed Downlight offers versatile and energy-efficient lighting for new construction, remodels, and retrofit projects. With field-selectable wattage (18 W, 27 W, or 36 W) and color temperatures ranging from 2700K to 5000K, this fixture adapts easily to your project needs. Spring clips allow for quick installation into 8" diameter recessed frames, while the frosted lens provides smooth, glare-free illumination. Designed for convenience and safety, the downlight includes a steel safety cable with a carabiner and a 15.75" electrical wire whip with a ½" knockout connector. Its white aluminum trim complements a variety of interior designs, making it suitable for commercial and residential spaces.
Product Details:
- IP20, Suitable for damp locations
- Selectable switches are located on the back of the fixture
- 90+ CRI
- 0–10 V dimmable
- 15.75" flexible electrical wire whip with 1/2" knockout snap-in connector
- 120-347 VAC
- ETL Listed
- 5-year warranty
CDLxD-SW5A User Manual Applications:
- Auditoriums
- Commercial Downlights
- Conference Halls
- Hospitality
- Hospitals
- New Construction
- Offices
- Retail Shops
- Retrofit Lighting
- Schools
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
IC Rated
IC (Insulation Contact) Rated An IC-rated fixture is designed to operate in direct contact with insulation material. Its rating indicates that the fixture has added thermal protection, minimizing fire hazards.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
ETL Listed |
|
CRI
CRI
|
90+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
150/225/300 mA @ 120 VAC, 65/97/130 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 110 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 1980 Lumens, 2970 Lumens, 3960 Lumens |
| Operating Voltage | 120-347 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | 18 Watts, 27 Watts, 36 Watts |
| Part NO | IC Rated |
|---|---|
| CDL8D-SW5A-SP36W | Yes |
| CDL8D-SW5A-SP36W-4PK |
