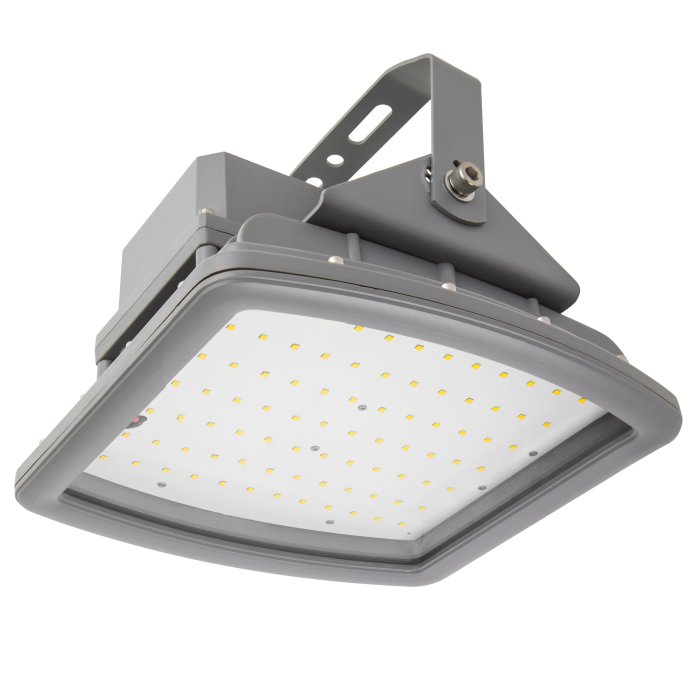

100W Explosion Proof LED Flood Light - 12,500 Lumens - Class 1 Div 2 - 250W MH Equivalent - 5000K
Part Number:
CES-100W-120V-5000K
Manufacturer Part Number:
CES-J100
$519.99
ea.
Was
In Stock
Features
- Explosion proof for Class I, Division 2 hazardous locations
- 100W LED replaces a 250W metal-halide fixture
- T6 Temperature Rating
- Integrated yoke mount allows secure installation on a variety of surfaces
- UL 844 Listed for use in hazardous locations
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The 100W LED Explosion Proof Flood Light delivers 12,500 lumens for Class I, Division 2 hazardous locations. Designed for environments with flammable gases or vapors, this fixture is sealed against ignition sources and engineered for long-term, low-maintenance performance. At only 100 watts, it replaces a 250W metal-halide fixture while reducing energy usage and maintenance costs. The fixture’s heavy-duty die-cast aluminum body and tempered glass lens are IP67-rated, offering complete ingress protection against dust, water immersion, and chemical exposure. The integrated yoke mount simplifies secure installation on flat or angled surfaces in refineries, wastewater facilities, or other hazardous environments.
Product Details:
- Die-cast aluminum housing; tempered glass lens
- IP67 Waterproof
- 5000K Cool White
- Included yoke bracket
- 120-277 VAC
- 5-year warranty
Ledsion CES-J Series Explosion Proof Flood Light Specification Sheet Applications:
- Gas And Oil Refineries
- Gas Stations
- Military And Aerospace Facilities
- Mining Lights
- Steel Mills
- Wastewater and Sewage Plants
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Specifications
| Ambient Operating Temperature | -40 to 55 °C (-40 to 131 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | LEDSION |
|
CCT
CCT
 |
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC |
|
CRI
CRI
 |
70+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
830 mA @ 120 VAC, 360 mA @ 277 VAC |
| Dimmable | No |
| DLC Product ID | S-9LMBZ3 |
| Efficacy | 125 lm/W |
|
Environmental Rating
Environmental Rating
 |
Suitable for Wet Locations, Waterproof |
| Equivalency | 250 Watt Metal Halide |
| Finish | Gray |
|
Hazardous Location Rating
Hazardous Location Rating
 |
Class I, Division 2, Groups A, B, C, D |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP67 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Clear |
| Lens Type | Tempered Glass |
| Lumens | 12500 Lumens |
| Manufacturer Part Number | CES-J100 |
| Mount Type | Yoke Bracket |
| Operating Voltage | 100-277 VAC |
| Product Materials | Aluminum Housing, Glass Lens |
| Product Weight | 16.4 lb (7.4 kg) |
| Warranty | 5 Year |
| Wattage | 100 Watts |
| Wire Length | 21 in. |
