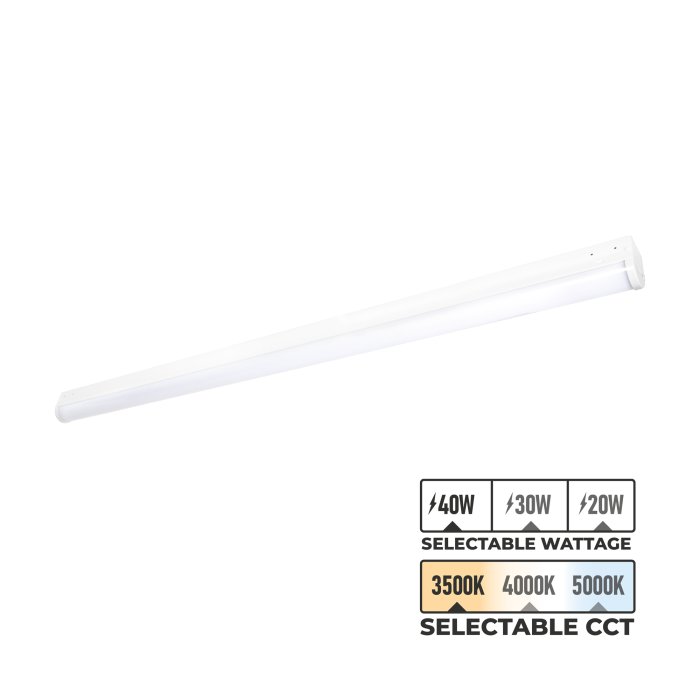

Day-Brite 4 ft. LED Strip Light Fixture - Selectable Wattage and CCT - Up To 4,850 Lumens - 3500K / 4000K / 5000K
Part Number:
190096131570
Manufacturer Part Number:
SDS42448L8CST-UNV-DIM
$78.99
ea.
Was
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Selectable wattage options: 20 W, 30 W, 40 W
- Adjustable color temperatures: 3500K, 4000K, 5000K
- Replaces up to three 32W T8 fluorescent tubes
- High efficacy at 120 lumens per watt
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Overview
The Day-Brite 4 ft. LED strip light fixture offers an energy-efficient and versatile solution for various applications with selectable wattage and CCT, allowing fine-tuning of light output and color temperature. Housed in a durable white steel body with a curved polycarbonate lens, this fixture delivers even light distribution ideal for utility spaces. The light fixture provides an efficient output of up to 4,850 lumens at 120 lumens per watt, and its 0-10V dimming capability ensures smooth brightness adjustments. It serves as a direct equivalent to 3-lamp 32W T8 fixtures, making it a practical choice for damp environments such as basements, garages, and workshops.
Product Details:
- White steel housing with curved, polycarbonate lens
- Surface mounting
- Efficient 120 lm/w operation
- 0-10V dimmable
- 120-277 VAC
- UL Listed
- DLC 5.1 Standard
- 5-year warranty
Documents
SDS LED Selectable Strip EN Instruction Sheet
SDS42448L8CST-UNV-DIM 20W-3500K IES File Applications:
- Conference Rooms
- Drop Ceilings
- Hospitality
- Hospitals
- Linear Fluorescent Fixtures
- Offices
- Strip Fixtures
- Suspended Grid Ceilings
- Wraparound Fixtures
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Beam Angle | 120° |
| Brand | Day-Brite CFI |
|
CCT
CCT
|
3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, UL Listed (cULus) |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
190/280/370 mA @ 120 VAC, 80/120/160 mA @ 277 VAC |
| Dimensions | 4ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | PLLJC55HRPZT |
| Efficacy | 121 lm/W |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 32W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Length | 48 in. (4 ft) |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Linkable | No |
| Lumens | 2430 Lumens, 3640 Lumens, 4850 Lumens |
| Manufacturer Part Number | SDS42448L8CST-UNV-DIM |
| Microwave Motion Sensor | None |
| Mount Type | Surface Mount |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Polycarbonate Lens, Steel Housing |
| UL File Number | E342361 |
| Warranty | 5 Year |
| Wattage | 20 Watts, 30 Watts, 40 Watts |
