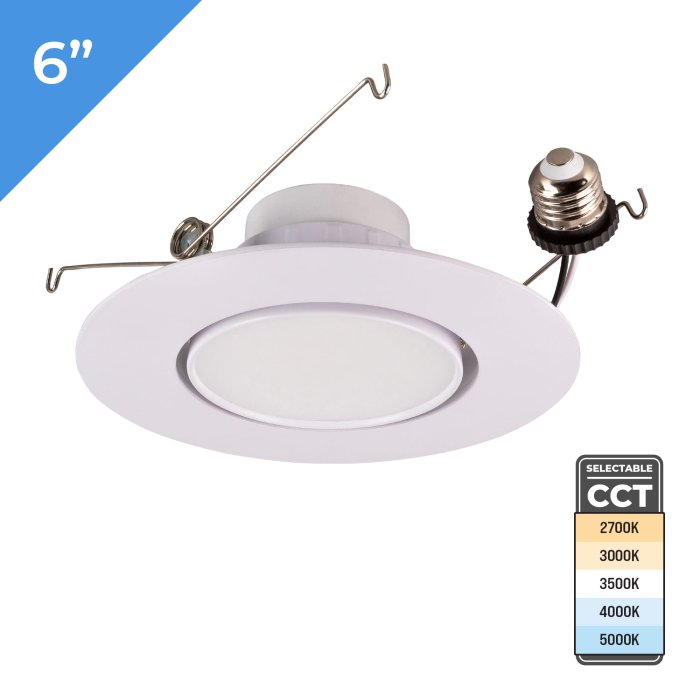

6" 16W Gimbal Trim Recessed Retrofit LED Downlight - Selectable CCT - 75W Incandescent Equivalent - TRIAC Dimmable - Up to 1,195 Lumens
Part Number:
DLG6D-K1-SW5A16
Manufacturer Part Number:
$16.99
ea.
Was
In Stock
Features
- 360° rotatable gimbal with 60° tilt for precise aim
- Selectable CCT with five options: 2700K, 3000K, 3500K, 4000K, or 5000K
- 90+ CRI ensures accurate, vibrant color rendering
- Energy-efficient replacement for a 75W incandescent bulb
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The 16W 6" Gimbal Trim Recessed LED Downlight offers versatile and directional lighting with a 360° rotating gimbal and 60° tilt, ideal for accent or task lighting. It is designed to fit into standard 6" recessed housings and provides an easy retrofit solution for existing can lights. The downlight features five selectable CCT options (2700K, 3000K, 3500K, 4000K, 5000K) for adjustable lighting. The TRIAC dimming allows for smooth, flicker-free light control. Delivering up to 1,195 lumens, it efficiently replaces a 75W incandescent bulb. Installation is easy and tool-free with the E26 screw-base adapter.
Product Details:
- Die-cast aluminum housing
- Frosted polycarbonate lens
- Suitable for damp locations
- 100° beam angle
- E26 screw-base adapter
- Recessed mounting
- 120 VAC
- ETL Listed
- 5-year warranty
DLGxD Specification Sheet Applications:
- Basements
- Bathrooms
- Living Rooms
- Offices
- Retail Shops
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets California Energy Commission (CEC) Title 24 JA8 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).
Title 24 encompasses regulations for energy conservation, green design, construction, maintenance, fire and life safety, and accessibility in both residential and non-residential buildings across California, covering structural, mechanical, electrical, and plumbing systems. Implemented on January 1, 2017, these Building Energy Efficiency Standards include the Joint Appendix Section 8 (JA8) requirements for residential buildings, which are akin to Title 20 requirements, featuring L/W prerequisites. Compliance with Title 24 entails:
- CRI greater than 90
- R9 greater than 50 (R9 color rendering value indicates how well your lighting will highlight red colors)
- CCT under 4000K
- 6,000-hour lumen maintenance greater than or equal to 86.7%
- Rated life greater than or equal to 15,000 hours
- 10% dimming
- Flicker less than 30% for 200 Hz or below at 100% and 20% levels
- Noise less than 24 dB at 100% and 20%
- Label (either JA8-2016 or JA8-2016-E) on bulb
- Immediate start time (0.5 seconds or less)
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 100° |
| Brand | Super Bright LEDs |
| Can Size | 6 inch |
|
CCT
CCT
|
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
CEC Title 24 JA8 Compliant, ETL Listed |
|
CRI
CRI
|
90+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
145 mA |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
TRIAC |
| Efficacy | 75 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Damp Locations |
| Equivalency | 75 Watt Incandescent |
| Finish | White |
| Input Connection Type | E26 (Medium Base) |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 1195 Lumens |
| Operating Voltage | 120 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 1.1 lb (0.5 kg) |
| Warranty | 5 Year |
| Wattage | 16 Watts |
