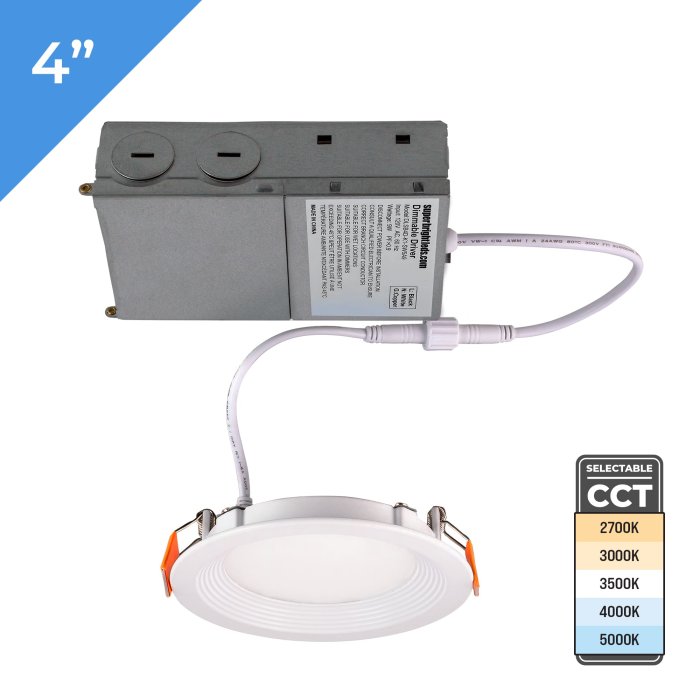

4" 9W Ultra-Thin Baffle Trim LED Downlight - Selectable CCT - 60W Incandescent Equivalent - TRIAC Dimmable - Up to 700 Lumens
Part Number:
DLSB4D-K1-SW5A9
Manufacturer Part Number:
$8.99
ea.
Was
In Stock
Features
- Selectable CCT with five options: 2700K, 3000K, 3500K, 4000K, or 5000K
- Baffle trim reduces glare for eye-friendly lighting
- Compatible with TRIAC dimmers for smooth, flicker-free light control
- 90+ CRI ensures accurate, vibrant color rendering
- Energy-efficient replacement for a 60W incandescent bulb
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The 9W 4" Ultra-Thin Baffle Trim LED Downlight offers an ultra-slim profile designed for efficient, space-saving installation. With selectable CCT (2700K, 3000K, 3500K, 4000K, 5000K), this downlight adapts to various environments, delivering up to 700 lumens as an energy-efficient replacement for a 60W incandescent bulb. The TRIAC dimmable feature ensures smooth, flicker-free dimming, while the 90+ CRI provides excellent color accuracy. Constructed with a durable die-cast aluminum housing and a frosted polystyrene lens for even light diffusion. Install the downlight using the included template and secure into a 4 21/64" (110mm) hole using the spring retention clips. This fixture is suitable for both retrofit and new construction applications.
Product Details:
- Die-cast aluminum housing
- Frosted polystyrene lens
- 100° beam angle
- Rececssed mount
- Fits 4 21/64" (110mm) hole
- 120 VAC
- ETL Listed
- 5-year warranty
Documents
DLSBxD User Manual Applications:
- Art Galleries
- Basements
- Bathrooms
- Commercial Downlights
- Home Bars
- Home Theaters
- Kitchens
- Living Rooms
- Offices
- Residential Downlights
- Retail Shops
- Retrofit Lighting
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets California Energy Commission (CEC) Title 24 JA8 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).
Title 24 encompasses regulations for energy conservation, green design, construction, maintenance, fire and life safety, and accessibility in both residential and non-residential buildings across California, covering structural, mechanical, electrical, and plumbing systems. Implemented on January 1, 2017, these Building Energy Efficiency Standards include the Joint Appendix Section 8 (JA8) requirements for residential buildings, which are akin to Title 20 requirements, featuring L/W prerequisites. Compliance with Title 24 entails:
- CRI greater than 90
- R9 greater than 50 (R9 color rendering value indicates how well your lighting will highlight red colors)
- CCT under 4000K
- 6,000-hour lumen maintenance greater than or equal to 86.7%
- Rated life greater than or equal to 15,000 hours
- 10% dimming
- Flicker less than 30% for 200 Hz or below at 100% and 20% levels
- Noise less than 24 dB at 100% and 20%
- Label (either JA8-2016 or JA8-2016-E) on bulb
- Immediate start time (0.5 seconds or less)
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 100° |
| Brand | Super Bright LEDs |
| Can Size | 4 inch |
|
CCT
CCT
|
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
CEC Title 24 JA8 Compliant, ETL Listed |
|
CRI
CRI
|
90+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
80 mA |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
TRIAC |
| Efficacy | 78 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations |
| Equivalency | 60 Watt Incandescent |
| Finish | White |
| Input Connection Type | Pigtail |
| IC Rated | Yes |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 700 Lumens |
| Operating Voltage | 120 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 1.0 lb (0.5 kg) |
| Warranty | 5 Year |
| Wattage | 9 Watts |
