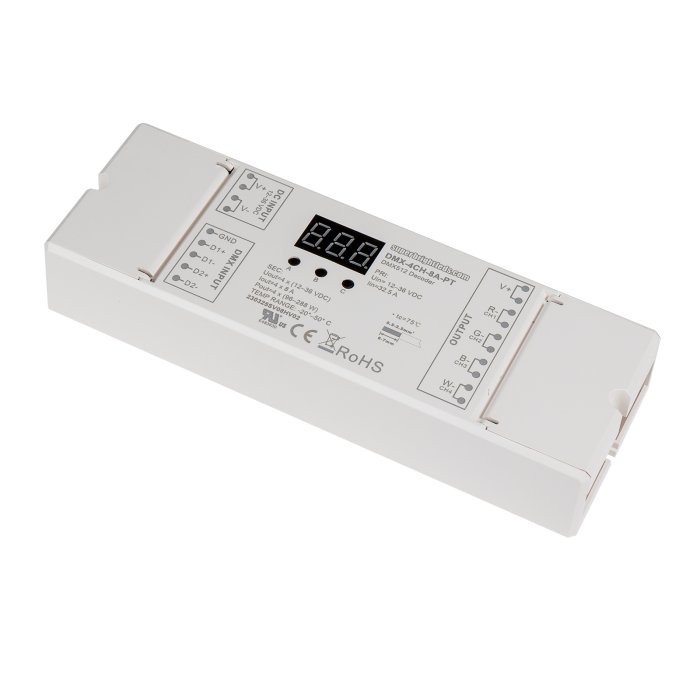

4-Channel LED DMX512 and RDM Digital Decoder - 8 A/CH - Digital Display - 12-36 VDC
Part Number:
DMX-4CH-8A-PT
Manufacturer Part Number:
$74.99
ea.
Was
In Stock
Similar Products Available Today
Features
- Converts DMX512 for single-color, RGB, RGBW and tunable white LED lighting
- Adjustable PWM frequency for flicker-free lighting
- Easy-to-use digital display
- 8A per channel, 32A max total output
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Most Popular Compatible Products
Overview
The 4-channel DMX RDM digital decoder features RDM bi-direction communication enabling it to detect and display decoder information. This low-voltage DMX decoder controls up to four channels. It converts DMX512 signal to control single-color, RGB, RGBW, and tunable white LED lights with an easy-to-use digital interface. The digital display shows the selectable DMX address, PWM frequency, and dimming curve settings. The PWM frequency is adjustable from 200 Hz to 35 kHz (1 kHz default) for flicker-free lighting in video and photography applications. It has a maximum of 8A per channel and a total of 1,152 watts at 36 VDC.
Product Details:
- Screw terminal connections for input and output
- PWM frequency: 200 Hz to 35 kHz (1 kHz default)
- Dimming curve gamma value: 0.1 - 9.9 (1.0 default)
- 12 VDC - 96 watts per channel
- 24 VDC - 195 watts per channel
- 36 VDC - 292.5 watts per channel
- Up to 1,152 watts total
- IP20 rated - non-weatherproof
Documents
DMX-4CH-8A-PT User Manual Dimensional Drawings
Applications:
- Broadcast Studios
- Photography Lighting
- Stage & Theaters
- Studios
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20 to 50 °C (-4 to 122 °F) |
|---|---|
| Amps | 32 Amps |
| Amps Per Channel | 8 Amps/CH |
| Control Type | DMX512, RDM Decoder |
| DMX In/Out | Screw Terminals |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof |
| Input Connection Type | Screw Terminal |
|
IP Rating
IP Rating
 |
IP20 |
| Max Input Current | 32.5 A |
| Max Wattage | 384W @ 12 VDC, 768W @ 24 VDC, 1152W @ 36 VDC |
| Number of Channels | 4 Channels |
| Product Materials | Plastic |
| Voltage | 12-36 VDC |
| Warranty | 2 Year |
