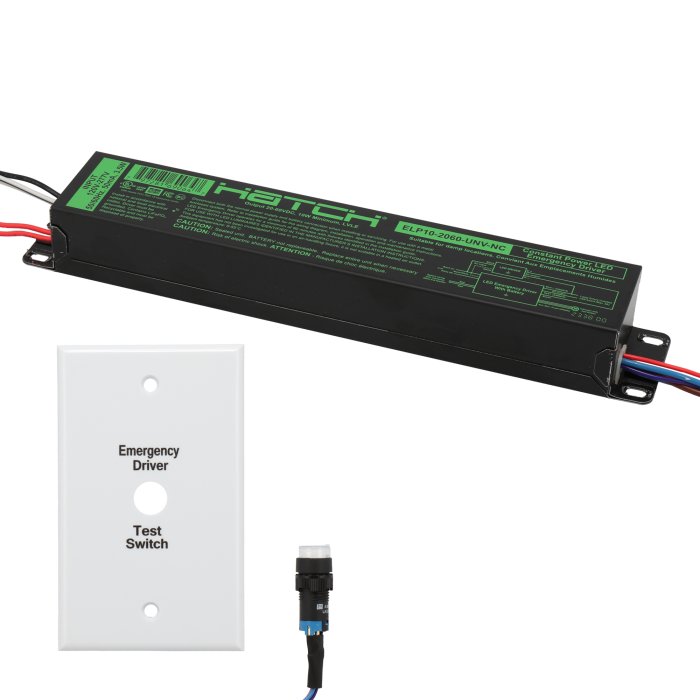

Hatch High-Efficiency LED Emergency Driver - 10W - 120-277 VAC Input

brand logo
Part Number: ELP10-2060-UNV-NC
Manufacturer Part Number:
$73.99 ea.
In Stock
box-open-solid
truck-fast-solid
Free Shipping
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • 90 minutes emergency operation on 24-hour charge
  • 120-277 VAC
  • Wires directly to fixture's AC input
  • Supports a fixture up to 10W
  • Includes test switch and integrated charge indicator
  • UL Listed
View more details

Overview

The Hatch High-Efficiency LED Emergency Driver complies with California Energy Commission (CEC) Title 20 efficiency standards and is listed in the CA Title 20 Appliance Efficiency Database. Designed with a wide input voltage range of 120-277 VAC, it supports LED fixtures up to 10W. This battery backup enables LED fixtures to function during both normal and emergency conditions. In the event of a power outage, it automatically switches to emergency mode, providing at least 90 minutes of illumination. The unit also features a test switch with a built-in charge indicator for easy monitoring.


Product Details:

  • Durable metal housing
  • Suitable for dry locations
  • LiFePO4 battery
  • UL Listed
  • 5-year warranty

Package Includes:

  • 1 - LED Emergency Driver
  • 2 - Tek Screws
  • 1 - Wall Plate
  • 1 - Test Button
  • 1 - Luminaire Mod. Label
  • 1 - Installation Guide
  • 3 - Twist-on Wire Connectors
  • 2 - Wall Plate Screws

Documents
Applications:
  • Commercial Downlights
  • Emergency Lights
  • Linear High Bays
  • Linear Strip Fixtures
  • Panel Lights
  • Troffer Fixtures
5 Years
5 Years
5 Years
5 Years
UL Listed
UL Listed
UL Listed
UL Listed
Class 2
Class 2
Class 2
Class 2
FCC
FCC
FCC
FCC
CEC Title 20 Compliant
CEC Title 20 Compliant
CEC Title 20 Compliant
CEC Title 20 Compliant
UL 924
UL 924
UL 924
UL 924

Specifications

Ambient Operating Temperature Range 0 to 55 °C (32 to 131 °F)
Battery Type LiFePO4
Brand Hatch Lighting
Certifications/Compliance Click for more information about this specification CEC Title 20 Compliant, Class 2, FCC, UL Listed
Dimmable No
Emergency Operation Time 90+ Minutes
Environmental Rating Click for more information about this specification Suitable for Dry Loactions
Input Connection Type Pigtail
Input Voltage 120-277 VAC
Output Connection Type Pigtail
Output Current 518mA @ 20 VDC, 179mA @ 58 VDC
Output Power Click for more information about this specification 10 Watts
Output Voltage 20-60 VDC
Recharge Time 24 Hours
Warranty 5 Year
Wire Gauge 18 AWG, 22 AWG
printer Print Specifications

All specifications are subject to change without notice. All products are RoHS compliant.
