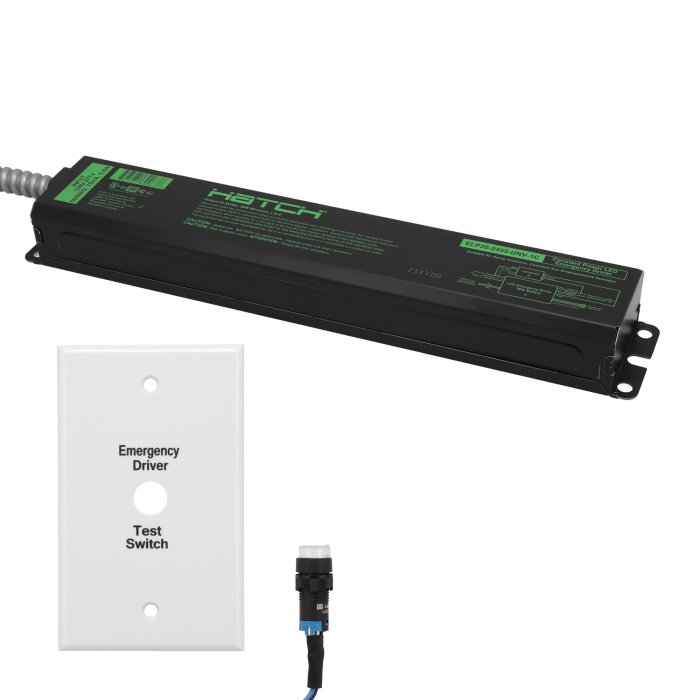

Hatch High Efficiency LED Emergency Driver - 20W - 120-277 VAC
Part Number:
ELP20-2455-UNV-1C
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- 90 minutes emergency operation on 24-hour charge
- 120-277 VAC
- Wires directly to fixture's AC input
- Supports a fixture up to 20W
- Includes test switch and integrated charge indicator
- UL Listed
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Most Popular Compatible Products
Overview
The Hatch LED Emergency Driver delivers high-efficiency performance that complies with California Energy Commission (CEC) Title 20 standards and is listed in the CA Title 20 Appliance Efficiency Database. Designed with a broad input voltage range of 120–277 VAC, it supports LED fixtures up to 20W. This driver enables the same LED fixture to function in both standard and emergency lighting modes. During a power outage, it automatically switches to emergency mode, providing illumination for a minimum of 90 minutes. Each emergency driver comes equipped with a test switch and an integrated charge indicator for easy maintenance and monitoring.
Product Details:
- Durable metal housing
- Suitable for dry locations
- LiFePO4 battery
- UL Listed
- 5-year warranty
Package Includes:
- 1 - LED Emergency Driver
- 2 - Tek Screws
- 1 - Wall Plate
- 1 - Test Button
- 1 - Luminaire Mod. Label
- 1 - Installation Guide
- 3 - Twist-on Wire Connectors
- 2 - Wall Plate Screws
Documents
ELP Emergency LED Driver Installation Guide Dimensional Drawings
Applications:
- Commercial Downlights
- Emergency Lights
- Linear High Bays
- Linear Strip Fixtures
- Panel Lights
- Troffer Fixtures
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Class 2
Class 2 power supplies must meet the National Electric Code (NEC) and Underwriters Laboratories (UL 1310) standards for wiring requirements and power limitations of AC/DC power supplies to minimize shock or fire risks. All Class 2 power supplies must meet the NEC overcurrent protection and wiring sizing regulations. They must be constructed with ‘In-Wall’ rated wiring for permanent installation inside walls or floors, where they may be surrounded by insulation. These wiring requirements help prevent cracking or melting of the wire, which could cause a fire hazard. These power supplies must have a maximum power capacity of 100 VA and cannot exceed a 30 VAC or 60 VDC output, minimizing the risk of electric shock or overheating from excessive currents.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
This product meets California Energy Commission (CEC) Title 20 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).
CEC California Title 20 mandates that consumer products sold in the state meet specified energy efficiency standards, aiming to reduce energy consumption and promote environmental sustainability. Manufacturers must ensure their products consume less energy while maintaining or improving performance compared to less efficient models to comply with these regulations.
- CRI 82 or higher
- Compliance score 297 or higher
- Minimum L/W 45 (GSL) or 80 (SLED, SSDL)
- Power factor greater than 0.7
- Hour rated life greater than 10,000 hours (25,000 for MR16s)
- ENERGY STAR® V2.0 omnidirectional light distribution for A-bulbs
- ENERGY STAR V1.1 light distribution for decorative bulb shapes
- Dimmable bulbs: Dimmable to 10%, reduce flicker, noise less than 24 dB at 100% and 20%
Specifications
| Ambient Operating Temperature Range | 0 to 55 °C (32 to 131 °F) |
|---|---|
| Battery Type | LiFePO4 |
| Brand | Hatch Lighting |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
CEC Title 20 Compliant, Class 2, FCC, UL Listed |
| Dimmable | No |
| Emergency Operation Time | 90+ Minutes |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Dry Locations |
| Input Connection Type | Pigtail |
| Input Voltage | 120-277 VAC |
| Output Connection Type | Pigtail |
| Output Current | 833mA @ 24 VDC, 363mA @ 55 VDC |
|
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
20 Watts |
| Output Voltage | 24-55 VDC |
| Recharge Time | 24 Hours |
| Warranty | 5 Year |
| Wire Gauge | 18 AWG, 22 AWG |
