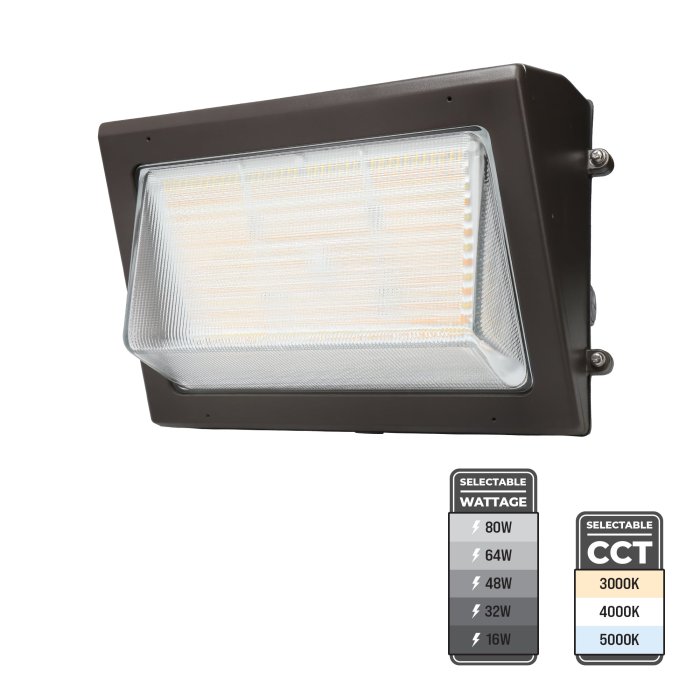

Euri Lighting LED Wall Pack - Bypassable Photocell - Selectable Wattage and CCT- Up To 11,600 Lumens - 3000K / 4000K / 5000K
Part Number:
EWP-80W103sw
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- Five selectable wattage and three selectable CCT options for various applications
- Integrated bypassable photocell for dusk-to-dawn operation
- Wide 110° light distribution
- Waterproof aluminum construction
- DLC 5.1 Premium
Most Popular Compatible Products
Overview
The Euri Lighting LED Wall Pack offers versatile outdoor lighting with selectable color temperatures of 3000K, 4000K, and 5000K, and five wattage options (16W, 32W, 48W, 64W, 80W) to suit various applications. Its 110° beam angle ensures broad coverage, making it ideal for large outdoor areas. The robust aluminum housing and polycarbonate lens provide IP65-rated protection against water and dust, enhancing durability in harsh environments. For additional customization, the integrated photocell can be bypassed by disconnecting the sensor internally, giving you full control over the lighting operation. This fixture is also compatible with 0-10V dimming systems, allowing for precise light level adjustments.
Product Details:
- Aluminum housing and a polycarbonate lens
- IP65 waterproof
- 0-10V dimmable
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
EWP-80W103sw Specification Sheet Dimensional Drawings
Applications:
- Building Exteriors and Facades
- Commercial Buildings
- Commercial Lighting
- Gas Stations
- Industrial Facilities
- Parking Garages
- Parking Lots
- Security Lighting
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -40 to 50 °C (-40 to 122 °F) |
|---|---|
|
Beam Angle
Beam Angle
Beam angle is used to express the angular dimension of light emitted from its source. The narrower the beam angle the more focused the light. Comparing two lights with the same lumen output, one with a 30° beam angle and another with a 90° beam angle, the 30° will appear brighter compared to the 90°, while the 90° will illuminate a larger area. Lights with a symmetrical output may have a beam angle expressed with a single value (e.g. W 120° x H 120° will be shown as 120°). Bulbs will typically have a single value expressing the outward beam angle projected at 360° (e.g. 120° is actually 360° x 120°).
|
110° |
| Brand | Euri |
|
CCT
CCT
 |
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
145/295/440/590/740 mA @ 120 VAC, 64/125/190/255/320 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | PL8LERTEO9VY |
| Efficacy | 157 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Equivalency | 250 Watt Metal Halide |
| Finish | Bronze |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable White |
| Rated Life (L70) | 50000 Hours |
| Lens Color | Prismatic |
| Lens Type | Polycarbonate |
| Lumens | 2500 Lumens, 5000 Lumens, 7250 Lumens, 9500 Lumens, 11600 Lumens |
| Microwave Motion Sensor | None |
| Operating Voltage | 120-277 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work? When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed? Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting Cap Photocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide Switch While DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the Wiring Some photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
Integrated Photocell (Bypassable) |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 8.1 lb (3.7 kg) |
| UL File Number | E502195 |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 16 Watts, 32 Watts, 48 Watts, 64 Watts, 80 Watts |
| Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
