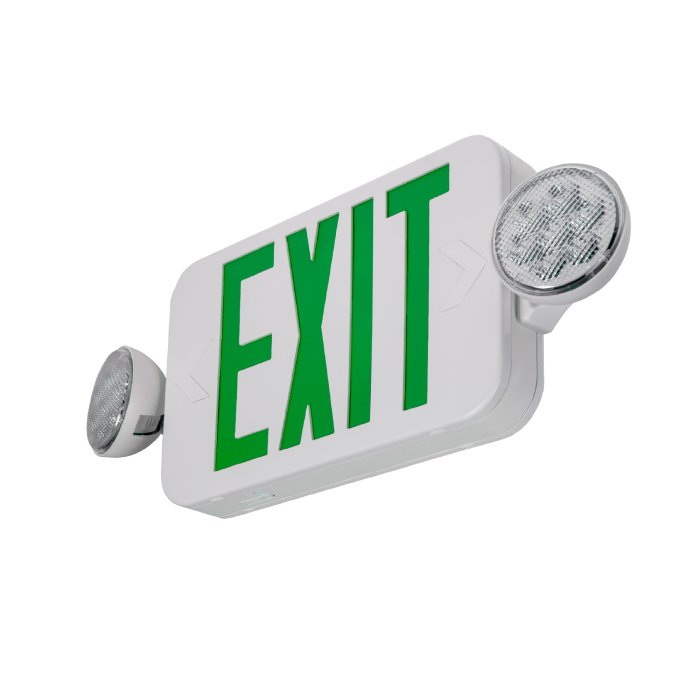

MaxLite Combination Emergency Exit Light - Adjustable Light Heads - Emergency Backup Battery - Green
Part Number:
EXC-GWRC
Manufacturer Part Number:
Discontinued
Features
- Flame-rated thermoplastic, high-impact UV stabilized
- Dual adjustable light heads
- NiCad backup battery
- AC-On and test switch indicator
- Single- or double-sided with removable chevrons
Most Popular Compatible Products
Overview
MaxLite Combination Emergency Exit Light features dual adjustable light heads and a white, flame-rated thermoplastic housing. The housing is UV-stabilized for high-impact environments to resist discoloration and degradation over time. In the event of power loss, the integrated NiCad battery supplies at least 90 minutes of emergency lighting on a 24-hour charge. Both lamp heads offer a full range of horizontal and vertical adjustments, ensuring precise light distribution throughout hallways, walkways, or other emergency egress paths. This fixture can be installed on the ceiling using the included mounting bracket.
Product Details:
- High-impact, UV-stabilized, flame-rated thermoplastic housing
- Green lettering
- Two adjustable light heads
- Wall or ceiling mounting
- 120 or 277 VAC
- 5-year warranty
EX Exit Lights User Manual Dimensional Drawings
Applications:
- Emergency Lights
- Hallways
- Public Safety
- Retail Shops
- Safety and Egress Code Compliance
- Security Lighting
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | 20 to 30 °C (68 to 86 °F) |
|---|---|
| Battery Type | NiCad |
| Brand | MaxLite |
|
CCT
CCT
 |
6500K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
10 mA @ 277 VAC, 30 mA @ 120 VAC |
| Dimmable | No |
| Emergency Operation Time | 90+ Minutes |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Damp Locations |
| Finish | White |
| Input Connection Type | Pigtail |
| LED Color | Cool White, Green |
| Lumens | 126 Lumens |
| Operating Voltage | 120 VAC, 277 VAC |
| Product Materials | Fire Retardant ABS |
| Product Weight | 2.4 lb (1.1 kg) |
| Recharge Time | 24 Hours |
| Warranty | 5 Year |
| Wattage | 3.9 Watts |
