Sensor Ready LED UFO High Bay - Up to 80,000 Lumens - Field Selectable CCT and Wattage - Optional Networked Lighting Controls
Part Number:
HBUD3-SW3B500S-HDGDY-x
Manufacturer Part Number:
$399.99
ea.
Was
Out of Stock
Backorder Available
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Sensor-ready functionality for easy installation of compatible sensors
- Selectable CCT and wattage
- Replaces a 1,500W metal halide
- 160 lm/W efficacy
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Most Popular Compatible Products
Overview

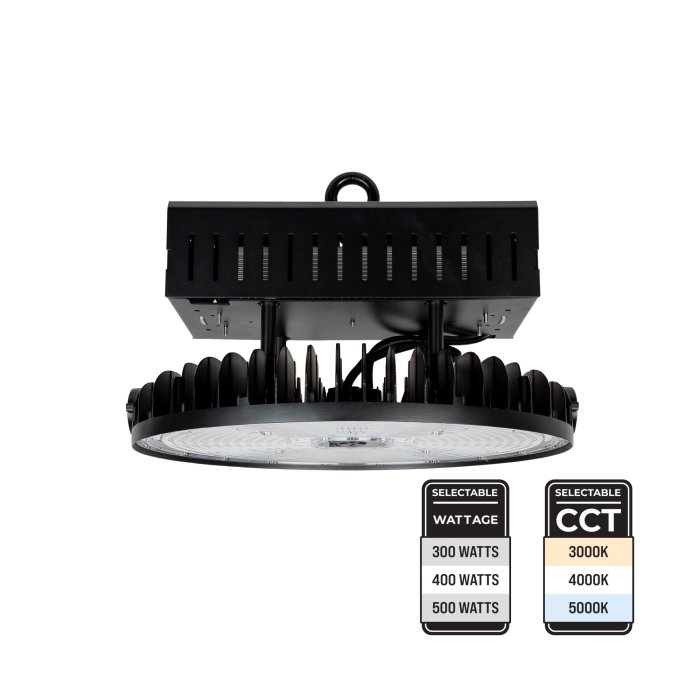

The LED UFO High Bay Light offers a sensor-ready design, simplifying the integration of motion sensors for automatic lighting control. Easily install the included Bluetooth MESH motion sensor into the port at the center of the lens for efficient operation and optimal energy savings. This high bay features selectable wattage (300W, 400W, 500W) and color temperature (3000K, 4000K, 5000K), allowing for versatile lighting customization. With a high efficacy of 160 lm/W, this fixture replaces 1,500W metal halide fixtures and supports 0-10V dimming for precise brightness control. Its durable black powder-coated housing, clear lens, and 90° beam angle ensure uniform lighting in large spaces. The fixture includes a polycarbonate reflector for a traditional look and is ideal for industrial and commercial applications. An optional Bluetooth MESH Motion Sensor can be used for efficient operation and optimal energy savings.
Product Details:
- Black powder-coated aluminum housing
- Clear polycarbonate lens
- IP65 waterproof, suitable for wet locations
- 90° beam angle
- 0-10V Dimmable
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
Documents
HBUD3 User Manual
HBUD3-SW3B500S-HDGDY 40K 300W IES File Dimensional Drawings
Applications:
- Distribution Centers
- Factories
- Gymnasiums
- Manufacturing Plants
- Packaging Facilities
- Retail Shops
- Supermarkets
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
NLC
NLC - This product meets the Design Lights Consortium (DLC) requirements for interior and exterior networked lighting control (NLC) systems. For more information, see the NLC Technical Requirements on the DLC site.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Beam Angle | 90° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium, IK08 |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.7/3.7/4.6 A @ 120 VAC, 1.2/1.6/2.0 A @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| DLC Product ID | S-R7T74B |
| Efficacy | 160 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Equivalency | 1000 Watt Metal Halide, 1500 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 48000 Lumens, 64000 Lumens, 80000 Lumens |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 16.8 lb (7.6 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 300 Watts, 400 Watts, 500 Watts |
| Part NO | Wire Gauge |
|---|---|
| HBUD3-SW3B500S-HDGDY | 18 AWG (L/N/G) |
| HBUD3-SW3B500S-HDGDY-NLC | 18 AWG (L/N/G), 22 AWG (dimming) |
