Sensor Ready UFO LED High Bay - Up To 38,400 Lumens - Selectable CCT and Wattage - 3000K / 4000K / 5000K - 150W / 200W / 240W - Optional Networked Lighting Controls
Part Number:
HBUD3-SW3B240S-CDGLY
Manufacturer Part Number:
$102.99
ea.
Was
Out of Stock
Backorder Available
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Sensor port for optional motion sensor
- Selectable CCT and wattage
- 1,000-watt MH equivalent
- High 160 lm/W efficiency
- 5-year warranty
- DLC 5.1 Premium
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview

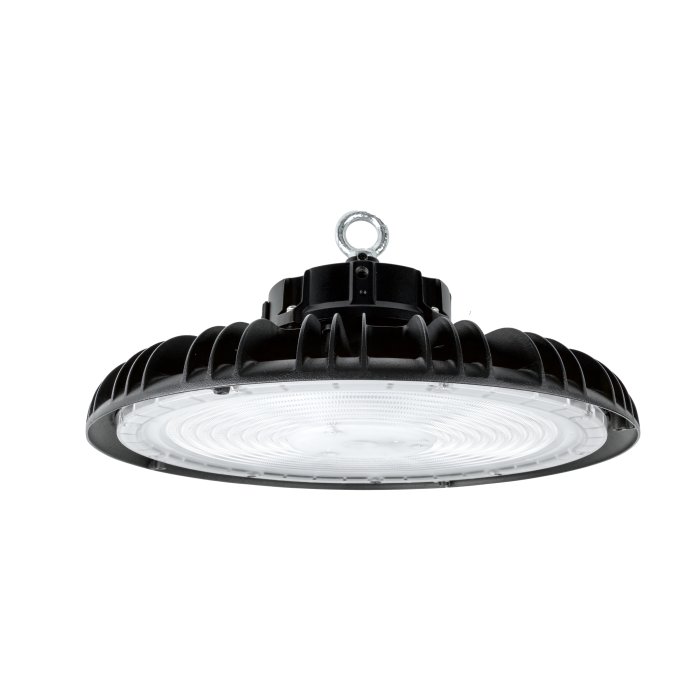

The UFO LED High Bay with reflector provides flexible lighting solutions with selectable wattage options of 150 W, 200 W, or 240 W and color temperatures of 3000K, 4000K, and 5000K, making it ideal for various industrial and commercial settings. Select the color temperature and wattage level using the switches on the side of the fixture. Its sensor-ready port seamlessly integrates a daylight harvesting motion sensor for automatic lighting control. This fixture delivers up to 38,400 lumens and effectively lights large areas with a broad 90° beam angle. Constructed with durable aluminum and outfitted with a stainless steel eye bolt and safety cable for secure installation. This high bay can be customized with an optional reflector for a classic look.
Upgrade your UFO lights using Keilton's plug-and-play Network Controls with Bluetooth MESH connectivity. Create a wireless network among your UFO lights, all controlled from your mobile device using the Keilton® App. Program your lighting system with the app to significantly reduce energy consumption and increase cost savings by wirelessly powering your lights on and off, managing fixture brightness, and setting schedules.
Upgrade your UFO lights using Keilton's plug-and-play Network Controls with Bluetooth MESH connectivity. Create a wireless network among your UFO lights, all controlled from your mobile device using the Keilton® App. Program your lighting system with the app to significantly reduce energy consumption and increase cost savings by wirelessly powering your lights on and off, managing fixture brightness, and setting schedules.
Product Details:
- Aluminum housing with stainless steel eye bolt
- Polycarbonate lens
- IP65 waterproof, suitable for wet locations
- Networked Lighting Controls (NLC) optional
- 0-10 V dimmable
- 100-277 VAC
- Surge protection: 6 kV (L-N, L/N-PE)
- Certified by UL
- 5-year warranty
- DLC 5.1 Premium
Documents
HBUD3 User Manual
HBUD3-SW3B240S-CDGLY 200W IES File Applications:
- Distribution Centers
- Factories
- Gymnasiums
- Manufacturing Plants
- Packaging Facilities
- Retail Shops
- Supermarkets
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Beam Angle | 90° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.3/1.7/2.1 A @ 120 VAC, 570/760/910 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V, PWM |
| Efficacy | 160 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations |
| Equivalency | 1000 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 24000 Lumens, 32000 Lumens, 38400 Lumens |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 100-277 VAC |
| Power Factor | ≥0.95 |
| Product Materials | Aluminum, Polycarbonate |
| Product Weight | 5.4 lb (2.4 kg) |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 150 Watts, 200 Watts, 240 Watts |
| Wire Gauge | 18 AWG, 22 AWG |
