12V T5 Linkable LED Task Light Fixture - Low Voltage - Up to 1,800 Lumens - 12" / 18" / 24” / 36” / 48" - 4000K / 5000K
Part Number:
IT5-xKx-LV
Manufacturer Part Number:
$12.59
ea.
SAVE 10%
Was
$13.99
ea.
Was
In Stock
Similar Products Available Today
Features
- Low-profile aluminum construction with frosted lens for diffused lighting
- Operates on 12-36 VDC
- Includes mounting brackets and end caps for secure installation
- Linkable up to 6 fixtures for extended coverage
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview

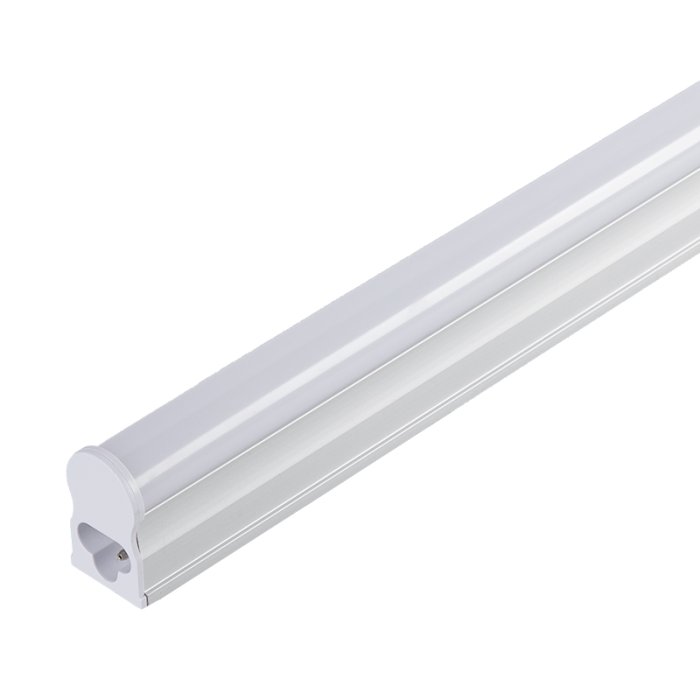

The 12V T5 Linkable LED Task Light Fixture provides low-voltage task lighting in specialized applications, such as RV interiors, boat cabins, or enclosed trailers. Built with a slim-profile aluminum housing and a curved frosted lens, this fixture delivers uniform, glare-free lighting. Designed for easy installation, it includes stainless steel mounting brackets and end caps. Link up to 6 fixtures together with the included butt connector or the compatible interconnect cable (sold separately). Power using the included 6” pigtail power cord.
Product Details:
- Silver aluminum housing and frosted polycarbonate lens
- Surface mount using included brackets
- Max run: 6 lights
- 12-36 VDC
- 5-year warranty
IT5-xKx-LV Specification Sheet Applications:
- Boat Cabins
- Cargo Lighting
- Enclosed Trailers
- Food Trucks
- Off Grid Lighting
- RV Interiors
- Trunk Lights
- Under-Cabinet Lighting
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20 to 40 °C (-4 to 104 °F) |
|---|---|
| Beam Angle | 140° |
| Brand | Super Bright LEDs |
|
CRI
CRI
 |
80+ |
| Dimmable | No |
|
Dimmer Type
Dimmer Type
|
Non-Dimmable |
| Efficacy | 100 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Dry Locations |
| Finish | Silver |
| Input Connection Type | 3-Pin, Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
| Rated Life (L70) | 50000 Hours |
| Linkable | Plug-In |
| Max Run | 6 |
| Mount Type | Surface Mount |
| Operating Voltage | 12-36 VDC |
| Output Connection Type | 3-Pin |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wire Gauge | 22 AWG |
| Part NO |
CCT
CCT
 |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
LED Color | Length | Lumens | Wattage |
|---|---|---|---|---|---|---|
| IT5-40K24-LV | 4000K | 220 mA @ 36 VDC, 330 mA @ 24 VDC, 670 mA @ 12 VDC | Natural White | 24 in. (2 ft) | 800 Lumens | 8 Watts |
| IT5-40K12-LV | 4000K | 110 mA @ 36 VDC, 330 mA @ 12 VDC, 165 mA @ 24 VDC | Natural White | 12 in. (1 ft) | 400 Lumens | 4 Watts |
| IT5-40K18-LV | 4000K | 190 mA @ 36 VDC, 290 mA @ 24 VDC, 580 mA @ 12 VDC | Natural White | 18 in. (1.5 ft) | 700 Lumens | 7 Watts |
| IT5-40K36-LV | 4000K | 280 mA @ 36 VDC, 420 mA @ 24 VDC, 830 mA @ 12 VDC | Natural White | 36 in. (3 ft) | 1000 Lumens | 10 Watts |
| IT5-40K48-LV | 4000K | 420 mA @ 36 VDC, 630 mA @ 24 VDC, 1.25 A @ 12 VDC | Natural White | 48 in. (4 ft) | 1800 Lumens | 15 Watts |
| IT5-50K12-LV | 5000K | 110 mA @ 36 VDC, 330 mA @ 12 VDC, 165 mA @ 24 VDC | Cool White | 12 in. (1 ft) | 400 Lumens | 4 Watts |
| IT5-50K18-LV | 5000K | 190 mA @ 36 VDC, 290 mA @ 24 VDC, 580 mA @ 12 VDC | Cool White | 18 in. (1.5 ft) | 700 Lumens | 7 Watts |
| IT5-50K24-LV | 5000K | 220 mA @ 36 VDC, 330 mA @ 24 VDC, 670 mA @ 12 VDC | Cool White | 24 in. (2 ft) | 800 Lumens | 8 Watts |
| IT5-50K36-LV | 5000K | 280 mA @ 36 VDC, 420 mA @ 24 VDC, 830 mA @ 12 VDC | Cool White | 36 in. (3 ft) | 1000 Lumens | 10 Watts |
| IT5-50K48-LV | 5000K | 1.5 A @ 12 VDC, 500 mA @ 36 VDC, 750 mA @ 24 VDC | Cool White | 48 in. (4 ft) | 1800 Lumens | 18 Watts |
