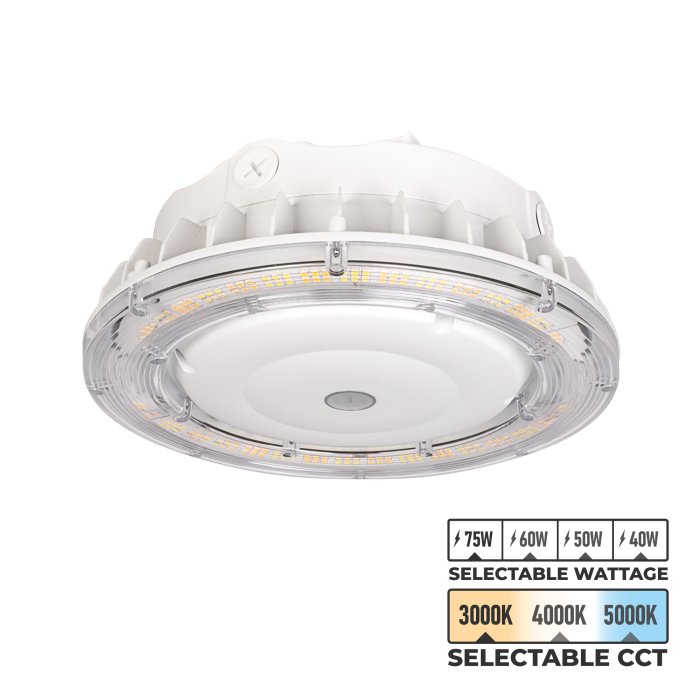

LED Canopy Light - Selectable Wattage and CCT - Up To 250W MH Equivalent - Up To 10,125 Lumens - 40W / 50W / 60W / 75W - 3000K / 4000K / 5000K

brand logo
Part Number: LCGR-ST1-SW3B75S
Manufacturer Part Number:
$124.99 ea.
Clearance
Request a Quote
box-open-solid
truck-fast-solid
On orders $300 and up within the contiguous U.S.
Item does not qualify

Features

  • Selectable wattage and CCT
  • Replaces up to a 250W metal halide
  • Versatile surface or pendant mount options
  • Sensor-ready socket for a motion sensor (sold separately)
  • DLC 5.1 Premium
View more details

In-House Test Lab

Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.

Hassle-Free Returns & Exchanges

Industry-Leading 45-Day Return & 90-Day Exchange Policies*

Free Lighting Layout Consultation

If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.

loader
Loading...

Overview

The LED Canopy Light offers four selectable wattages and three CCT options, delivering up to 10,125 lumens with a 135° beam angle. It replaces 250W metal-halide fixtures, reducing operational and maintenance costs. Built with a robust die-cast aluminum housing, integrated heat sinks, and a shatterproof polycarbonate lens, this fixture ensures long-lasting performance. Installation is flexible with surface or pendant mounting options, and energy efficiency can be enhanced with the integrated sensor socket, compatible with optional motion sensor and photocell accessories. Ideal for parking garages, gas stations, and outdoor commercial settings.

Product Details:

  • Die-cast aluminum housing, polycarbonate lens
  • IP65 waterproof
  • 5 NPT conduit entries (1/2" on four sides, 3/4" on top)
  • Surface mount hardware and safety cable included
  • 120-277 VAC
  • ETL Listed
  • DLC 5.1 Premium
  • 5-year warranty
Applications:
  • Canopy Lights
  • Covered Walkway
  • Garages
  • Gas Stations
  • Low Bays
  • Parking Garages
  • Stairways
  • Vestibules
5 Years
5 Years
5 Years
5 Years
ETL Listed
ETL Listed
ETL Listed
ETL Listed
DLC Premium
DLC Premium
DLC Premium
DLC Premium
Selectable Wattage
Selectable Wattage
Selectable Wattage
Selectable Wattage
Selectable CCT
Selectable CCT
Selectable CCT
Selectable CCT
0-10V Dimmable
0-10V Dimmable
0-10V Dimmable
0-10V Dimmable
IP65
IP65
IP65
IP65
Sensor Ready
Sensor Ready
Sensor Ready
Sensor Ready

Need help?

Use our Lighting Layout Tool to see how this product illuminates your space.

Specifications

Ambient Operating Temperature -40 to 40 °C (-40 to 104 °F)
Beam Angle 135°
Brand Super Bright LEDs
CCT Click for more information about this specification 3000K, 4000K, 5000K, Selectable CCT
Certifications/Compliance Click for more information about this specification DLC Premium, ETL Listed, RoHS
Current Draw Click for more information about this specification 370/460/550/690 mA @ 120 VAC, 160/200/240/300 mA @ 277 VAC
Dimmable Yes
Dimmer Type Click for more information about this specification 0-10V
Efficacy 135 lm/W
Environmental Rating Click for more information about this specification Suitable for Wet Locations, Waterproof
Equivalency 250 Watt Metal Halide
Finish White
Input Connection Type Pigtail
Integrated Surge Protection 4 kV (L-N), 6 kV (L/N-PE)
IP Rating Click for more information about this specification IP65
LED Color Warm White, Natural White, Cool White, Selectable CCT
Rated Life (L70) 50000 Hours
Lumens 5400 Lumens, 6750 Lumens, 8100 Lumens, 10125 Lumens
Microwave Motion Sensor Optional
Operating Voltage 120-277 VAC
Photocell Click for more information about this specification None
Power Factor ≥0.9
Product Materials Aluminum Housing, Polycarbonate Lens
Product Weight 4.9 lb (2.2 kg)
Warranty 5 Year
Wattage 40 Watts, 50 Watts, 60 Watts, 75 Watts
