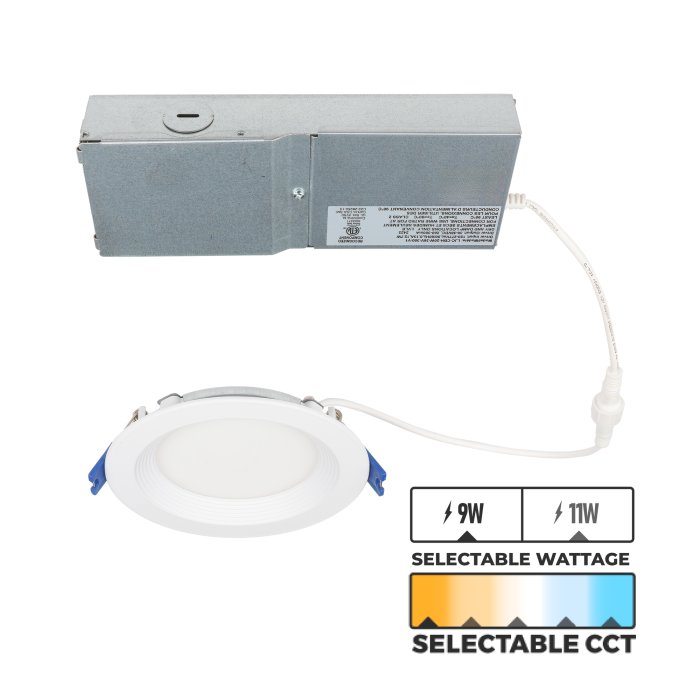

Lightolier Canless 4" Downlight - Selectable CCT and Wattage - Up to 700 Lumens - 0-10V Dimmable - 9 W / 11 W
Part Number:
190096131921
Manufacturer Part Number:
DL4RSLMZ10SCTUW
$18.99
ea.
Was
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Selectable wattage: 9 W, 11 W
- Adjustable color temperature: 2700K, 3000K, 3500K, 4000K, 5000K
- Equivalent to 65 W incandescent lighting
- 0-10V dimming compatibility
- IC Rated for safe insulation contact
- Energy Star Certified
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The Lightolier Canless 4" Downlight offers a versatile lighting solution designed for both new construction and remodel installations. Requiring no can light housing, this fixture comes with an independent junction box and a 0-10V dimmable driver, allowing for flexible lighting control in any setting. The downlight features selectable wattage (9 W or 11 W) and adjustable color temperatures ranging from 2700K, 3000K, 3500K, 4000K, and 5000K, offering up to 700 lumens—an ideal replacement for 65W incandescent fixtures. This compact downlight is suitable for various indoor spaces, including basements, kitchens, and living areas, and is built for efficiency and easy installation.
Product Details:
- White aluminum housing and steel junction box
- Installs in 4.25 inches (158 mm) hole
- 110-degree beam angle
- 120-270 VAC
- 0-10V dimmable
- IC Rated for insulation contact
- ETL Listed
- 5-year warranty
DL4RSLMZ10SCTUW Specification Sheet
DL4RSLMZ10SCTUW IES File
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
The Environmental Protection Agency's (EPA) ENERGY STAR program was designed to set a standard for energy efficiency, to reduce pollutants and greenhouse gas, and to help consumers make educated product purchasing decisions. Products with an ENERGY STAR label are tested in EPA-recognized laboratories and meet ENERGY STAR product specification requirements. They are designed to reduce energy costs and serve their purpose without a lack of efficacy and features.
This product meets California Energy Commission (CEC) Title 24 JA8 requirements and is registered in their Modernized Appliance Efficiency Database System (MAEDbS).
Title 24 encompasses regulations for energy conservation, green design, construction, maintenance, fire and life safety, and accessibility in both residential and non-residential buildings across California, covering structural, mechanical, electrical, and plumbing systems. Implemented on January 1, 2017, these Building Energy Efficiency Standards include the Joint Appendix Section 8 (JA8) requirements for residential buildings, which are akin to Title 20 requirements, featuring L/W prerequisites. Compliance with Title 24 entails:
- CRI greater than 90
- R9 greater than 50 (R9 color rendering value indicates how well your lighting will highlight red colors)
- CCT under 4000K
- 6,000-hour lumen maintenance greater than or equal to 86.7%
- Rated life greater than or equal to 15,000 hours
- 10% dimming
- Flicker less than 30% for 200 Hz or below at 100% and 20% levels
- Noise less than 24 dB at 100% and 20%
- Label (either JA8-2016 or JA8-2016-E) on bulb
- Immediate start time (0.5 seconds or less)
IC Rated
IC (Insulation Contact) Rated An IC-rated fixture is designed to operate in direct contact with insulation material. Its rating indicates that the fixture has added thermal protection, minimizing fire hazards.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -15 to 40 °C (5 to 104 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Lightolier |
|
CCT
CCT
|
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
CEC Title 24 JA8 Compliant, Energy Star, ETL Listed |
|
CRI
CRI
|
90+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
83/100 mA @ 120 VAC, 36/44 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 63 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Damp Locations |
| Equivalency | 65 Watt Incandescent |
| Finish | White |
| IC Rated | Yes |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 540 Lumens, 700 Lumens |
| Manufacturer Part Number | DL4RSLMZ10SCTUW |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Steel Junction Box |
| Warranty | 5 Year |
| Wattage | 9 Watts, 11 Watts |
