24V Flexible LED Light Sheet - 24” x 12” - RGB - IP20
Part Number:
LLS-CRGB-A12A-40A02-24V
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- RGB color-changing and dimming capabilities
- Flexible and cuttable design for versatile lighting applications
- Easy installation with secure 3M™ adhesive backing
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Most Popular Compatible Products
Overview

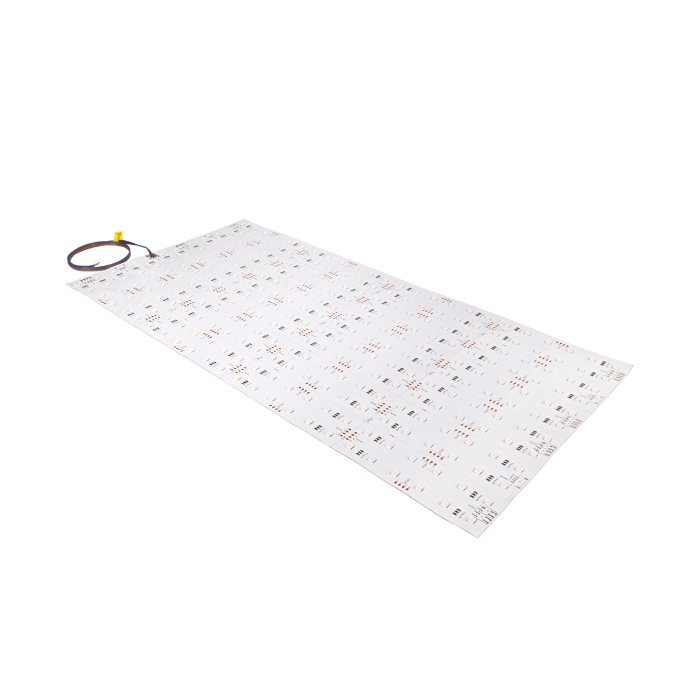

The LLS Series Flexible RGB LED Light Sheet can be cut to fit unique shapes and wrap corners in channel letters, displays, and sign lighting. The 288 high-density LEDs per sheet provide smooth, bright illumination with RGB color-changing and dimming capabilities. Each 24” x 12” flexible sheet is divided into 24 segments, each measuring 6” x 2” and containing 12 LEDs. Apply the sheet by exposing the 3M™ adhesive backing or fastening it with screws at the indicated spots.
Note: Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Note: Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.
Product Details:
- PWM Dimmable
- 120° beam angle
- Max run with Class 2 wiring: 2.5 Sheets
- Enclosure rated: Min. 1.18" spacing from LEDs to Diffuser
- 19” pigtail connection
- 24 VDC
LLS-CRGB-A12A-xAx-24V Specification Sheet Dimensional Drawings
Applications:
- Backlighting
- Billboards
- Channel Letters
- Displays
- Photography Lighting
- Retail Shops
- Showcases
- Sign Lighting
- Translucent Materials
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.6 A |
| Dimensions | 24in x 12in |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 80 lm/W |
| Enclosed Fixture Rated | Yes |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | RGB |
| LED Chip Type | 5050 SMD |
| LEDs per Segment | 12 |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
2.5 Sheets |
| Operating Voltage | 24 VDC |
| Segment Size | 6 in. x 2 in. (152.4 mm x 50.8 mm) |
| Wattage | 40 Watts |
