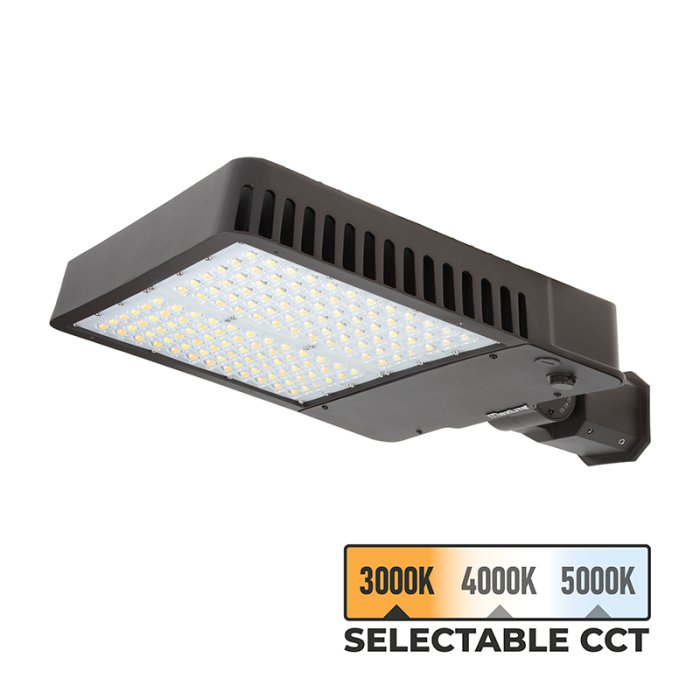

MaxLite 200W Slim Area Light - Control Ready - Selectable CCT - 750W MH Equivalent - 3000K / 4000K / 5000K
Part Number:
AR200UT3-CSBKCR
Manufacturer Part Number:
$499.99
ea.
Was
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Sensor port allows for simple control-ready, plug-and-play operation
- Type III-M light distribution for large outdoor spaces
- Meets ANSI 3G vibration standard for bridges and overpasses
- 2-3/8" - 3" OD Slipfitter Knuckle mount included
- DLC 5.1 Premium
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Related Products
Overview
The 200W MaxLite LED Slim Area Light offers an efficient and lightweight solution for both new and retrofit outdoor lighting projects. Delivering up to 135 lumens per watt, this fixture not only ensures bright illumination but also provides significant long-term energy and maintenance cost savings. Available in lumen packages ranging from 7,700lm to over 40,000+lm, this area light is designed to meet the needs of a variety of applications. When paired with the c-Max motion sensor and remote, the light becomes dimmable, adding further flexibility and energy savings. Constructed with a durable bronze aluminum housing and polycarbonate lens, it also features a Type III-M light distribution, making it ideal for large outdoor spaces.
Product Details:
- Bronze aluminum housing and polycarbonate lens
- IP65 waterproof rating
- Type III-M light distribution
- Included slip-fitter fits pole between 2-3/8" - 3"
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 10-year standard warranty with labor allowance
Warranty Limitations: Product must be rated for the application per the Product Data Sheet (PDS); operated ≤16 hrs/day; in ambient of -29°F to 104°F. *Up to $25/unit; labor allowances of up to $500/unit available for purchase – contact MaxLite representative for details.
Documents
AR200UT3-CS_3000K
AR200UT3-CSBKCR Specification Sheet Applications:
- Area Lighting
- Arenas
- Billboards
- Campus Lighting
- Car Dealerships
- High Bays
- Parking Lots
- Parks
- Roadways
- Stadiums
- Street Lights
- Tunnel Lighting
- Warehouses
Super Bright LEDs, Inc. offers a 10-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -40 to 40 °C (-40 to 104 °F) |
|---|---|
| Brand | MaxLite |
| BUG Rating | B3-U0-G4 (4000K), B3-U0-G3 (3000K and 5000K) |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.67 A @ 120 VAC, 722 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
|
Distribution Type
Distribution Type
|
Type III-M |
| DLC Product ID | P72VJ33N |
| Efficacy | 135 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 750 Watt Metal Halide |
| Finish | Bronze |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 10 kV |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 54000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 27000 Lumens |
| Microwave Motion Sensor | Optional |
| Mount Type | Knuckle Slipfitter Mount |
| Operating Voltage | 120-277 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
No Photocell |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 23.5 lb (10.7 kg) |
| UL File Number | E361011 |
| Warranty | 10 Year |
| Wattage | 200 Watts |
