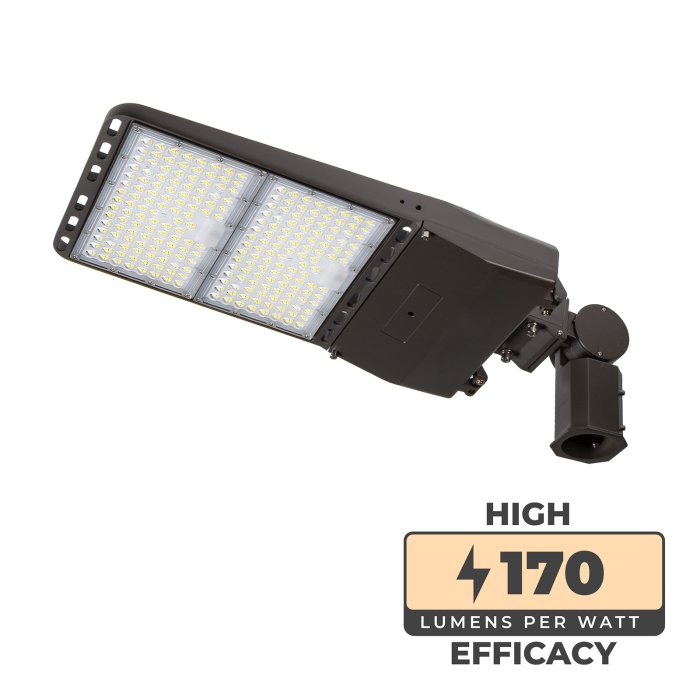

300W LED Parking Lot Area Light - Optional Photocell - 1,000W MH Equivalent - 51,000 Lumens - 5000K - With Mount
Part Number:
ALD2-50K30W-x
Manufacturer Part Number:
Starting at
$264.99
ea.
Starting at
Was
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Focused Type III-S distribution pattern
- High 170lm/W efficacy - minimizes operating costs
- Save energy with an optional photocell and a compatible mount
- 1000W metal-halide equivalent
- DLC 5.1 Premium
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The 300W LED parking lot area light is designed to provide powerful, energy-efficient illumination for large outdoor spaces. Emitting a remarkable 51,000 lumens of cool white light, this fixture utilizes a Type III-S distribution pattern that projects light farther forward, ideal for lighting broader pathways, roadways, and expansive areas. This LED fixture is a direct replacement for traditional 1000W metal-halide lights, offering equivalent brightness with significantly reduced energy consumption, achieving an efficacy of 170 lumens per watt. The light is housed in a durable die-cast aluminum casing with a polycarbonate lens, both rated IP66 for waterproof protection. Optional photocell compatibility enables automatic dusk-to-dawn operation, enhancing convenience and energy savings. The fixture also supports multiple mounting options, allowing flexibility in installation across various applications.
See our full selection of ALD2 series area lights.
See our full selection of ALD2 series area lights.
Product Details:
- Bronze die-cast aluminum housing with a durable polycarbonate lens
- IP66 waterproof
- Type III-S light distribution
- 1-10V dimmable
- 100-277 VAC
- ETL Listed
- DLC 5.1 Premium
- 5-year warranty
Documents
ALD2 Specification Sheet
ALD2-50K30W-C-BRC3 IES File Applications:
- Area Lighting
- Arenas
- Campus Lighting
- Car Dealerships
- Parking Lots
- Parks
- Roadways
- Sports Complexes
- Stadiums
- Street Lights
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -40 to 45 °C (-40 to 113 °F) |
|---|---|
| Brand | Super Bright LEDs |
| BUG Rating | B5-U3-G4 |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.1 A @ 277 VAC, 2.5 A @ 120 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
1-10V |
|
Distribution Type
Distribution Type
|
Type III-S |
| Efficacy | 170 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
|
EPA Rated
EPA Rated
The Effective Projected Area (EPA) refers to the strength of wind velocity a pole-mounted light fixture can withstand. EPA ratings are employed to assess whether lighting fixtures can adhere to the standards required by specific geographical regions. The Effective Projected Area is a measure used to determine the wind forces a lighting fixture might face.
For more information on calculating EPA and why it is important visit our blog 'What Is EPA and Why Do You Need To Know?' |
1.83 ft² |
| Equivalency | 1000 Watt Metal Halide |
| Finish | Bronze |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 10 kV |
|
IP Rating
IP Rating
|
IP66 |
| LED Color | Cool White |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 51000 Lumens |
| Operating Voltage | 100-277 VAC |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | 300 Watts |
| Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
| Part NO | Mount Type |
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
Product Weight |
|---|---|---|---|
| ALD2-50K30W-C-BRC3-FB | Yoke Bracket | No Photocell | 16.2 lb (7.3 kg) |
| ALD2-50K30W-C-BRC3-FM | Fixed Arm Mount | No Photocell | 16.9 lb (7.7 kg) |
| ALD2-50K30W-C-BRC3-FM-JL | Fixed Arm Mount | Includes Photocell | 18.5 lb (8.4 kg) |
| ALD2-50K30W-C-BRC3-SF | Knuckle Slipfitter Mount | No Photocell | 16.2 lb (7.3 kg) |
| ALD2-50K30W-C-BRC3-SFS-JL | Knuckle Slipfitter Mount | Includes Photocell | 17.8 lb (8.1 kg) |
