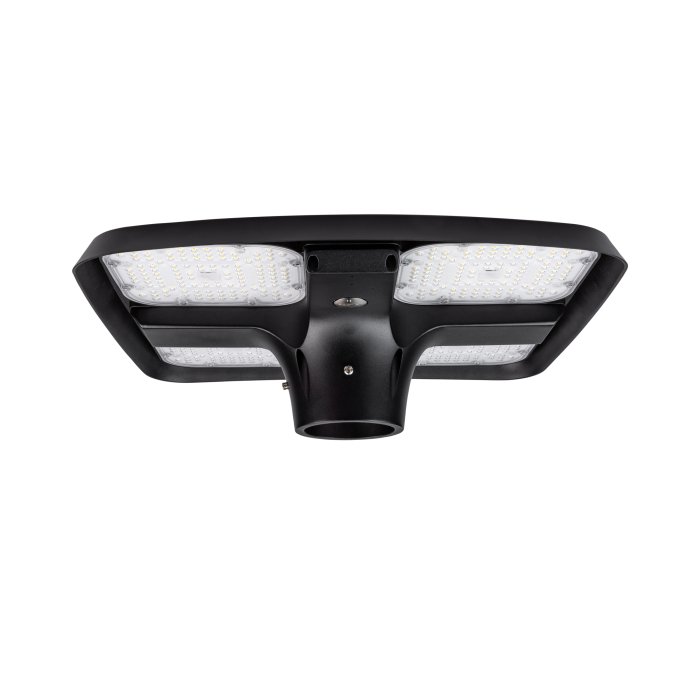

LED Post Top Light With Optional Photocell - Selectable CCT and Wattage - 400W MH Equivalent - Up to 20,250 Lumens - 100W / 120W / 150W - 3000K / 4000K / 5000K
Part Number:
PTL-R1-SW3B150S-x
Manufacturer Part Number:
Starting at
$208.98
ea.
Starting at
Was
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Optional photocell allows for dusk-to-dawn operation
- Adjustable wattage settings: 100W, 120W, 150W
- Selectable CCT: 3000K, 4000K, 5000K for adaptable color temperature
- Replaces 400W metal halide fixtures
- DLC 5.1 Premium
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The LED Post Top Light offers advanced customization with selectable wattage and CCT. Choose between 100W, 120W, and 150W settings and 3000K, 4000K, or 5000K to tailor the light output for specific applications. Its photocell allows automatic dusk-to-dawn or continuous operation with a shorting cap. This post top light emits 20,250 lumens and is an energy-efficient replacement for 400W metal halide fixtures, ensuring significant energy savings and reduced maintenance costs.
The durable light features a black powder-coated die-cast aluminum housing and a polycarbonate lens to protect against harsh outdoor conditions. The light offers a 140° x 140° light distribution pattern, ideal for broad area lighting in parking lots, campuses, parks, and other large outdoor spaces. It is compatible with standard 2 3/8” and 3” round poles.
The durable light features a black powder-coated die-cast aluminum housing and a polycarbonate lens to protect against harsh outdoor conditions. The light offers a 140° x 140° light distribution pattern, ideal for broad area lighting in parking lots, campuses, parks, and other large outdoor spaces. It is compatible with standard 2 3/8” and 3” round poles.
Product Details:
- Compatible with standard 2 3/8“ and 3” poles
- Die-cast aluminum housing with black powder coat finish
- 140° x 140° beam
- IP65 waterproof
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
Documents
PTL-R1 Specification Sheet
PTL-R1-SW3B150S 40K 150W IES File Applications:
- Area Lighting
- Campus Lighting
- Car Dealerships
- Parking Lots
- Parks
- Security Lighting
- Walkways
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -30 to 45 °C (-22 to 113 °F) |
|---|---|
| Beam Angle | 140° x 140° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
0.9/1.0/1.3 A |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
|
Distribution Type
Distribution Type
|
Type V-M |
| Efficacy | 135 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations |
| Equivalency | 400 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 4 kV (L/N-PE), 2 kV (L-N) |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 13500 Lumens, 16200 Lumens, 20350 Lumens |
| Mount Type | Post Top |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing |
| UL File Number | E366643 |
| Warranty | 5 Year |
| Wattage | 100 Watts, 120 Watts, 150 Watts |
| Wire Gauge | 18 AWG |
| Part NO |
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
|---|---|
| PTL-R1-SW3B150S-JL | Includes Photocell |
| PTL-R1-SW3B150S-SC | Includes Shorting Cap |
