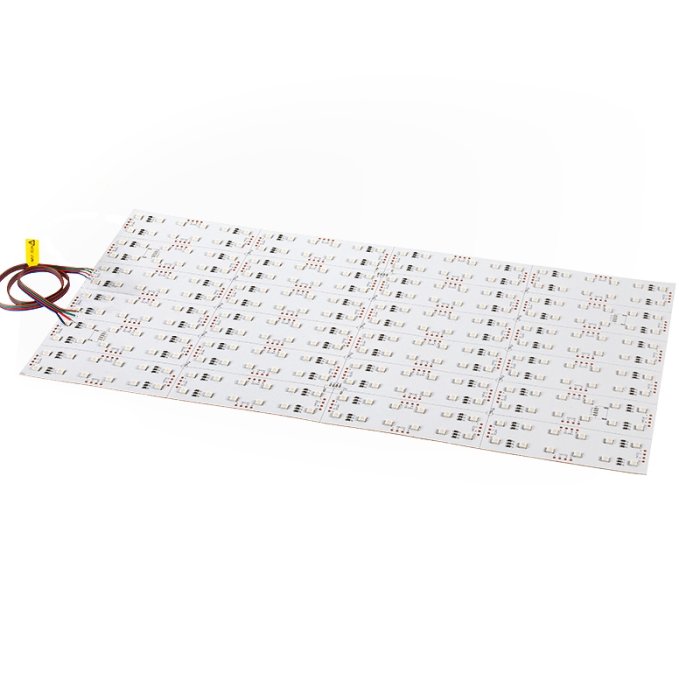

24V RGB LED Back Lighting Sheet - Color-Changing 18.9" x 9.5" - IP20
Part Number:
LLS-CRGB-A12A-60A01-24V
Manufacturer Part Number:
![RGB LED Back Lighting Sheet - 19" x 9.5" - 24V - IP20](https://www.industrialcommerciallighting.com/media/catalog/product/cache/658b5bae439743a0c5caf366a5f0df99/l/l/lls-crgb-a12a-60a01-24v-store-revised.jpg "RGB LED Back Lighting Sheet - 19" x 9.5" - 24V - IP20")
$89.99
ea.
Was
| Quantity | |
|---|---|
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Fully modular and customizable RGB LED sheet
- Color-changing and dimmable with optional DMX controllers
- Thin and bendable for application even in low clearance spaces
- Use included 3M™ adhesive backing for easy installation
- 24 VDC
- 5-year warranty
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Overview
The 24V RGB LED Back Lighting Sheet is a versatile and fully customizable lighting solution designed for backlighting applications, including displays, light boxes, and signage. With a dense array of 288 LEDs per sheet, it delivers bright, uniform illumination without hotspots. The sheet is easy to customize by cutting along the pre-marked lines, ensuring electrical continuity. The thin, flexible design allows for installation in tight spaces, and the included 3M™ adhesive backing simplifies mounting. This 24V DC sheet is dimmable and compatible with DMX controllers (sold separately), offering precise control over brightness and color.
Product Details:
- Cuttable segments: every 4-3/4" x 1-1/2"
- 12 LEDs per segment
- 4 x RGB solder points per segment
- Dimmable
- Max Run with Class 2 wiring: 1.5 sheets
- Dimensions: 18.9" x 9.5"
- Thickness: 0.08in (2mm)
- Wire length: 19.5" 22 AWG power wire
- IP20 rated for dry conditions
- 50000 hours L70 lifespan
- 24 VDC
- UL Listed, CE certified
- 5-year warranty
LLS-CRGB-A12A-xAx-24V Specification Sheet Applications:
- Backlighting
- Billboards
- Channel Letters
- Displays
- Photography Lighting
- Retail Shops
- Showcases
- Sign Lighting
- Translucent Materials
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ambient Operating Temperature | -20~+45 °C (-4~+113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.5 A |
| Dimensions | 18.9in x 9.5in |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Enclosed Fixture Rated | Yes |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
|
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the width of the light emitting from the source. The narrower the beam angle the more focused the light energy is. Comparing two 40 watt lights one with a beam angle of 30(a) and another with a beam angle of 90(b), They both produce the same amount of light output but (a) will appear brighter in the beam angle compared to (b) at the sacrifice of light spread.
|
120° |
| LED Color | RGB |
| LED Type | 5050 SMD |
| LEDs per Segment | 12 |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.
|
1.5 Sheets |
| Operating Voltage | 24 VDC |
| Segment Size | 4.72 in. x 1.58 in. (120 mm x 40 mm) |
| Wattage | 60 Watts |
