RGB LED Controller with LC4 Connector - Wireless RF Remote with Dynamic Color-Changing Modes - 5 Amps/Channel - Mini RGB LED Controller - LC4
Part Number:
MCBRF-RGB-5ALC4
Manufacturer Part Number:
Most Popular Compatible Products
Overview

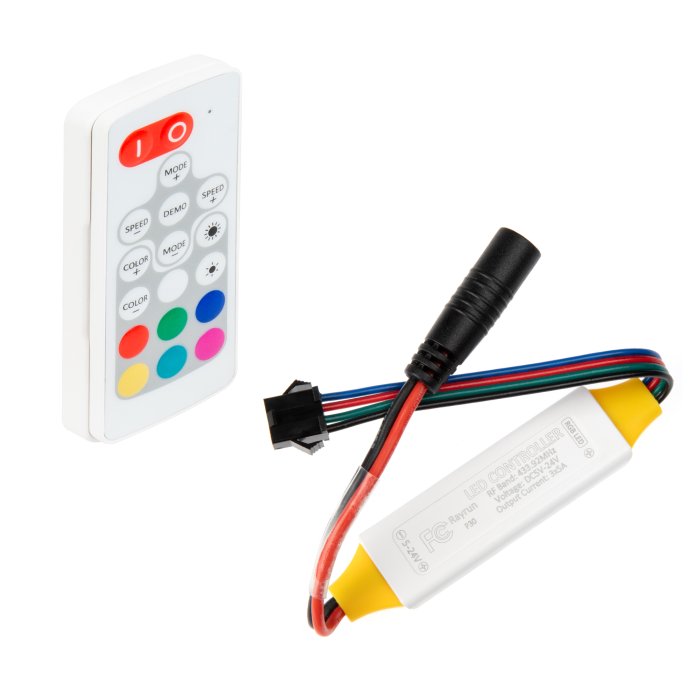

This RGB LED controller with wireless RF remote is perfect for controlling your RGB LED light strips. The LED remote can dim light strips from 22%-100% using Pulse Width Modulation (PWM). Choose from 43 dynamic color-changing modes with adjustable speed and brightness levels or 30 static color modes with adjustable brightness levels, and control your light strip from up to 50' away. Power-cycle mode retention allows your light strip to return to the mode that was selected before it was powered off. The waterproof controller has a maximum load capacity of 5 amps per red, green, or blue channel and is compatible with LED light strips that operate with in a 5-24V DC range. A male LC4 locking connector easily plugs into the female connector on your light strip. Pair up to 3 remotes with the controller. Includes remote battery.
Documents
MCBRF-RGB-5ALC4 User Manual Dimensional Drawings
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Specifications
| Ambient Operating Temperature | -30 to 80 °C (-22 to 176 °F) |
|---|---|
| Amps | 15 Amps |
| Amps Per Channel | 5 Amps/CH |
| Battery Type | CR2025 (x1 included) |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application.The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here. |
FCC |
| Control Type | Handheld (RF) Remote |
| Input Connection Type | 5.5 mm x 2.1 mm DC Barrel |
|
IP Rating
IP Rating
 |
IP68 |
| Number of Channels | 3 Channels |
| Radio Frequency | 433.92 MHz |
| Remote Range | Up to 49.2 ft (15 m) |
| Voltage | 5-24 VDC |
| Warranty | 2 Year |
