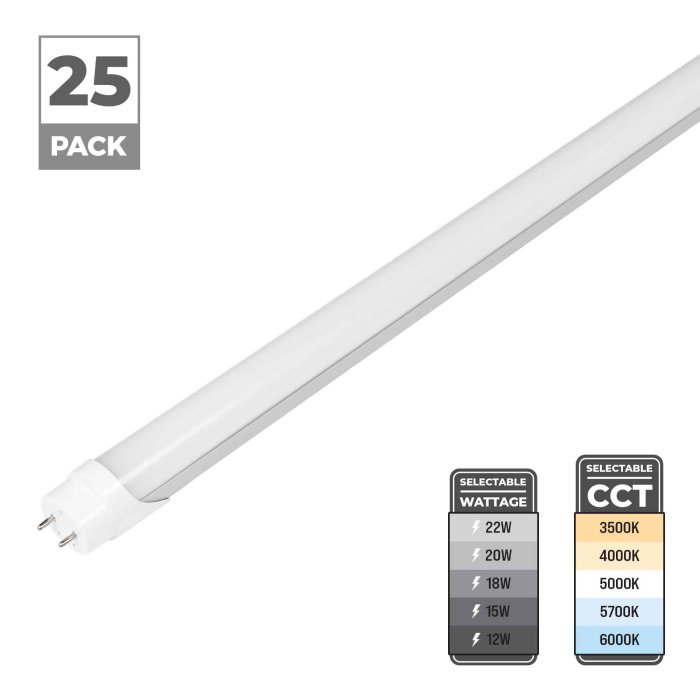

48" Integrated T8 LED Fixture - Type A/B - Ballast Compatible / Ballast Bypass - Selectable Wattage and CCT - Up 2,640 Lumens - 25-Pack
Part Number:
T8U4-SW5C22-F-25PK
Manufacturer Part Number:
$199.99
per Pack
Was
In Stock
Similar Products Available Today
Features
- Adjustable wattage options for customization: 12W, 15W, 18W, 20W, 22W
- Selectable color temperatures: 3500K, 4000K, 5000K, 5700K, 6000K
- Efficiently replaces 1-lamp 32W T8 fluorescent tube
- Type A Plug-and-play or Type B ballast bypass operation
Most Popular Compatible Products
Overview
These T8 LED Tubes replace traditional 4ft 32W T8 fluorescent tubes. Using the switches on the top of the tube, select between five wattages (12W, 15W, 18W, 20W, 22W) and five CCTs (3500K, 4000K, 5000K, 5700K, 6500K). They have G13 Bi-Pin bases, plug-and-play (Type A), and ballast bypass (Type B) compatibility. Each tube works with a single- or dual-ended connection. Sold only in 25-packs.
Product Details:
- Durable aluminum housing
- Frosted polycarbonate lens
- Suitable for dry locations
- 155° beam angle
- G13 Bi-Pin base, single- or dual-end wiring
- ETL Classified, ETL Listed
- 120-277 VAC
- 5-year warranty
Documents
T8U4-SW5C22-F Specification Sheet Dimensional Drawings
Applications:
- Commercial Lobby and Entrances
- Hospitals
- Offices
- Restaurants
- Retail Shops
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
The DesignLights Consortium® (DLC®) partners with energy-efficiency groups and utility companies to establish a set of standards for commercial LED light fixtures. The product is tested and must meet quality, energy-efficiency, and performance requirements to be added to the DLC's Qualified Products List. For more information, click here. To view all of our DLC® listed products, click here
Type A/B
Type A/B hybrid LED tubes function like dual-ended Type A or single-ended Type B. Using a Type A/B Hybrid tube is advantageous if you want to continue using your ballast now while having the option of bypassing it in the future.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Ballast Compatibility | Type A (Ballast Compatible), Type B (Ballast Bypass), Type A/B (Ballast Bypass/Ballast Compatible) |
| Base Type | G13 (Bi-Pin) |
| Beam Angle | 155° |
| Brand | Super Bright LEDs |
| Bulb Type | T8 |
|
CCT
CCT
 |
3500K, 4000K, 5000K, 5700K, 6500K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC, ETL Classified, ETL Listed |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
105/130/155/170/190mA @ 120 VAC, 45/55/65/75/80mA @ 120 VAC |
| Dimmable | No |
|
Dimmer Type
Dimmer Type
|
Non-Dimmable |
| DLC Product ID | S-G8Q8HX |
| Efficacy | 120 lm/W |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Dry Locations |
| LED Color | Warm White, Natural White, Cool White, Selectable White |
| Rated Life (L70) | 50000 Hours |
| LED Tube Wiring | Single Ended, Dual Ended |
| Length | 48 in. (4 ft) |
| Lens Color | Frosted |
| Lens Type | Polycarbonate |
| Lumens | 1440 Lumens, 1800 Lumens, 2160 Lumens, 2400 Lumens, 2640 Lumens |
| Operating Voltage | 120-277 VAC |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 12 Watts, 15 Watts, 18 Watts, 20 Watts, 22 Watts |
