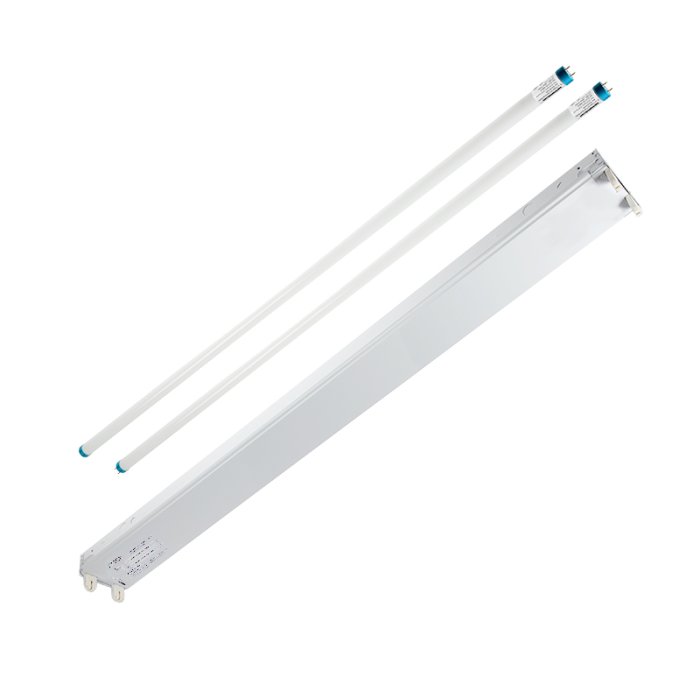

TCP LED T8-Ready 4ft General Purpose Strip Light Fixture - Type B Ballast Bypass - 2 T8 Tubes / Fixture Only - 4000K / 5000K
Part Number:
GPS4WA2LT8B1-xK18-AFN
Manufacturer Part Number:
$34.99
ea.
Was
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Pre-wired lamp sockets for Type B LED lamps
- Easy-to-install design
- Compatible with single-end T8 tubes
- Pair with a pack of 4000K or 5000K T8 tubes or buy only the fixture
Total Price:
Loading...
Most Popular Compatible Products
Overview
TCP's 4' LED T8-Ready General Purpose Strip Light Fixtures combine the classic appearance of traditional fluorescent luminaires with the efficiency of modern single-ended LED T8 Type B lamps. These easy-to-install fixtures maintain a familiar aesthetic while accommodating two lamps, making them ideal for various indoor settings such as workshops, hallways, laundry rooms, and industrial task lighting. Before installation, ensure that any existing ballasts are removed. Purchase with two included 4000K or 5000K T8 tubes, or select fixture only to receive just the vapor tight enclosure.
Product Details:
- Heavy gauge power coated steel housing
- Type B ballast bypass
- Single end 4ft tubes with G13 bi-pin connection compatibility
- 120-277 VAC
- UL Listed
- 5-year warranty
Documents
TCP LED T8 Ready GP Strip Specification Sheet Dimensional Drawings
Applications:
- Car Washes
- Gas Stations
- Industrial Facilities
- Laundry Facilities
- Manufacturing Plants
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Ballast Compatibility | Type B (Ballast Bypass) |
|---|---|
| Base Type | G13 (Bi-Pin) |
| Brand | TCP |
| Bulb Type | T8 |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
UL Listed |
|
CRI
CRI
 |
80+ |
| Dimensions | 4ft |
| Dimmable | No |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Damp Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
| LED Tube Wiring | Single Ended |
| Length | 48 in. (4 ft) |
| Microwave Motion Sensor | None |
| Operating Voltage | 120-277 VAC |
| Product Materials | Steel Housing |
| Warranty | 5 Year |
| Wire Gauge | 14 AWG |
| Part NO |
CCT
CCT
 |
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
Efficacy | Equivalency | LED Color | Rated Life (L70) | Lumens | Product Weight | Wattage |
|---|---|---|---|---|---|---|---|---|---|
| GPS4WA2LT8B1 | 4.2 lb (1.9 kg) | ||||||||
| GPS4WA2LT8B1-40K18-AFN | 4000K | 150 mA, 170 mA | 128 lm/W | 2-lamp 32W T8 Tubes | Natural White | 50000 Hours | 4600 Lumens | 5.5 lb (2.5 kg) | 36 Watts |
| GPS4WA2LT8B1-50K18-AFN | 5000K | 150 mA, 170 mA | 128 lm/W | 2-lamp 32W T8 Tubes | Cool White | 50000 Hours | 4600 Lumens | 5.5 lb (2.5 kg) | 36 Watts |
