Three Color RGB LED Dimmer - Three Color RGB LED Dimmer
Part Number:
LDK-RGB3
Manufacturer Part Number:
Most Popular Compatible Products
Overview

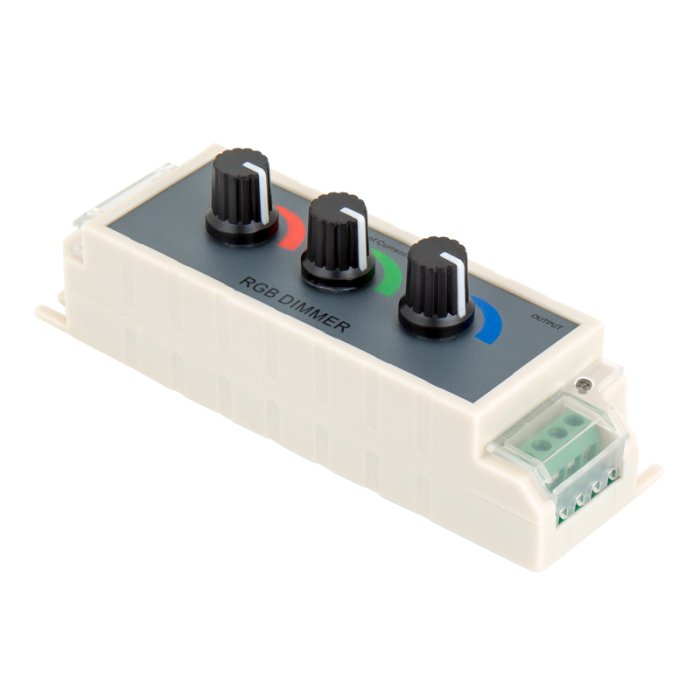

Universal Red/Green/Blue (RGB) LED dimmer can dim any 12VDC RGB LED products from 0 to 100% using Pulse Width Modulation (PWM) circuits. Knob controls for full range custom color creation. Maximum load is 3 amps per channel, 9 amps total.
Documents
LDK-RGB3 User Manual Dimensional Drawings
Super Bright LEDs, Inc. offers a 2-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Specifications
| Amps | 9 Amps |
|---|---|
| Amps Per Channel | 3 Amps/CH |
| Control Type | Knob |
| Input Connection Type | Screw Terminal |
| Number of Channels | 3 Channels |
| Voltage | 12 VDC |
| Warranty | 2 Year |
Specifications
| Supply voltage: | DC 12V |
| Product size: | (L)130 Χ (W)40 Χ (H)52 mm |
| Max load current: | 3 Amps/channel (9 Amps total) |
| Net weight: | 95g |
| Output: | 3 channel |
| Working Temperature: | -20~60°C |
| Static power consumption: | |
| Output Power: | 108 Watts |
| Function: | Dim 3 channels RGB LED product from 0~100% using PWM |
