Discontinued
We have discontinued this product permanently. Please find suggested replacement products from below section.

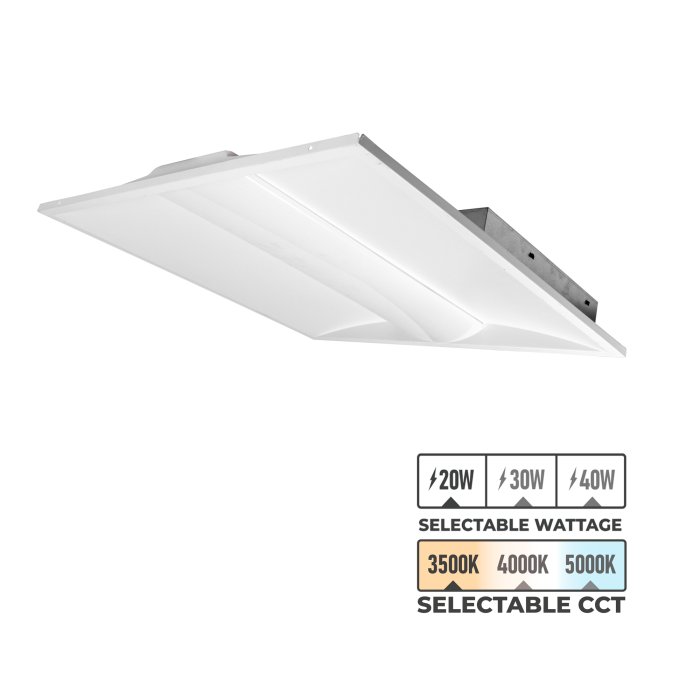

2x2 LED Recessed Troffer Light – Field-Selectable Wattage & CCT - Up To 5,000 Lumens - 20W / 30W / 40W
Part Number:
TLFD-V1-SW3C22-840
Manufacturer Part Number:
Discontinued
Features
- Field-selectable wattage and CCT for customizable installation
- 110° beam angle for wide, even light distribution
- 0-10V dimmable for smooth brightness control
- Replaces 3ft. 17W T8 tubes
- DLC 5.1 Premium
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The 2x2 LED Recessed Troffer Light combines durability and versatility with its steel construction and center-basket polycarbonate lens. Its low-profile design makes it an easy fit for T-grid ceilings, ensuring a streamlined appearance. The light has both a field-selectable wattage and CCT using built-in switches, selecting between a 3500K, 4000K, or 5000K color temperature and 20W, 30W, or 40W. One 2x2 lay-in LED recessed troffer light fixture equivalent to a 2 or 3-tube 17W T8 fixture. This energy-efficient fixture delivers a 110° beam angle and also has 0-10V dimming capilibilites.
Product Details:
- White steel housing with center-basket polycarbonate lens
- 110-degree beam angle
- 0-10V dimmable
- 120-277 VAC
- ETL Listed
- DLC 5.1 Premium
- 5-year warranty
TLFD-V1 User Manual
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
A product that bears an ETL-Certified label has been evaluated by a Nationally Recognized Testing Laboratory (NRTL) and meets national product safety standards. An ETL certification is accepted in the U.S. and in Canada.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
|
CCT
CCT
 |
3500K, 4000K, 5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
DLC Premium, ETL Listed |
|
CRI
CRI
 |
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
170/250/330 mA @ 120 VAC, 72/110/140 mA @ 277 VAC |
| Dimensions | 2ft x 2ft |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 125 lm/W |
|
Environmental Rating
Environmental Rating
 |
Non-weatherproof, Suitable for Damp Locations |
| Equivalency | 3-lamp 17W T8 Tubes |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lumens | 2500 Lumens, 3750 Lumens, 5000 Lumens |
| Mount Type | Drop Ceiling |
| Operating Voltage | 120-277 VAC |
| Product Materials | Polycarbonate Lens, Steel Housing |
| Product Weight | 5.1 lb (2.3 kg) |
| Warranty | 5 Year |
| Wattage | Selectable Wattage, 20 Watts, 30 Watts, 40 Watts |
