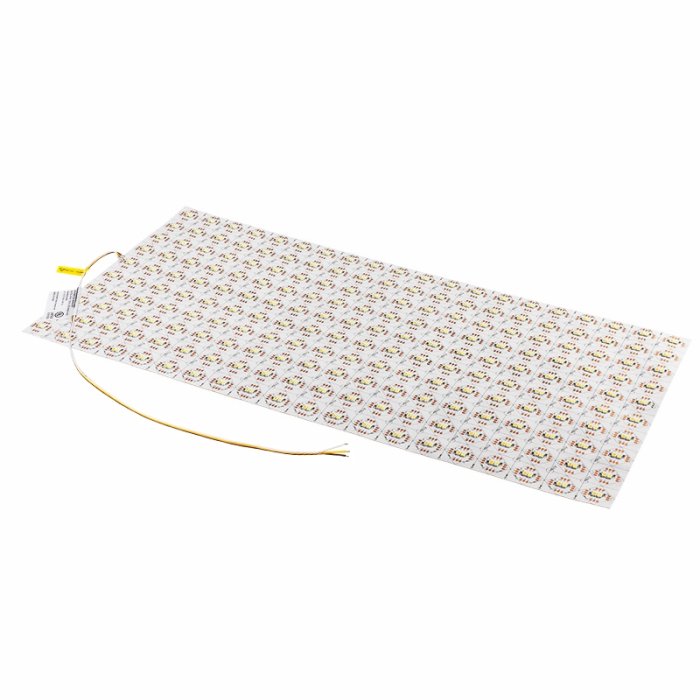

Tunable White LED Back Lighting Sheet - 18.9" x 9.5" - IP20 - 2700K to 6500K - 24V
Part Number:
LLS-H80-C2A-60B01-24V
Manufacturer Part Number:
Discontinued
Similar Products Available Today
Features
- Bendable & cuttable sheet of LEDs customizes to complex shapes
- Tunable white from warm 2700K to cool 6500K
- Adhesive backing peels off for easy application
- 24 VDC
- 5-year warranty, UL Listed
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Most Popular Compatible Products
Overview
The 24V Tunable White LED Back Lighting Sheet is designed for versatile and customized lighting solutions. Measuring 18.9" x 9.5", this sheet is easily trimmed to fit unique shapes, making it ideal for intricate designs and low-clearance installations. The high density of LED chips ensures smooth and even light distribution, even in challenging applications like signs or backlighting. Installation is straightforward with a peel-off 3M™ adhesive backing, and for added security, screws can be used at designated spots. Adjust the color temperature from a warm 2700K to a cool 6500K to suit different environments and preferences. It is backed by a 5-year warranty.
Product Details:
- Dimmable
- Max Run with Class 2 wiring: 1.5 sheets
- Dimensions: 18.9" x 9.5"
- Enclosed fixture rated 36 mm
- IP20 rated for dry conditions
- 50000 hours L70 lifespan
- 24 VDC
- UL Listed
- 5-year warranty
Documents
LLS Specification Sheet Dimensional Drawings
Applications:
- Accent Lighting
- Backlighting
- Channel Letters
- Commercial Lighting
- Displays
- Light Boxes
- Offices
- Retail Shops
- Sign Lighting
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Listed label means that product samples have been tested by UL and that the product meets their Standards for Safety requirements.
In order for certain products within controlled categories, such as electrical and electronic devices, to be legally sold in the European Economic Area, they must bear a CE label, which stands for Conformité Européenne (European Conformity). Products with this label meet environmental, health, and safety standards put into place by European legislation.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Certifications/Compliance | CE, UL Listed |
|
Color Temperature
Color Temperature
 Correlated Color Temperature is the hue, or tint of white to expect from a light source and is measured in kelvin. Lower numbers give off a warmer white that is closer to candle light, and is good for relaxed and cozy spaces. Higher numbers give off a cooler white light that will appear more blueish. While values to the middle of the spectrum give off a more neutral or natural white light that is similar to daylight. |
Tunable CCT |
| CRI | 80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
2.5 A |
| Dimensions | 18.9in x 9.5in |
| Dimmable | Yes |
| Dimmer Type | PWM |
| Efficacy | 92 lm/W |
| Enclosed Fixture Rated | Yes |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Non-weatherproof, Suitable for Dry Locations |
| Finish | White |
| Input Connection Type | Pigtail |
|
IP Rating
IP Rating
 |
IP20 |
|
LED Beam Angle
LED Beam Angle
Beam angle is used to express the angular dimension of light emitted from its source. The narrower the beam angle the more focused the light. Comparing two lights with the same lumen output, one with a 30° beam angle and another with a 90° beam angle, the 30° will appear brighter compared to the 90°, while the 90° will illuminate a larger area. Lights with a symmetrical output may have a beam angle expressed with a single value (e.g. W 120° x H 120° will be shown as 120°). Bulbs will typically have a single value expressing the outward beam angle projected at 360° (e.g. 120° is actually 360° x 120°).
|
120° |
| LED Color | Tunable CCT |
| LED Chip Type | 2835 SMD |
| LEDs per Segment | 2 |
| LED Lifetime | 50000 Hours |
|
Max Run (Class 2)
Max Run (Class 2)
The Max Run of an LED strip is dependent on two things, voltage and density. 24 volt strips in most instances will give you a longer run than a 12 volt strip. However the LED density of the strip will have an effect on the maximum run. If your install needs to extend beyond a strips Max Run additional power feeds can be run back to your power supply.   |
1.5 Sheets |
| Operating Voltage | 24 VDC |
| Segment Size | 0.95 in. x 0.95 in. (24 mm x 24 mm) |
| Wattage | 60 Watts |
