150W UFO LED High Bay Light - Sensor Ready - Up to 23,000 Lumens - 400W MH Equivalent - Optional Reflector - 4000K / 5000K
Part Number:
UDSR2-x150-BT2BH
Manufacturer Part Number:
$69.99
ea.
Was
In Stock
Similar Products Available Today
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Built-in sensor-ready port for installation of compatible motion sensor
- Optional Networked Lighting Controls (NLC)
- 400W metal-halide equivalent
- DLC 5.1 Premium
See our full selection of UDSR2 series UFO high bay lights.
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Frequently Bought Together
Total Price:
Loading...
Most Popular Compatible Products
Overview

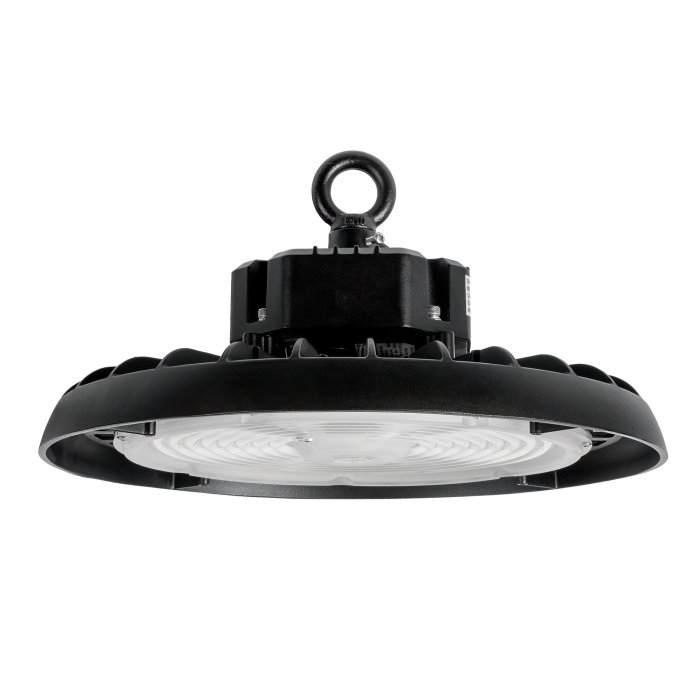

This 150W UFO LED High Bay Light comes equipped with a built-in sensor socket, allowing for quick and easy motion sensor installation. Delivering up to 23,000 lumens with a 90° beam angle, it serves as an energy-efficient replacement for 400W metal-halide fixtures, making it ideal for factories, warehouses, and other high-ceiling environments. Rated IP65 for water resistance, it’s suitable for use in wet locations. Installation is simple with the integrated eye bolt and safety cable. Each unit features a durable, die-cast aluminum housing, a corrosion-resistant black powder-coated finish, and a clear polycarbonate lens. An optional reflector is available to minimize glare and shadows while focusing light downward onto shelving and workspaces. Upgrade these UFO lights with the optional Keilton® PIR motion sensor or wireless wall switch with remote featuring advanced Networked Lighting Controls (NLC).
Product Details:
- Die-cast aluminum housing with black finish
- Clear polycarbonate lens
- IP65 waterproof, suitable for wet locations
- 0-10V Dimmable
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
Documents
UDSR2 User Manual
UDSR2-40K150-BT2BH IES File Dimensional Drawings
Applications:
- Auditoriums
- Cafeterias
- Commercial Buildings
- Distribution Centers
- Gymnasiums
- Manufacturing Plants
- Retail Applications
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
NLC
NLC - This product meets the Design Lights Consortium (DLC) requirements for interior and exterior networked lighting control (NLC) systems. For more information, see the NLC Technical Requirements on the DLC site.
Specifications
| Ambient Operating Temperature | -30 to 50 °C (-22 to 122 °F) |
|---|---|
| Beam Angle | 90° |
| Brand | Super Bright LEDs |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
1.4 A @ 120 VAC, 600 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
|
Environmental Rating
Environmental Rating
Suitable for Dry Locations This marking indicates that you can use the light or component in a location not normally subject to dampness. This may include locations exposed to temporary dampness, such as a building under construction, provided that ventilation is adequate to prevent moisture accumulation. Use these fixtures in living rooms, bedrooms, offices, hallways, and similar areas. The marking may be "SUITABLE FOR DAMP LOCATIONS" or "DRY LOCATIONS ONLY."Suitable for Damp Locations Fixtures marked “SUITABLE FOR DAMP LOCATIONS” or “SUITABLE FOR WET LOCATIONS” can be installed in damp locations. A damp location is an exterior or interior location regularly or occasionally subject to moisture condensation on or around electrical equipment. It includes partially protected places such as covered patios and porches. Damp locations include any regularly muggy or humid area, such as above a kitchen sink or stove, and appropriately vented bathrooms near the tub or shower.Suitable for Wet Locations Fixtures and components marked "SUITABLE FOR WET LOCATIONS" can be installed in wet or damp locations. A wet location is anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. A light marked "SUITABLE FOR WET LOCATIONS" may have additional markings that tell where and at what height it can be safely mounted. Uncovered outdoor areas like decks, gazebos, walls, and typical landscape lighting sites all fall under the heading of wet locations. |
Suitable for Wet Locations, Waterproof |
| Equivalency | 400 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | Pigtail |
| Integrated Surge Protection | 6 kV (L-N), 6 kV (L/N-PE) |
|
IP Rating
IP Rating
 |
IP65 |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Polycarbonate |
| Microwave Motion Sensor | Optional |
| Operating Voltage | 120-277 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Warranty | 5 Year |
| Wattage | 150 Watts |
| Wire Gauge | 18 AWG (L/N/G), 22 AWG (dimming) |
| Part NO |
CCT
CCT
 |
DLC Product ID | Efficacy | LED Color | Lumens | Product Weight |
|---|---|---|---|---|---|---|
| UDSR2-40K150-BT2BH | 4000K | S-YJY7JD | 147 lm/W | Natural White | 21900 Lumens | 5.0 lb (2.3 kg) |
| UDSR2-40K150-BT2BH-PR | 4000K | S-YJY7JD | 147 lm/W | Natural White | 21900 Lumens | 6.2 lb (2.8 kg) |
| UDSR2-50K150-BT2BH | 5000K | S-FWNTD0 | 153 lm/W | Cool White | 23000 Lumens | 5.0 lb (2.3 kg) |
| UDSR2-50K150-BT2BH-PR | 5000K | S-FWNTD0 | 153 lm/W | Cool White | 23000 Lumens | 6.2 lb (2.8 kg) |
