LED UFO High Bay - 80 Watt - Slim - 9,200 Lumens - 250 Watt Metal Halide Equivalent - 5000K - Single / 4-Pack
Part Number:
UHBC-50K80-BLDOB-x
Manufacturer Part Number:
Starting at
$34.99
ea.
Starting at
Was
Features
- 250W metal halide equivalent
- Integrated driver– no external driver needed
- 5-15P Plug for easy installation
- Available in 4-packs
- Mounting hook included
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview

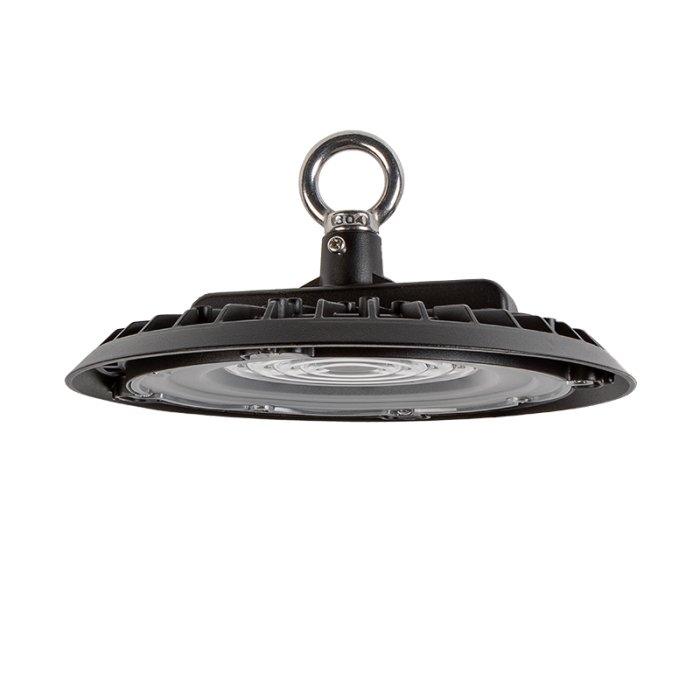

The UFO LED high bay with an integrated driver is designed to replace round metal halide high bays and lower maintenance and energy costs. The built-in driver design eliminates the need for an external driver, making the fixture more compact. The UFO high bay has an economical design and commercial-grade operation, delivering 9,200 lumens at 80W. Easily install using the 3-prong electrical plug. When installing in wet/damp areas, a GFCI outlet is required. Ideal for pole barns, garages, and workspaces.
Product Details:
- Die-cast aluminum housing; polycarbonate lens
- IP65 waterproof construction
- 6kV surge protection
- Hook mount using the included stainless steel eye bolt
- 120 VAC
- Certified by UL
- 3-year warranty
Documents
UHBC Specification Sheet
UHBC-50K80-BLDOB IES File Applications:
- Garages
- Gymnasiums
- Pole Barns
- Supermarkets
- Warehouses
- Workshops
Super Bright LEDs, Inc. offers a 3-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
Need help?
Use our Lighting Layout Tool to see how this product illuminates your space.
Specifications
| Ambient Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
|---|---|
| Beam Angle | 110° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
5000K |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL |
|
CRI
CRI
|
80+ |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
670 mA |
| Dimmable | No |
| Efficacy | 115 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 250 Watt Metal Halide |
| Finish | Black |
| Input Connection Type | 5-15P Plug |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Cool White |
| Rated Life (L70) | 25000 Hours |
| Lumens | 9200 Lumens |
| Microwave Motion Sensor | None |
| Operating Voltage | 120 VAC |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing, Polycarbonate Lens |
| Product Weight | 1.8 lb (0.8 kg) |
| UL File Number | E366643 |
| Warranty | 3 Year |
| Wattage | 80 Watts |
