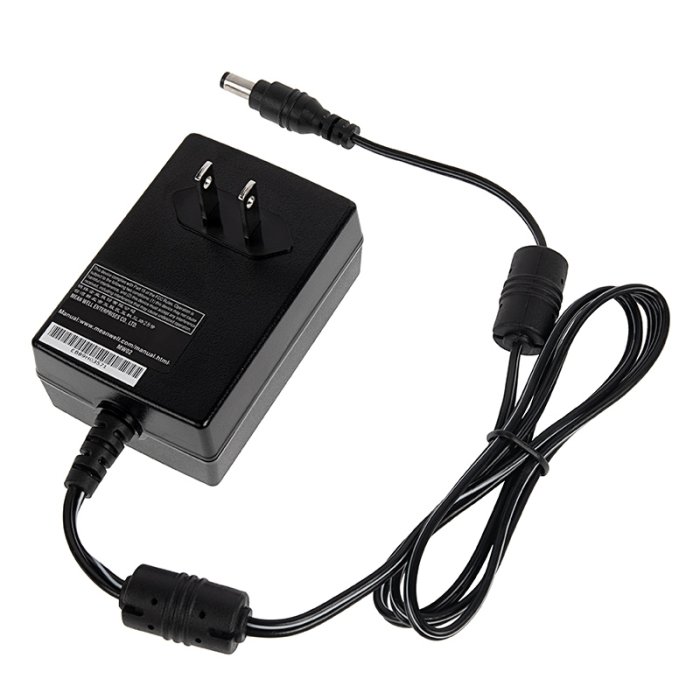

Wall-Mounted AC Adapter - 5 VDC Power Supply - 21W
| Quantity | |
|---|---|
Features
- Mean Well Class II power supply
- Universal AC input; 5 VDC output
- Protected against short circuit, overload, and over voltage
- Fully enclosed plastic case
- UL Listed, 3 year warranty
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Overview
- Class II; no FG
- IP20 rated for dry locations
- UL Listed
- 3 year warranty
GST36U05-P1J Specification Sheet
Class II
Class II power supplies must follow the International Electrotechnical Commission IEC 61439-1 design. This code details that Class II power supplies must have two layers of insulation between the user and the internal current-carrying components to protect the user from electrical shock. The initial layer is "basic" insulation. The second double layer is a reinforcement layer that eliminates the need for a protective earth connection (earthing) or a ground connection since the power supply is grounded within the product's casing.
Specifications
| Ambient Operating Temperature Range | -30~+70 °C (-22~+158 °F) |
|---|---|
| Brand | Mean Well |
| Built-in PFC Function | No |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Class II, FCC, UL Listed |
| Dimmable | No |
|
Environmental Rating
Environmental Rating
|
Non-weatherproof, Suitable for Dry Locations |
| Input Frequency Range | 50 - 60 Hz |
| Input Connection Type | 5.5 mm x 2.1 mm DC Barrel |
| Input Voltage | 120 VAC |
|
IP Rating
IP Rating
|
IP20 |
| Output Connection Type | 5.5 mm x 2.1 mm DC Barrel |
| Output Current | 4300 mA |
|
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
20 Watts |
| Output Voltage | 5 VDC |
| Warranty | 3 Year |
| Wire Gauge | 16 AWG |
