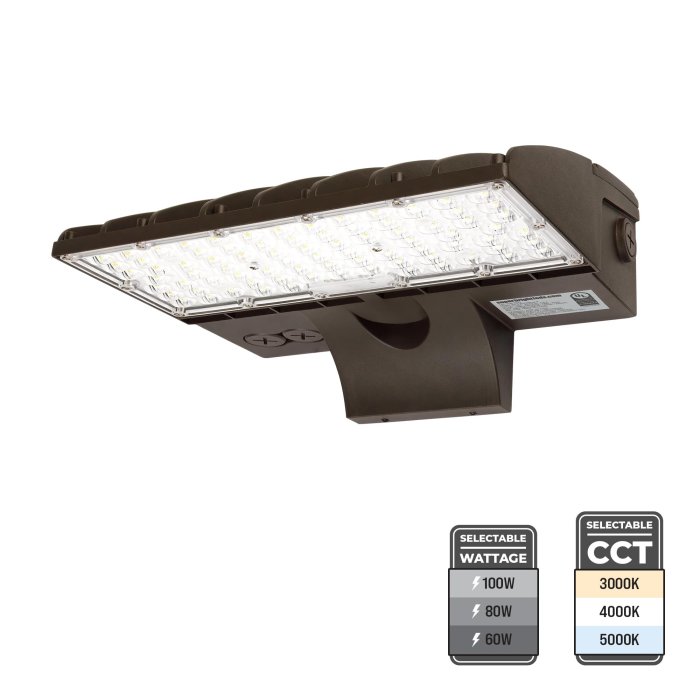

Full Cutoff LED Wall Pack - Selectable CCT and Wattage - Replaces up to 400W MH - Bypassable Photocell - Up to 13,500 Lumens
Part Number:
WP9-SW3B100S-P
Manufacturer Part Number:
$164.99
ea.
Was
In Stock
Austin
Account Manager
Empower Your Business
Exclusive benefits & tailored support await you.
Sign up for a Commercial Account today!
Features
- Selectable Wattage: 60W, 80W, 100W
- Selectable CCT: 3000K, 4000K, 5000K
- Integrated, bypassable dusk-to-dawn photocell for enhanced control
- Type III light distribution for wide, even coverage in outdoor spaces
In-House Test Lab
Each of our products undergoes rigorous testing in our in-house test lab to verify quality and specifications.
Hassle-Free Returns & Exchanges
Industry-Leading 45-Day Return & 90-Day Exchange Policies*
Free Lighting Layout Consultation
If you're looking for a customized, energy-efficient lighting layout, our industrial & commercial lighting experts can provide an assessment tailored to your floorplan.
Related Products
Overview
The Full Cutoff LED Wall Pack offers a sleek, modern solution to exterior lighting, designed to replace up to 400W metal-halide fixtures with greater efficiency. Featuring selectable CCT and wattage, it allows users to customize color temperature and power output with simple switches beneath the front panel. An integrated dusk-to-dawn photocell can be bypassed, providing flexibility for continuous operation. Constructed with a durable die-cast aluminum housing with a corrosion-resistant finish and a clear polycarbonate lens, this wall pack ensures long-lasting performance. Its Type III light distribution delivers broad, even illumination, making it perfect for parking lots, building exteriors, and garages.
Product Details:
- Aluminum housing with bronze finish
- Clear polycarbonate lens
- IP65 waterproof, suitable for wet locations
- 100° x 85° beam angle
- 0-10V Dimmable
- 120-277 VAC
- Certified by UL
- DLC 5.1 Premium
- 5-year warranty
Documents
WP9 User Manual
WP9-SW3B100S-P 100W 4K IES File Applications:
- Commercial Lighting
- Gas Stations
- Industrial Facilities
- Parking Garages
- Parking Lots
- Residential Complexes
- Security Lighting
- Warehouses
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
This product has been certified by Underwriter Laboratories to their engineering and safety standards.
This product meets higher lumen and efficacy standards than are required for a normal DLC® classification. This classification also requires submission of a driver IN-SITU temperature measurement test (ISTMT) along with information regarding integral controls.
Specifications
| Ambient Operating Temperature | -40 to 45 °C (-40 to 113 °F) |
|---|---|
| Beam Angle | 100° x 85° |
| Brand | Super Bright LEDs |
|
CCT
CCT
|
3000K, 4000K, 5000K, Selectable CCT |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact and energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else that may be involved confidence that the product is safe and will work well in their application. The most common UL and ETL certifications relate to safety and installation, although they do also provide some sanitation-related certifications (using NSF standards). Another common certification body is the DLC, which specializes in certifying the performance of a light—mainly related to environmental impact and electrical efficiency. Learn more about different certification types here . |
Certified by UL, DLC Premium |
|
Current Draw
Current Draw
Current draw is calculated using the following formula: W/V = A, where W = the amount of power your light needs (wattage), V is the electrical system voltage (e.g., 120V AC), and A = amps. An ampere or amp (A) is the standard unit for electrical current. A milliamp (mA) equals one-thousandth of an amp, or 1000 mA is equivalent to 1 A.
Choosing LED fixtures with the correct amperage ensures safe and proper operation, preventing damage or injury. We recommend having all electrical components and fixtures installed by a certified professional electrician or lighting technician in compliance with all relevant standards and regulations. |
550/740/925 mA @ 120 VAC, 240/320/400 mA @ 277 VAC |
| Dimmable | Yes |
|
Dimmer Type
Dimmer Type
|
0-10V |
| Efficacy | 135 lm/W |
|
Environmental Rating
Environmental Rating
|
Suitable for Wet Locations, Waterproof |
| Equivalency | 400 Watt Metal Halide |
| Finish | Bronze |
| Integrated Surge Protection | 4 kV (L-N), 4 kV (L/N-G) |
|
IP Rating
IP Rating
|
IP65 |
| LED Color | Warm White, Natural White, Cool White, Selectable CCT |
| Rated Life (L70) | 50000 Hours |
| Lens Type | Polycarbonate |
| Lumens | 8100 Lumens, 10800 Lumens, 13500 Lumens |
| Mount Type | Junction Box, Surface Mount |
| Operating Voltage | 120-277 VAC |
|
Photocell
Photocell
What is a Photocell and How Does It Work?When an LED light is equipped with a photocell, the light will turn on and off automatically based on the available ambient light. Their unique functionality makes them ideal for outdoor area lighting specifically.Photocells are variable resistors that change the resistance in an electrical circuit depending on the amount of light present where they are mounted. Because of this, they must be mounted in exposed areas where they receive adequate light to function. Photocells, or photocontrols, come in a variety of shapes and sizes and can be integrated into a luminaire or be an added accessory depending on the light. Can a Photocell Be Bypassed?Some lights allow for a photocell to be bypassed as needed. When the photocell is bypassed, it allows for the luminaire to remain on constantly or be controlled by an existing switch or timer. Depending on the type of photocell and how it is installed in the fixture, it may be bypassable using a shorting cap, a slide or DIP switch, or by unplugging the photocell. Consult the user’s manual of the light to confirm which option(s) may be applicable and how to implement them safely. Always use caution and turn off supply power before working on wiring of any type.Shorting CapPhotocells on many commercial applications like parking lot and area lighting applications are mounted externally with a twist-lock socket or adapter. Swapping this for a shorting cap simply closes the circuit on your LED light fixture, which keeps your light in an always-on state. This allows it to be controlled externally as well if a central photocell or switch system is being utilized.DIP Switch or Slide SwitchWhile DIP switches and standard slide switches function differently in most cases, when integrated into the photocontrol system of a light they perform the same function. Switches like these are common on canopy and dusk-to-dawn barn lights. These types of switches allow you to toggle the photocell sensor on or off to fit your needs without any rewiring or replacing parts.Disconnect the WiringSome photocell designs, such as those commonly found in wall packs, allow the operator to simply unplug the photocell to allow the light to work in an always-on state or be controlled by an external switch. |
Includes Photocell |
| Power Factor | ≥0.9 |
| Product Materials | Aluminum Housing |
| Product Weight | 6.8 lb (3.1 kg) |
| Warranty | 5 Year |
| Wattage | 60 Watts, 80 Watts, 100 Watts |
