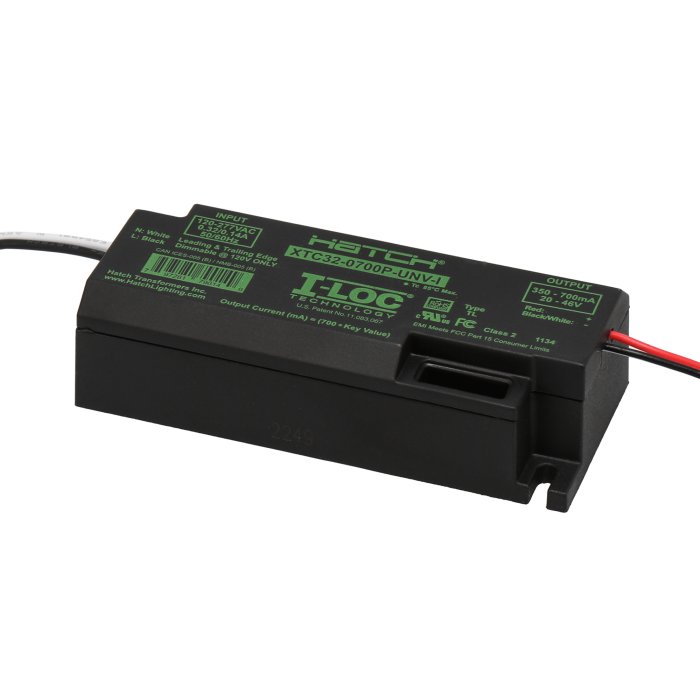

Hatch Constant Current LED Driver I-LOC Key Programmable - XTC Case - 20-46 VDC - Up to 32W - Up to 700mA
Part Number:
XTC32-0700P-UNV-I-x
Manufacturer Part Number:
Starting at
$37.99
ea.
Starting at
Was
In Stock
Features
- Choose from 21 Current Values from 50-100%
- Class 2 Power Supply
- Output current and power programmable with I-LOC keys
- 20-46 VDC output
- Forward/reverse phase dimming
Related Products
Overview
Hatch's I-LOC Key Programmable LED Drivers make adjusting power and current levels easy without extra tools or software. We will pre-install the I-LOC key of your choosing to set the output current to one of 21 values between 50 and 100% of maximum current. Simply choose a driver and key assembly based on your power and current needs. These drivers support forward and reverse phase dimming, ensuring flicker-free lighting adjustments, and can also work for non-dimming applications.
Designed for durability, the polycarbonate XTC housing protects the internal components, and the side lead pigtails allow for flush mounting and easy wiring. Built-in protections guard against overload, overvoltage, overheating, and short circuits, ensuring reliable performance. Ideal for applications such as LED downlights, linear lights, area lights, and bollards.
Designed for durability, the polycarbonate XTC housing protects the internal components, and the side lead pigtails allow for flush mounting and easy wiring. Built-in protections guard against overload, overvoltage, overheating, and short circuits, ensuring reliable performance. Ideal for applications such as LED downlights, linear lights, area lights, and bollards.
Product Details:
- XTC polycarbonate housing with side lead 6” pigtails
- Safeguarded from short circuits, overvoltage, over temperature, and output overload
- Suitable for dry and damp locations
- UL Recognized
- 5-year warranty
Documents
I-LOC XTC-Case Specification Sheet Applications:
- Commercial Lighting
- Factory Automation Equipment
- Industrial Control Systems
- Industrial Lighting
- Security Systems
- Sign Lighting
- Stage & Theaters
- Wall Packs
Super Bright LEDs, Inc. offers a 5-year warranty to protect against manufacturer defects and malfunctions. If you experience failure of an LED or other component not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product within the warranty period. In the case the exact product is no longer available, a gift card for the value of the original purchase price will be provided. Super Bright LEDs administers all warranty claims in-house. Read More
Underwriters Laboratories (UL) LLC is an independent testing agency that works to verify product safety and quality. A UL-Recognized label ensures that a product component, such as a power supply or LED light strip, has been tested and verified as safe to use in a UL-Listed product. UL-Listed product samples are tested by UL and meet their Standards for Safety requirements.
Class 2
Class 2 power supplies must meet the National Electric Code (NEC) and Underwriters Laboratories (UL 1310) standards for wiring requirements and power limitations of AC/DC power supplies to minimize shock or fire risks. All Class 2 power supplies must meet the NEC overcurrent protection and wiring sizing regulations. They must be constructed with ‘In-Wall’ rated wiring for permanent installation inside walls or floors, where they may be surrounded by insulation. These wiring requirements help prevent cracking or melting of the wire, which could cause a fire hazard. These power supplies must have a maximum power capacity of 100 VA and cannot exceed a 30 VAC or 60 VDC output, minimizing the risk of electric shock or overheating from excessive currents.
Products with a Federal Communications Commission (FCC) label meet all requirements and rules set forth by the FCC and won't cause interference with other electronic devices. According to FCC's website, "The Federal Communications Commission regulates interstate and international communications by radio, television, wire, satellite and cable in all 50 states, the District of Columbia and U.S. territories." Products that generate radio frequency (RF) energy, such as RF remote controls and certain LED light bulbs, are tested to ensure that they are within the FCC's guidelines and limits and do not cause harmful interference.
Specifications
| Ambient Operating Temperature Range | -30 to 85 °C (-22 to 185 °F) |
|---|---|
| Brand | Hatch Lighting |
|
Certifications/Compliance
Certifications/Compliance
Standards and certifications comprise a vast number of companies and compliances that serve specific purposes—primarily addressing safety, environmental impact, energy efficiency, and sanitation. They are divided into categories for each product type and certification type to allow for very specific qualifications related to each product. When this system is being used as intended, it gives consumers, installers, suppliers, and anyone else who may be involved confidence that the product is safe and will work well in their application. UL and ETL certifications relate to safety and installation and are the most common for power supplies. |
Class 2, FCC, UL Recognized |
| Dimmable | Yes |
|
Dimming Control
Dimming Control
TRIAC Dimming: This is the most commonly recognized dimming type, with TRIAC Dimmers found in most Home Centers and hardware stores. TRIAC (TRIode for Alternating Current) dimmers operate by modifying the voltage waveform, reducing the amount of power input to the device being controlled. Reducing the input power will result in a corresponding reduction in a power supply's output voltage/current or a decrease in the lumen output of a light fixture. TRIAC dimmers come in two variations: Forward Phase and Reverse Phase
0-10V Dimming: This type of dimming control is most commonly found in commercial applications. It works by varying a voltage from 0 to 10 VDC on dedicated dimming wires. The output of a power supply or light fixture is proportional to the voltage applied. Pulse-Width Modulation (PWM) Dimming: This dimming control adjusts output by rapidly turning the output on and off at a fixed frequency. The proportion of on-time to total time sets the dimming percentage. Potentiometer Dimming: Potentiometer dimming varies the output using a variable resistor, or potentiometer, to set the dimming level. |
TRIAC (ELV) |
|
Environmental Rating
Environmental Rating
 |
Suitable for Damp Locations |
| Input Frequency Range | 50 Hz, 60 Hz |
| Input Connection Type | Pigtail |
| Input Voltage | 120-277 VAC |
| Max Input Current | 320 mA @ 120 VAC, 140 mA @ 277 VAC |
| Material | Polycarbonate Housing |
| Number of Outputs | 1 |
| Output Connection Type | Pigtail |
|
Output Power
Output Power
A power supply's power consumption is measured in watts and refers to the maximum amount of power it is capable of delivering. For best results, choose a power supply that offers a minimum of 20% wattage overhead for your application. Wattage overhead ensures that your project will function correctly, extends the life of the power supply, and offers greater design flexibility by allowing for project expansion. |
32 Watts |
| Output Voltage | 20-46 VDC |
| Surge Protection | 2.5 kV |
| Warranty | 5 Year |
| Wire Gauge | 18 AWG (L/N), 22 AWG (Output) |
| Part NO | Output Current |
|---|---|
| XTC32-0700P-UNV-I-350 | 350 mA |
| XTC32-0700P-UNV-I-371 | 371 mA |
| XTC32-0700P-UNV-I-441 | 441 mA |
| XTC32-0700P-UNV-I-455 | 455 mA |
| XTC32-0700P-UNV-I-476 | 476 mA |
| XTC32-0700P-UNV-I-525 | 525 mA |
| XTC32-0700P-UNV-I-546 | 546 mA |
| XTC32-0700P-UNV-I-616 | 616 mA |
| XTC32-0700P-UNV-I-630 | 630 mA |
| XTC32-0700P-UNV-I-700 | 700 mA |
| XTC32-0700P-UNV-I-385 | 385 mA |
| XTC32-0700P-UNV-I-406 | 406 mA |
| XTC32-0700P-UNV-I-420 | 420 mA |
| XTC32-0700P-UNV-I-490 | 490 mA |
| XTC32-0700P-UNV-I-511 | 511 mA |
| XTC32-0700P-UNV-I-560 | 560 mA |
| XTC32-0700P-UNV-I-581 | 581 mA |
| XTC32-0700P-UNV-I-595 | 595 mA |
| XTC32-0700P-UNV-I-651 | 651 mA |
| XTC32-0700P-UNV-I-665 | 665 mA |
| XTC32-0700P-UNV-I-686 | 686 mA |
